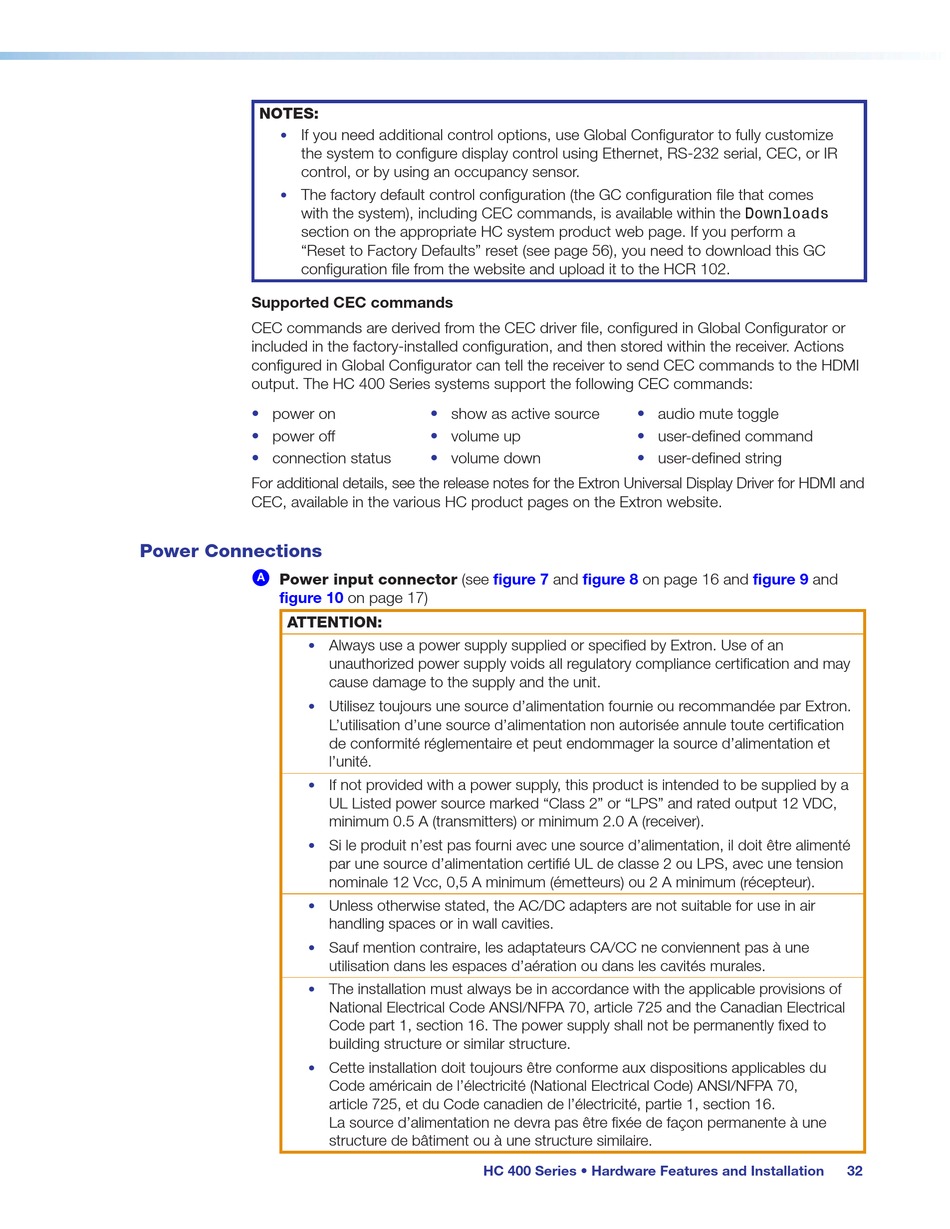

NOTES:
If you need additional control options, use Global Configurator to fully customize
•
the system to configure display control using Ethernet, RS-232 serial, CEC, or IR
control, or by using an occupancy sensor.
The factory default control configuration (the GC configuration file that comes
•
with the system), including CEC commands, is available within the Downloads
section on the appropriate HC system product web page. If you perform a
"Reset to Factory Defaults" reset (see page 56), you need to download this GC
configuration file from the website and upload it to the HCR 102.
Supported CEC commands
CEC commands are derived from the CEC driver file, configured in Global Configurator or
included in the factory-installed configuration, and then stored within the receiver. Actions
configured in Global Configurator can tell the receiver to send CEC commands to the HDMI
output. The HC 400 Series systems support the following CEC commands:
• power on
• power off
• connection status
For additional details, see the release notes for the Extron Universal Display Driver for HDMI and
CEC, available in the various HC product pages on the Extron website.

Power Connections

A Power input connector (see
figure 10
ATTENTION:
•
•
•
•
•
•
•
•
• show as active source
• volume up
• volume down
figure 7
on page 17)
Always use a power supply supplied or specified by Extron. Use of an
unauthorized power supply voids all regulatory compliance certification and may
cause damage to the supply and the unit.
Utilisez toujours une source d'alimentation fournie ou recommandée par Extron.
L'utilisation d'une source d'alimentation non autorisée annule toute certification
de conformité réglementaire et peut endommager la source d'alimentation et
l'unité.
If not provided with a power supply, this product is intended to be supplied by a
UL Listed power source marked "Class 2" or "LPS" and rated output 12 VDC,
minimum 0.5 A (transmitters) or minimum 2.0 A (receiver).
Si le produit n'est pas fourni avec une source d'alimentation, il doit être alimenté
par une source d'alimentation certifié UL de classe 2 ou LPS, avec une tension
nominale 12 Vcc, 0,5 A minimum ( émetteurs ) ou 2 A minimum ( récepteur ).
Unless otherwise stated, the AC/DC adapters are not suitable for use in air
handling spaces or in wall cavities.
Sauf mention contraire, les adaptateurs CA/CC ne conviennent pas à une
utilisation dans les espaces d'aération ou dans les cavités murales.
The installation must always be in accordance with the applicable provisions of
National Electrical Code ANSI/NFPA 70, article 725 and the Canadian Electrical
Code part 1, section 16. The power supply shall not be permanently fixed to
building structure or similar structure.
Cette installation doit toujours être conforme aux dispositions applicables du
Code américain de l'électricité (National Electrical Code) ANSI/NFPA 70,
article 725, et du Code canadien de l'électricité, partie 1, section 16.
La source d'alimentation ne devra pas être fixée de façon permanente à une
structure de bâtiment ou à une structure similaire.
HC 400 Series • Hardware Features and Installation
• audio mute toggle
• user-defined command
• user-defined string
and figure 8 on page 16 and figure 9 and
