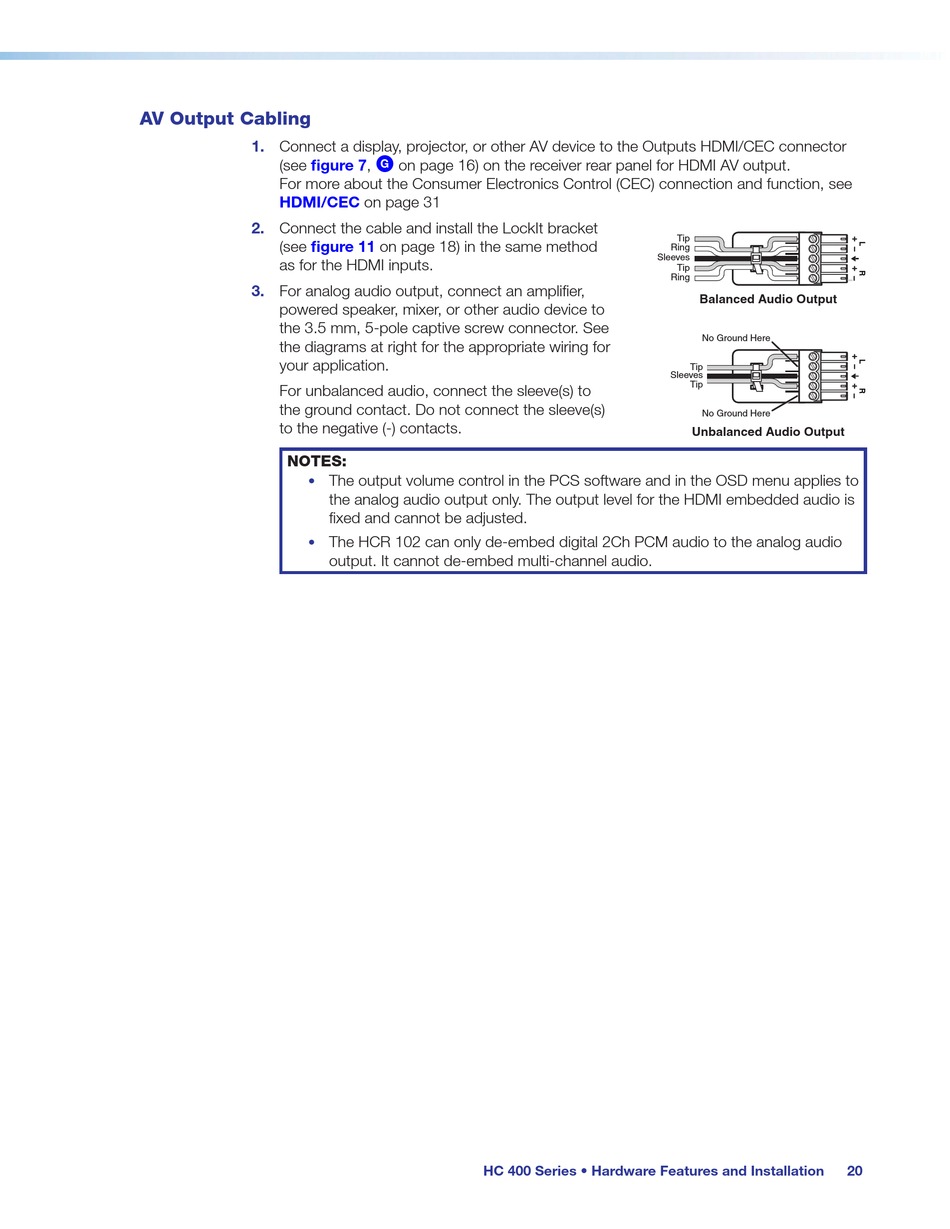

AV Output Cabling

1.
Connect a display, projector, or other AV device to the Outputs HDMI/CEC connector
(see figure
For more about the Consumer Electronics Control (CEC) connection and function, see
HDMI/CEC
2. Connect the cable and install the LockIt bracket
(see figure 11
as for the HDMI inputs.
3. For analog audio output, connect an amplifier,
powered speaker, mixer, or other audio device to
the 3.5 mm, 5-pole captive screw connector. See
the diagrams at right for the appropriate wiring for
your application.
For unbalanced audio, connect the sleeve(s) to
the ground contact. Do not connect the sleeve(s)
to the negative (-) contacts.
NOTES:
•
•
7, G on page 16) on the receiver rear panel for HDMI AV output.
on page 31
on page 18) in the same method
The output volume control in the PCS software and in the OSD menu applies to
the analog audio output only. The output level for the HDMI embedded audio is
fixed and cannot be adjusted.
The HCR 102 can only de-embed digital 2Ch PCM audio to the analog audio
output. It cannot de-embed multi-channel audio.
HC 400 Series • Hardware Features and Installation
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Output
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Audio Output
20
