Communication submenu
Quick Setup Quick Setup
Picture Controls Picture Controls
Input Input
Output Output
Audio Audio
Advanced Advanced
Communications
Communications
Device Info Device Info

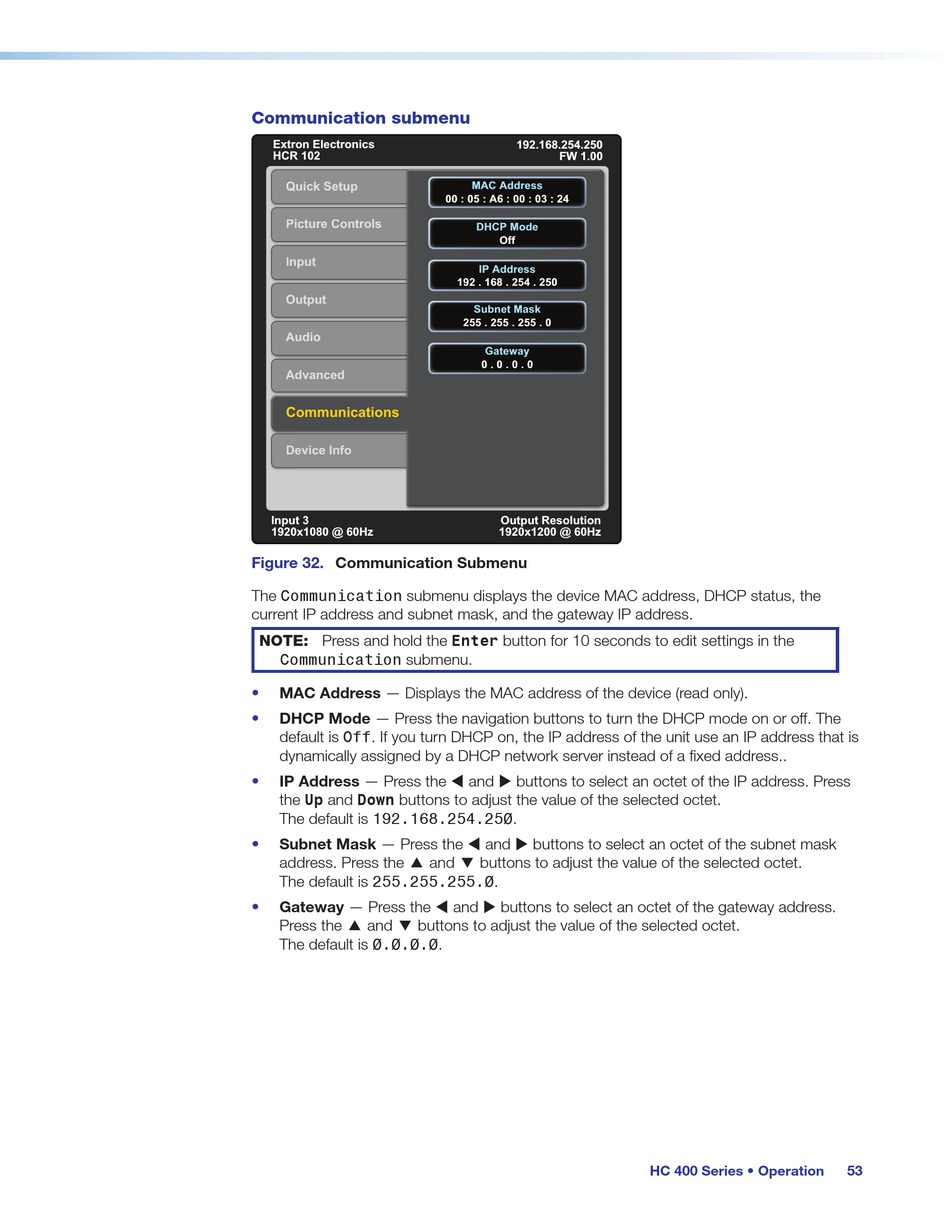

Figure 32. Communication Submenu
The Communication submenu displays the device MAC address, DHCP status, the
current IP address and subnet mask, and the gateway IP address.
NOTE: Press and hold the Enter button for 10 seconds to edit settings in the
Communication submenu.
• MAC Address — Displays the MAC address of the device (read only).
• DHCP Mode — Press the navigation buttons to turn the DHCP mode on or off. The
default is Off. If you turn DHCP on, the IP address of the unit use an IP address that is
dynamically assigned by a DHCP network server instead of a fixed address..
IP Address — Press the  and  buttons to select an octet of the IP address. Press
•
the Up and Down buttons to adjust the value of the selected octet.
The default is 192.168.254.250.
• Subnet Mask — Press the  and  buttons to select an octet of the subnet mask
address. Press the and

The default is 255.255.255.0.
• Gateway — Press the  and  buttons to select an octet of the gateway address.

Press the and buttons to adjust the value of the selected octet.

The default is 0.0.0.0.
MAC Address
00 : 05 : A6 : 00 : 03 : 24
DHCP Mode
Off
IP Address
192 . 168 . 254 . 250
Subnet Mask
255 . 255 . 255 . 0
Gateway
0 . 0 . 0 . 0

buttons to adjust the value of the selected octet.
HC 400 Series • Operation 53
