CC 101P • Installation Guide
Extron CC 101P Campus Communication Panel is a wall plate accessory to the CC 100C Audio Codec and works with the Extron
GlobalViewer Campus Communication Suite (GVCCS) system. It fits in a single opening wall plate.
The front panel has a Call button, an integrated microphone, and a monitoring LED indicator. When the Call button is pressed
and released, the GVCCS operator is notified of an incoming call. The MIC ON LED indicator lights up when the GVCCS operator
is monitoring the room.
The CC 101P has two contact closures, and a mono balanced line level audio output on the rear panel that can be connected to
the CC 100C. A recessed microphone gain potentiometer on the rear panel is used to adjust the microphone gain.
NOTE:
Before installing this device, read the Extron Safety and Regulatory Compliances Guide, available at www.extron.com.
A
MIC ON
B
CALL
C
Extron
D

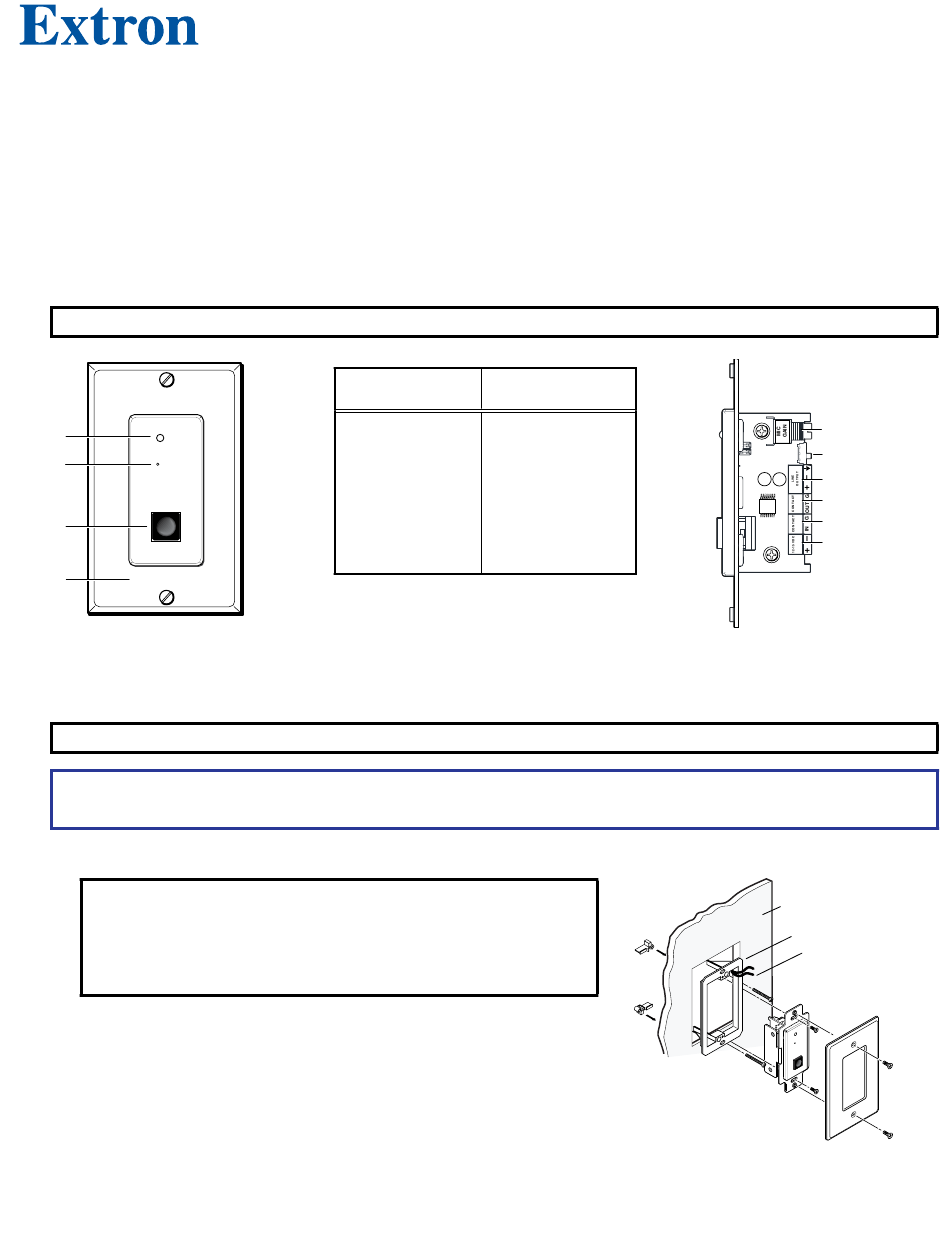

Figure 1. CC 101P Front and Rear Panel Features
Installation and Cabling
NOTE:
The installation of this device must be done in accordance with National Electrical Wiring Codes.
ATTENTION:
Do not install the CC 101P in a fire resistant rated wall or partition assembly.
ATTENTION :
Ne pas installer le CC 101P dans un mur résistant au feu ou une cloison.
1. Using the mud ring or a junction box as a guide, mark the edges and cut out the material within the marked area.
NOTES:
• If installing a junction box, allow enough depth for the wall plate
and cables, with consideration to the cable bend radius. Do not
bend the cables at 90 degrees.
• Conduit and conduit adapters should be used.
2.
Either:
• Insert the mud ring into the opening, rotate the locking arms, and secure
with the supplied screws,
or
• Insert the wall box and secure with nails or screws.
3. Run the power, contact in and contact out cables, and the line out cables
from the CC 100C location, going behind the wall and to the CC 101P
location, then thread the cables through the mud ring or wall box.
Front Panel Rear Panel
Features Connectors
Mic On LED Mic Gain
A E
Microphone Tone switch
B F
C Call button G Line Output
D Faceplate H Contact Out
Contact In
I
J Power
Wall
Mud Ring
M IC
L L
C A
tr o
E x
Extron
CC 101P
Figure 2. Installing the CC 101P in the
Mud Ring
E
F
G
H
I
J
Cabling
Faceplate
O N
n
1
