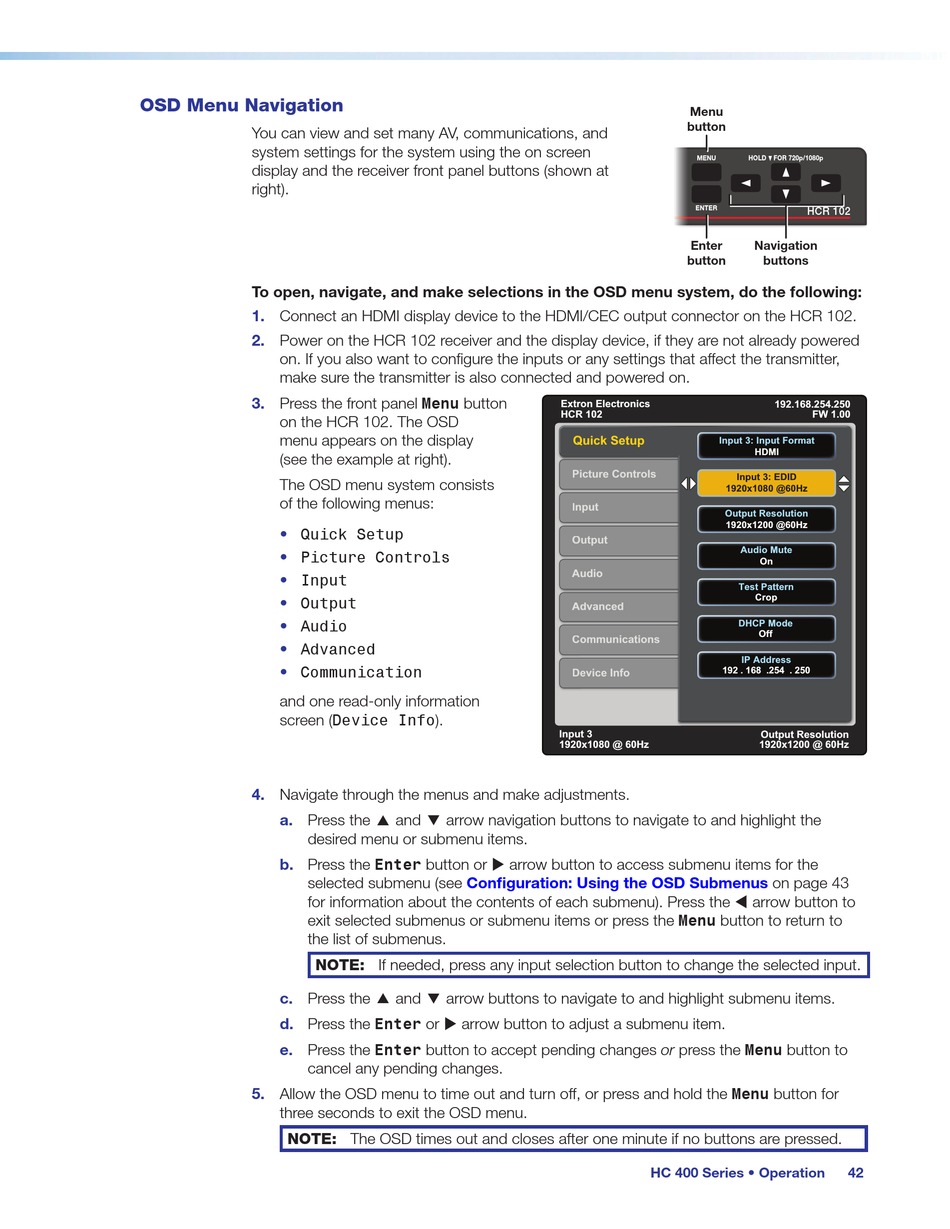

OSD Menu Navigation

You can view and set many AV, communications, and
system settings for the system using the on screen
display and the receiver front panel buttons (shown at
right).
To open, navigate, and make selections in the OSD menu system, do the following:
1. Connect an HDMI display device to the HDMI/CEC output connector on the HCR 102.
2. Power on the HCR 102 receiver and the display device, if they are not already powered
on. If you also want to configure the inputs or any settings that affect the transmitter,
make sure the transmitter is also connected and powered on.
3. Press the front panel Menu button
on the HCR 102. The OSD
menu appears on the display
(see the example at right).
The OSD menu system consists
of the following menus:
•
Quick Setup
•
Picture Controls
• Input
• Output
• Audio
• Advanced
• Communication
and one read-only information
screen (Device Info).
4.
Navigate through the menus and make adjustments.
a. Press the
desired menu or submenu items.
b. Press the Enter button or  arrow button to access submenu items for the
selected submenu (see
for information about the contents of each submenu). Press the  arrow button to
exit selected submenus or submenu items or press the Menu button to return to
the list of submenus.
NOTE: If needed, press any input selection button to change the selected input.
c. Press the
d. Press the Enter or  arrow button to adjust a submenu item.
e. Press the Enter button to accept pending changes or press the Menu button to
cancel any pending changes.
5. Allow the OSD menu to time out and turn off, or press and hold the Menu button for
three seconds to exit the OSD menu.
NOTE: The OSD times out and closes after one minute if no buttons are pressed.

and arrow navigation buttons to navigate to and highlight the

Configuration: Using the OSD Submenus

and arrow buttons to navigate to and highlight submenu items.

Menu
button
MENU
HOLD
ENTER
Enter
button
Quick Setup
Picture Controls Picture Controls
Input Input
Output Output
Audio Audio
Advanced Advanced
Communications Communications
Device Info Device Info
HC 400 Series • Operation
FOR 720p/1080p
HCR 102
Navigation
buttons
on page 43
