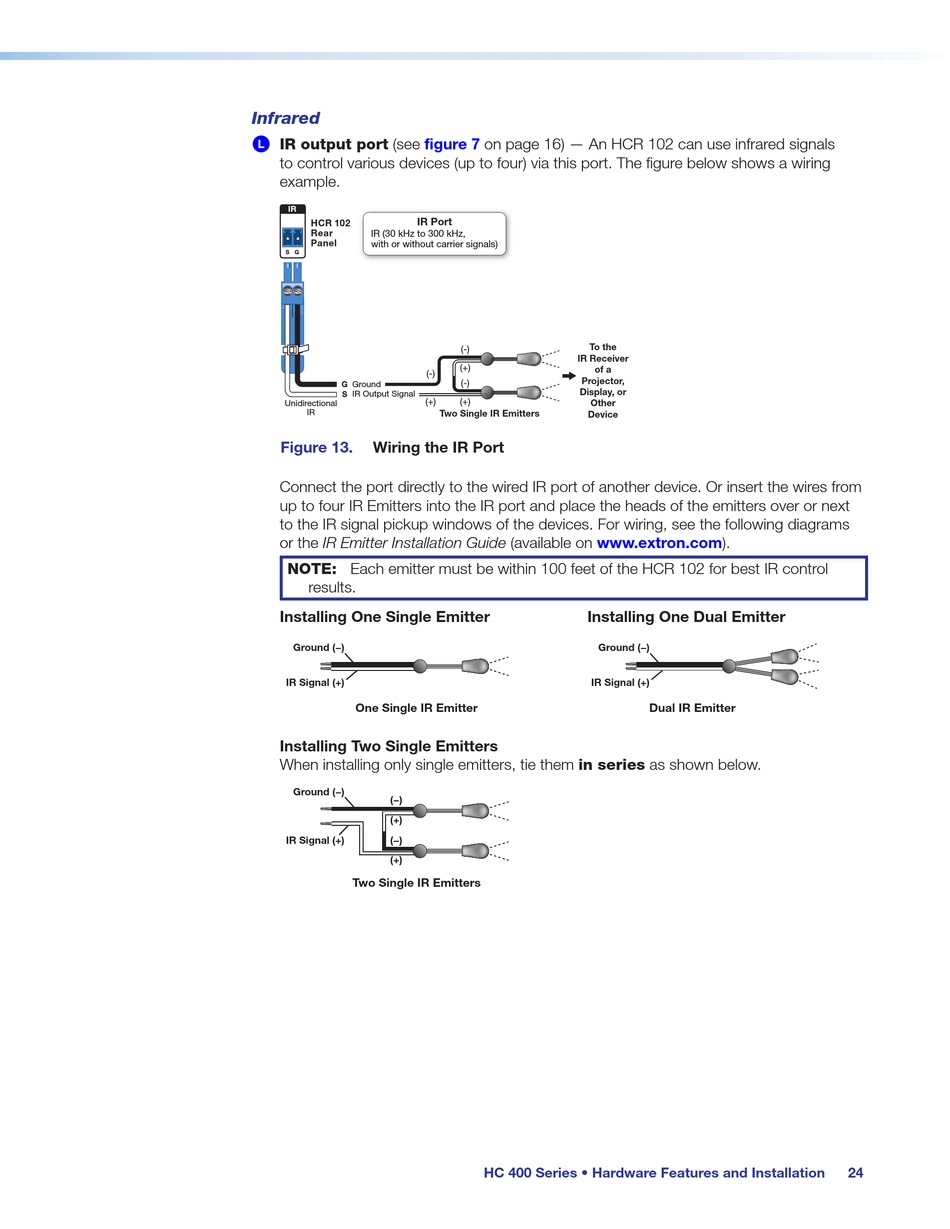

Infrared
IR output port (see
figure 7
L
to control various devices (up to four) via this port. The figure below shows a wiring
example.
IR
IR Port
HCR 102
Rear
IR (30 kHz to 300 kHz,
Panel
with or without carrier signals)
S G
(-)
G
Ground
S
IR Output Signal
(+)
Unidirectional
IR
Figure 13.
Wiring the IR Port
Connect the port directly to the wired IR port of another device. Or insert the wires from
up to four IR Emitters into the IR port and place the heads of the emitters over or next
to the IR signal pickup windows of the devices. For wiring, see the following diagrams
or the IR Emitter Installation Guide (available on www.extron.com).
NOTE: Each emitter must be within 100 feet of the HCR 102 for best IR control
results.
Installing One Single Emitter
Ground (−)
IR Signal (+)
One Single IR Emitter
Installing Two Single Emitters
When installing only single emitters, tie them in series as shown below.
Ground (−)
(−)
(+)
IR Signal (+)
(−)
(+)
Two Single IR Emitters
on page 16) — An HCR 102 can use infrared signals
To the
(-)
IR Receiver
(+)
of a
Projector,
(-)
Display, or
(+)
Other
Two Single IR Emitters
Device
Installing One Dual Emitter
Ground (−)
IR Signal (+)
HC 400 Series • Hardware Features and Installation
Dual IR Emitter
24
