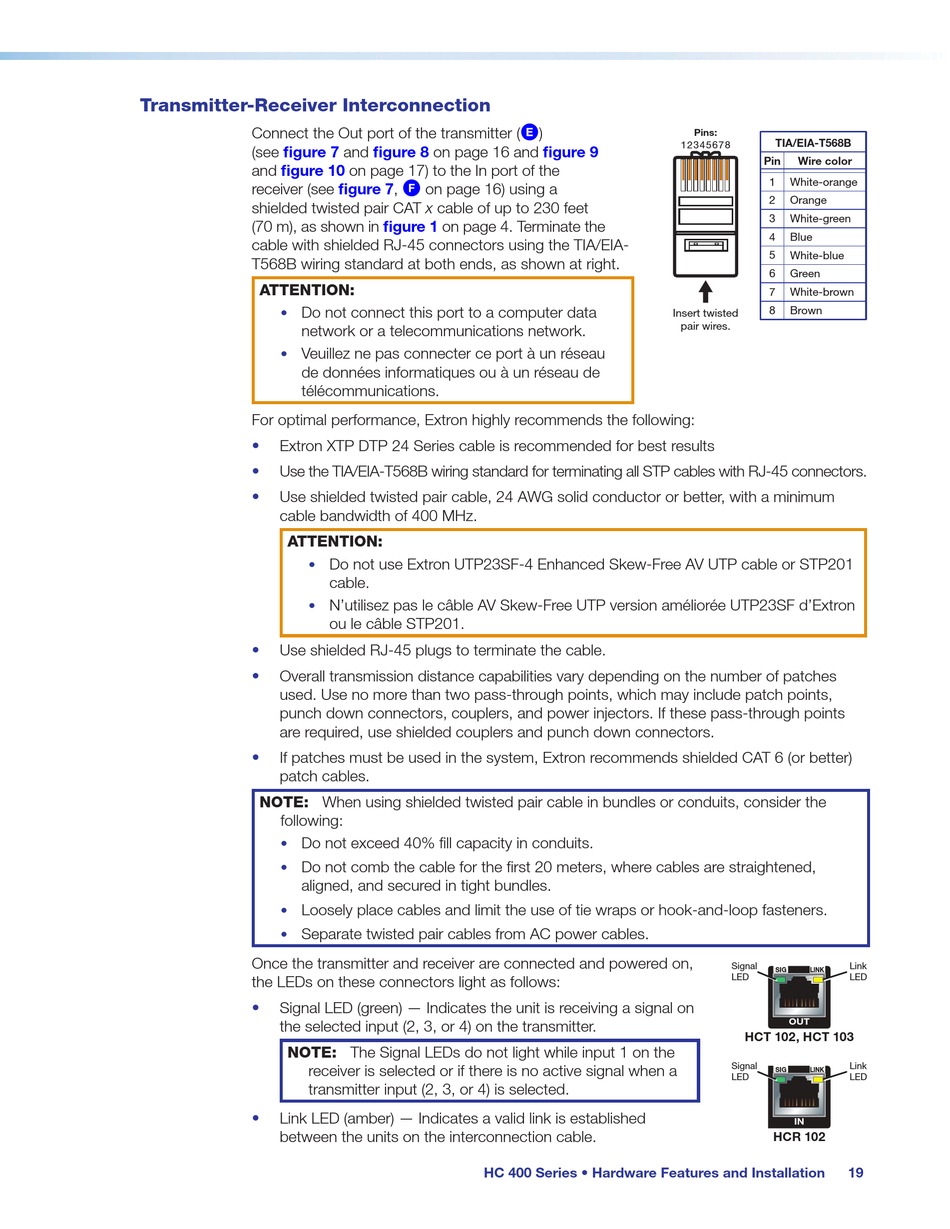

Transmitter-Receiver Interconnection

Connect the Out port of the transmitter (
(see figure 7
and figure 10
receiver (see
shielded twisted pair CAT x cable of up to 230 feet
(70 m), as shown in
cable with shielded RJ-45 connectors using the TIA/EIA-
T568B wiring standard at both ends, as shown at right.
ATTENTION:
Do not connect this port to a computer data
•
network or a telecommunications network.
Veuillez ne pas connecter ce port à un réseau
•
de données informatiques ou à un réseau de
télécommunications.
For optimal performance, Extron highly recommends the following:
• Extron XTP DTP 24 Series cable is recommended for best results
• Use the TIA/EIA-T568B wiring standard for terminating all STP cables with RJ-45 connectors.
• Use shielded twisted pair cable, 24 AWG solid conductor or better, with a minimum
cable bandwidth of 400 MHz.
ATTENTION:
•
•
• Use shielded RJ-45 plugs to terminate the cable.
• Overall transmission distance capabilities vary depending on the number of patches
used. Use no more than two pass-through points, which may include patch points,
punch down connectors, couplers, and power injectors. If these pass-through points
are required, use shielded couplers and punch down connectors.
• If patches must be used in the system, Extron recommends shielded CAT 6 (or better)
patch cables.
NOTE: When using shielded twisted pair cable in bundles or conduits, consider the
following:
Do not exceed 40% fill capacity in conduits.
•
Do not comb the cable for the first 20 meters, where cables are straightened,
•
aligned, and secured in tight bundles.
Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners.
•
Separate twisted pair cables from AC power cables.
•
Once the transmitter and receiver are connected and powered on,
the LEDs on these connectors light as follows:
• Signal LED (green) — Indicates the unit is receiving a signal on
the selected input (2, 3, or 4) on the transmitter.
NOTE: The Signal LEDs do not light while input 1 on the
receiver is selected or if there is no active signal when a
transmitter input (2, 3, or 4) is selected.
• Link LED (amber) — Indicates a valid link is established
between the units on the interconnection cable.
and figure 8 on page 16 and
on page 17) to the In port of the
figure 7, F on page 16) using a
figure 1 on page 4. Terminate the
Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201
cable.
N'utilisez pas le câble AV Skew-Free UTP version améliorée UTP23SF d'Extron
ou le câble STP201.
