11. Troubleshooting

11.1. Diagnostics

11.1.1. I/O Data

On the Diagnostics, I/O data page you can monitor how the data flow between the EtherCAT side and the
EtherNet/IP side, including any configured endian conversions.

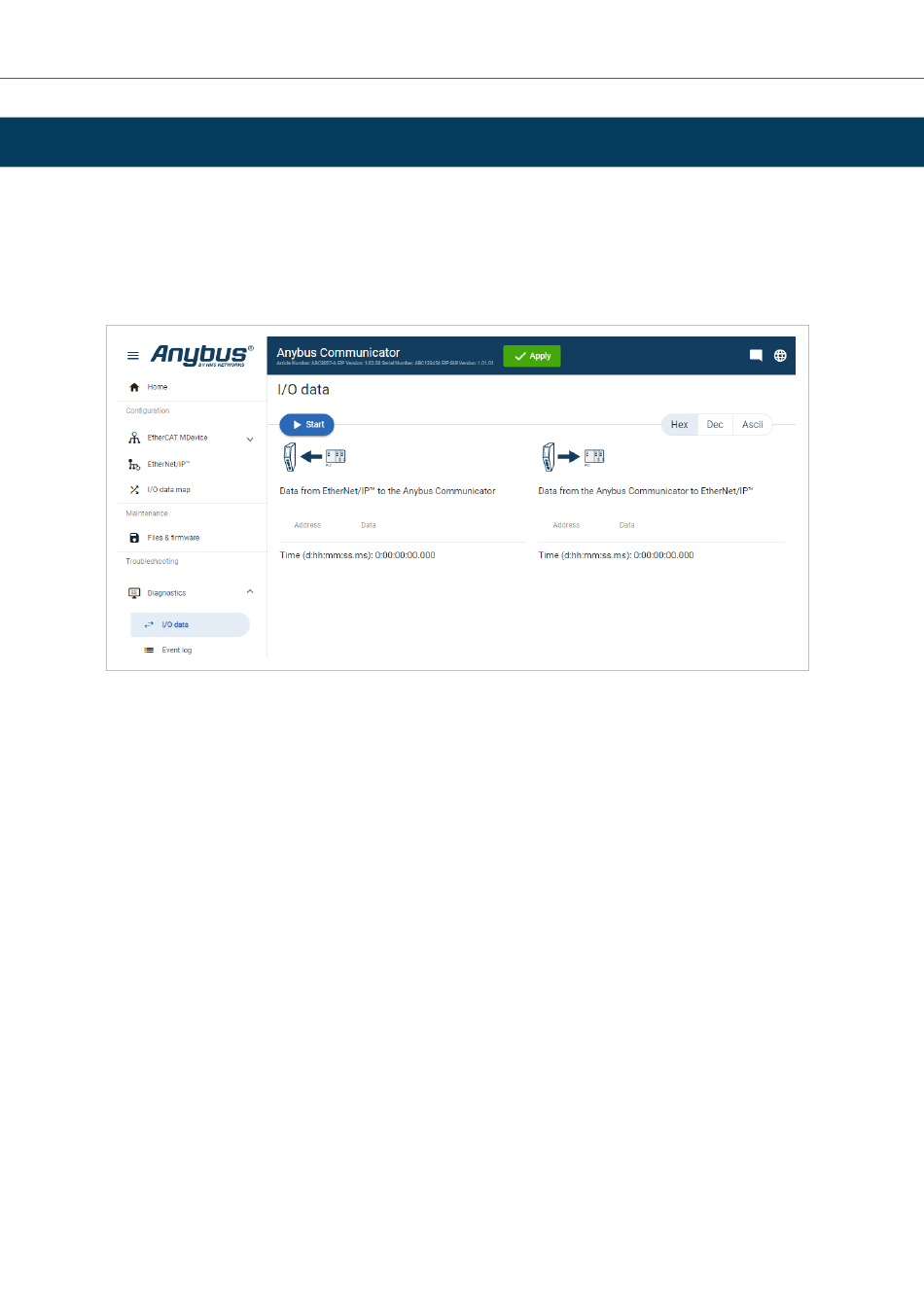

Figure 49. I/O data
The table can contain at most 10000 messages. When the limit is reached, the oldest messages are discarded
when new messages are added.
Switch between the OT networks
To switch between the networks, select EtherCAT or EtherNet/IP.
Select how data is displayed
To choose if the data should be displayed in Hexadecimal, Decimal or ASCII, click Hex, Dec or Ascii.
Start and Stop Data flow
• To start the data flow, click Start.
• To end the data flow, click Stop.
