7.5.3. Node Properties

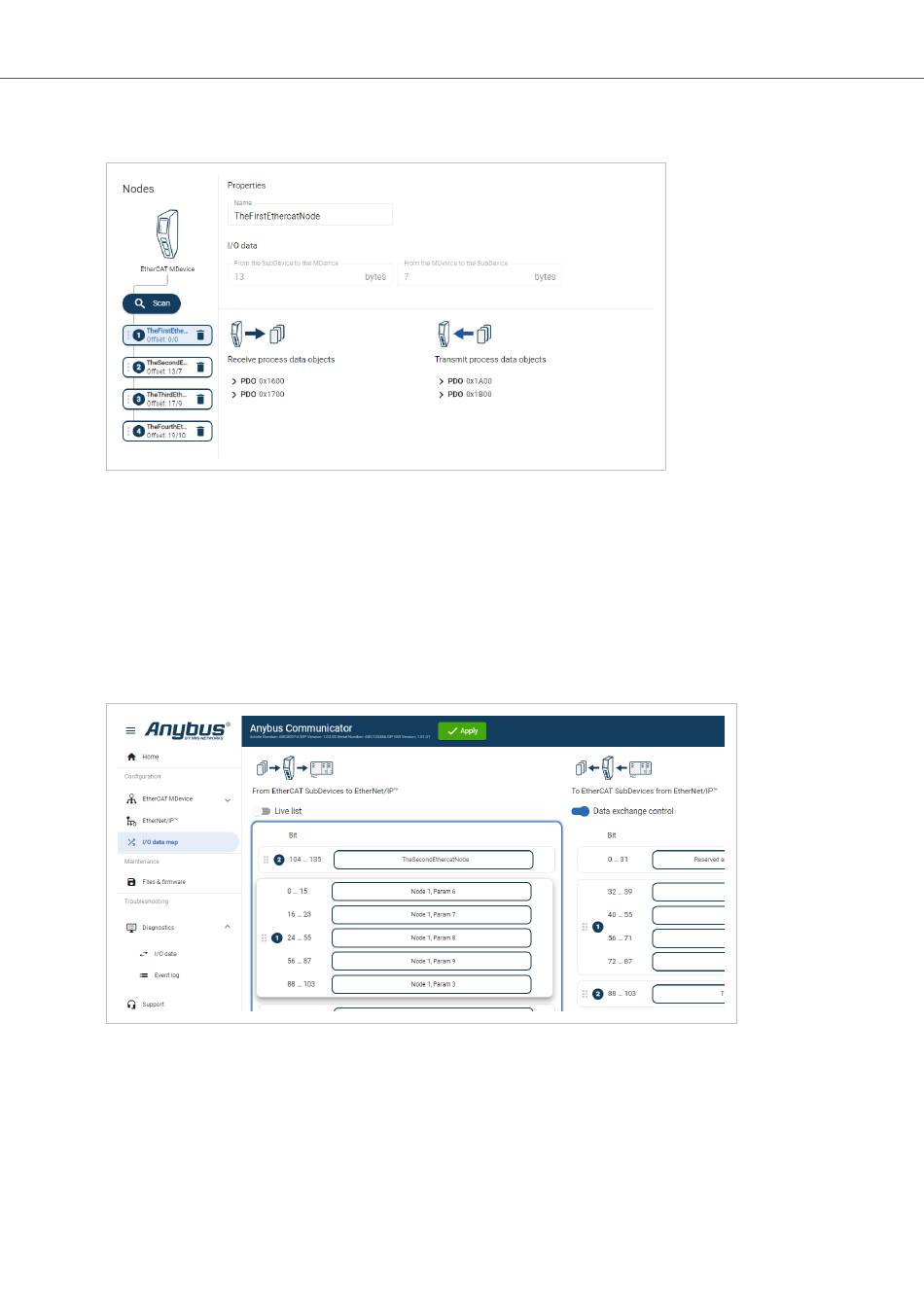

Figure 21. EtherCAT MDevice page, Properties
To view the process data objects and the properties for a specific node, select the node in the list.
The I/O data From the SubDevice to the MDevice and From the MDevice to the SubDevice are displayed in the
Properties pane.
To give a node a specific name: Select the node and enter the name in the Name field.

7.5.4. Node Order

Figure 22. I/O data map page, Properties
Navigate to the I/O data map page.
Changing the order of the nodes also changes how they map their data to the client device (PLC or PC) on the
subnetwork.
To change the order of the nodes: Drag and drop the node in the list to change the order.
