High Level Network Settings

7.6.2. To Configure IP Settings Manually

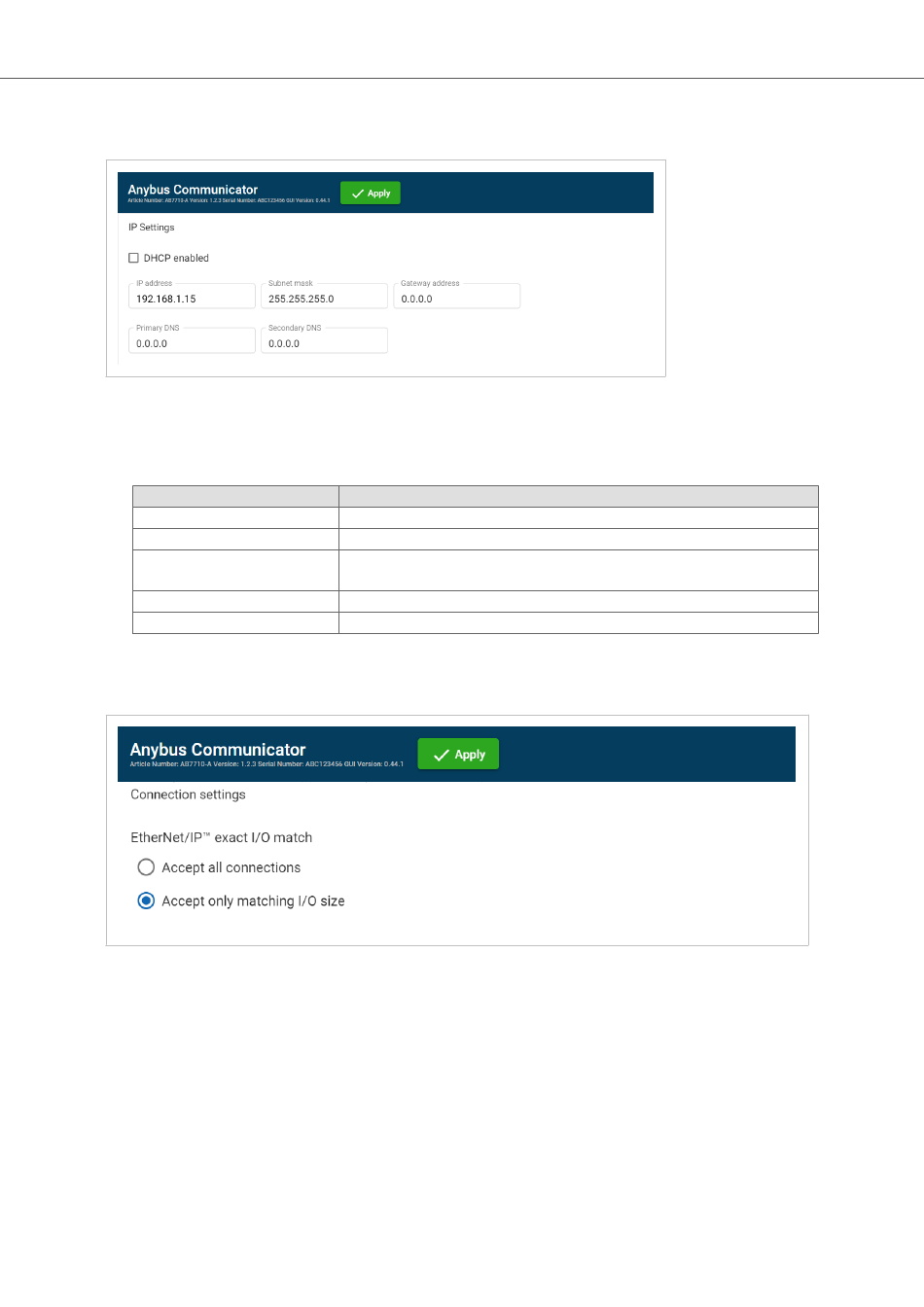

Figure 24. IP Settings, DCHP disabled
1. Deselect the DHCP enabled checkbox.
2. Configure the IP settings.
Setting
IP address
Subnet mask
Gateway address
Primary DNS
Secondary DNS

7.6.3. Connection Settings

Figure 25. EtherNet/IP page, Connection settings
When the EtherNet/IP Client (PLC) opens a connection to the Communicator, it specifies an I/O data size.
By default the Communicator is set to Accept Only Matching I/O Sizes.
The connections must match the I/O size configured on the EtherNet/IP page, refer to
and To Configure I/O Sizes Manually.
You can change to Accept All Connections.
The Communicator will accept all connections with an I/O size that is equal to or smaller than the configured I/O
size in the Communicator.
SCM-1202-218 Version 1.0
Description
The EtherNet/IP network IP address in IPv4 dot-decimal notation
The EtherNet/IP network Subnet mask in IPv4 dot-decimal notation.
The EtherNet/IP network Gateway address in IPv4 dot-decimal notation.
If there is no gateway available, set the Gateway address to: 0.0.0.0
The EtherNet/IP network Primary DNS in IPv4 dot-decimal notation.
The EtherNet/IP network Secondary DNS in IPv4 dot-decimal notation.
® ™
Anybus Communicator - EtherNet/IP to EtherCAT MDevice
To Use Automatic I/O Sizes
