Diagnostics

Anybus

Communicator

- EtherNet/IP to EtherCAT MDevice

11.1.3. LED Status

On the Home page, you can remotely monitor the Communicator LED status.

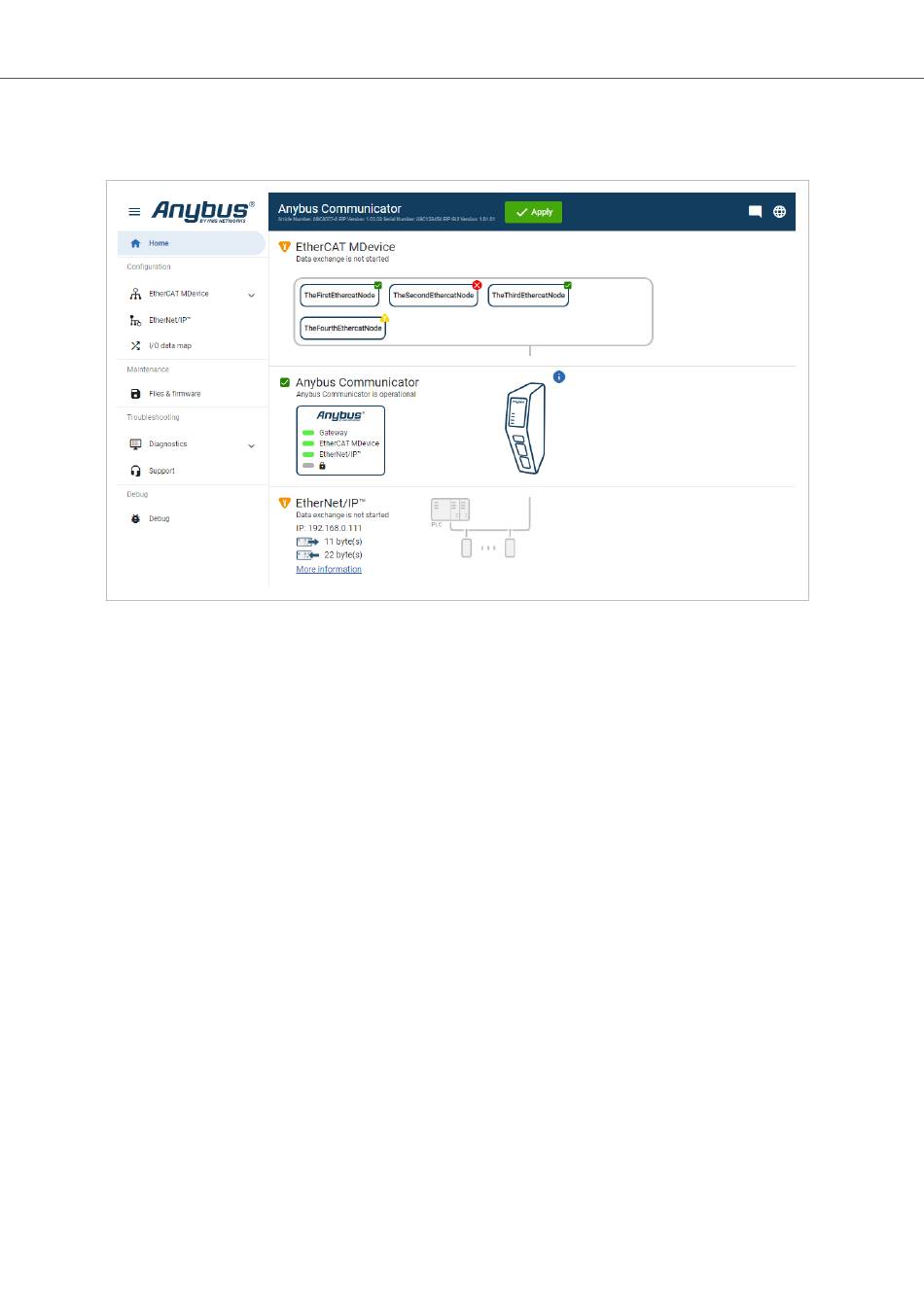

Figure 51. Home page

For information about the LED indication, see

Communicator LED

Indicators.

SCM-1202-218 Version 1.0

Page 55 of 61
