Modbus Server – BACnet Client
TM
Intesis

5 Set-up process and troubleshooting

Pre-requisites

It is necessary to have a Modbus TCP client or Modbus RTU master operative and well connected to the
corresponding Modbus port of Intesis as well as the BACnet IP or BACnet MSTP server devices connected to their
corresponding ports as well.
Connectors, connection cables, PC to use the configuration tool and other auxiliary material, if needed, are not
supplied by HMS Industrial Networks S.L.U for this standard integration.
Items supplied by HMS Networks for this integration are:
•
Intesis gateway.
•
Mini-USB cable to connect to PC
•
Link to download the configuration tool.
•
Product documentation.
Intesis MAPS. Configuration & monitoring tool for Intesis BACnet series

5.2.1 Introduction

Intesis MAPS is a Windows
series.
The installation procedure and main functions are explained in the Intesis MAPS User Manual for Modbus. This
document can be downloaded from the link indicated in the installation sheet supplied with the Intesis device or in
the product website at www.intesis.com
In this section, only the specific case of BACnet to Modbus systems will be covered.
Please check the Intesis MAPS user manual for specific information about the different parameters and how to
configure them.

5.2.2 Connection

To configure the Intesis connection parameters press on the Connection button in the menu bar.
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
®
compatible software developed specifically to monitor and configure Intesis Modbus

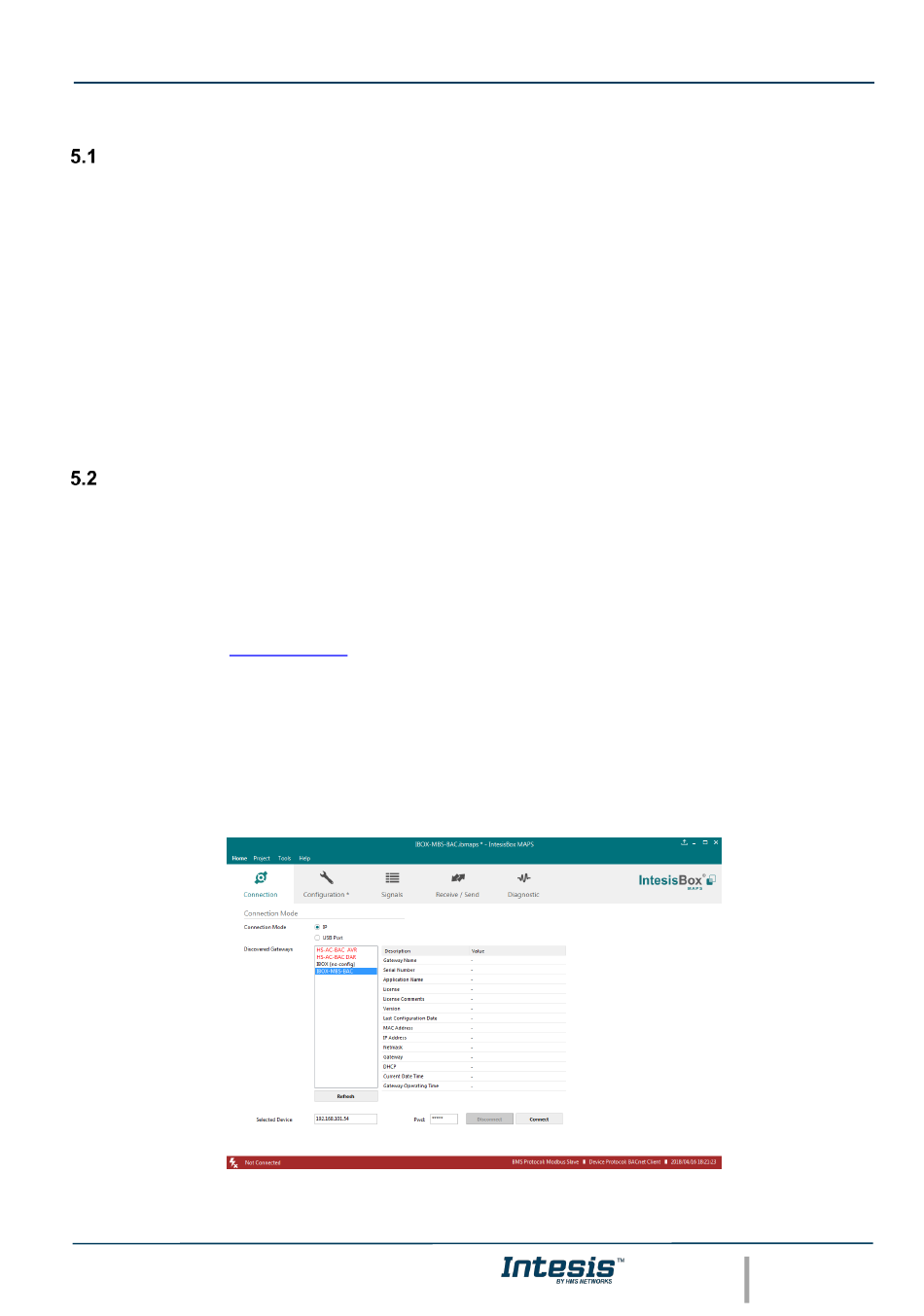

Figure 5.1 MAPS connection
