7. Communicator Configuration

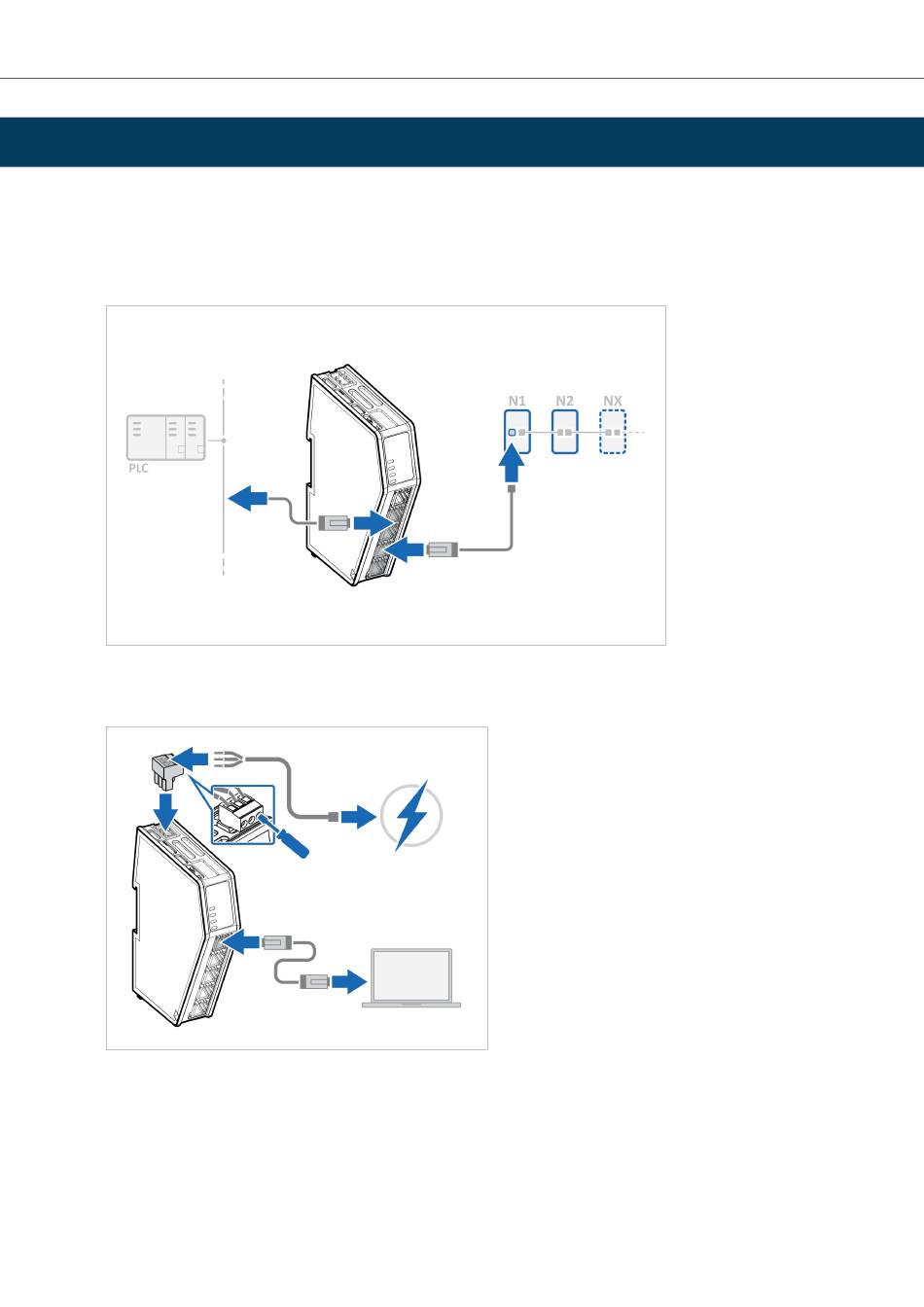

7.1. Connect the Communicator

Procedure
Connect to EtherCAT network and EtherNet/IP network
Connect to PC and Power
1. Connect an Ethernet cable between the Communicator and your PC.
2. Connect the Communicator to a power supply.
