ENGLISH

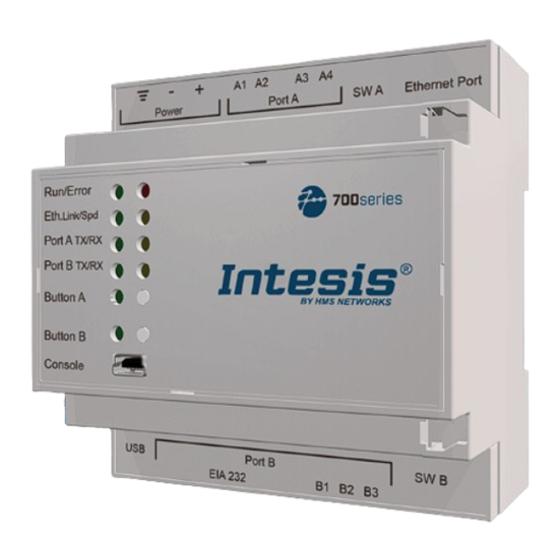

Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels
IN704DAL1280000 GATEWAY
USER MANUAL
Version 1.0.0
Publication date 2023-10-31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intesis 700 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HMS Networks Intesis 700 Series

Summary of Contents for HMS Networks Intesis 700 Series

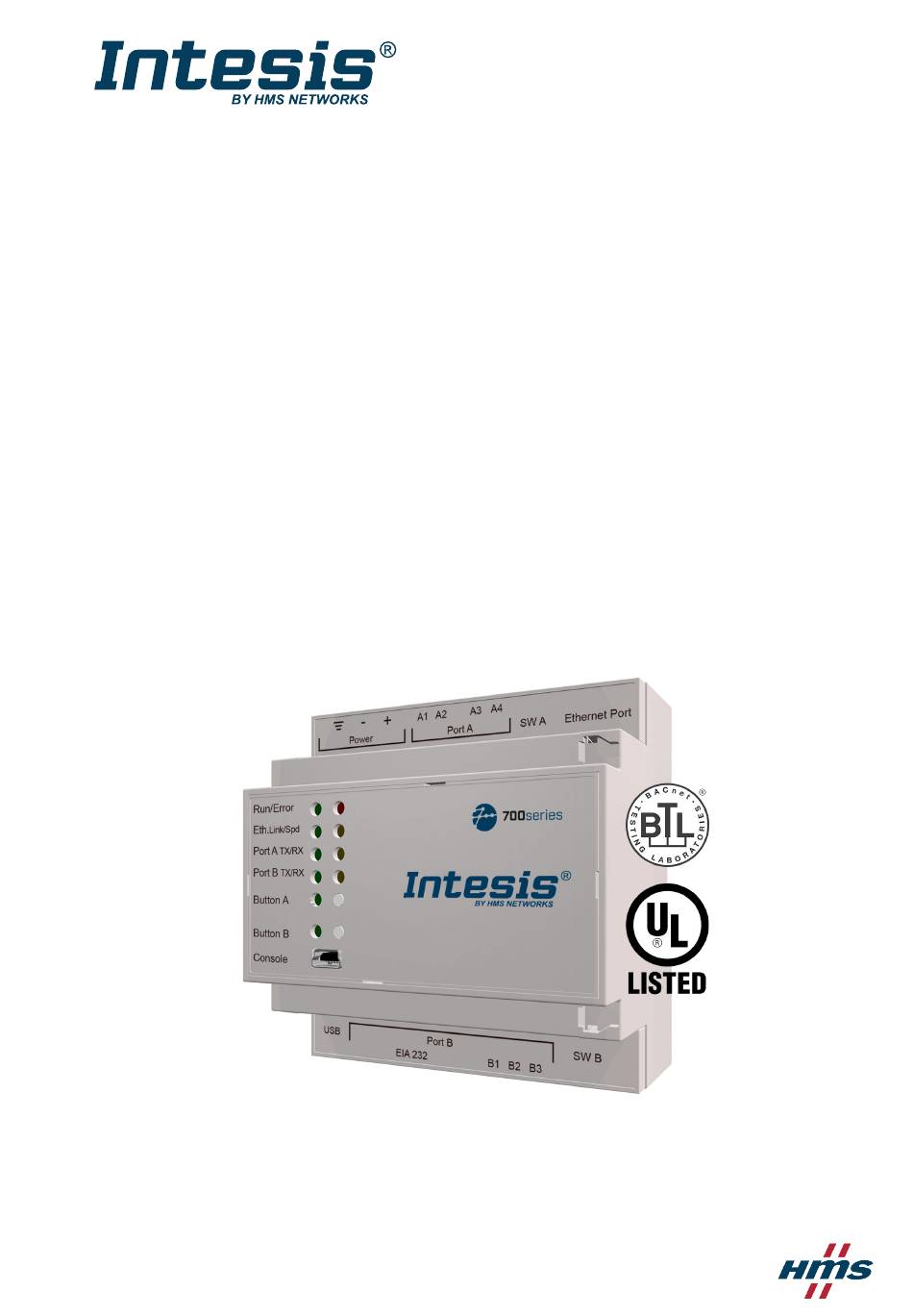

  • Page 1 ENGLISH Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels IN704DAL1280000 GATEWAY USER MANUAL Version 1.0.0 Publication date 2023-10-31...
  • Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.

  • Page 3: Table Of Contents

    Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Table of Contents 1. General Information ........................ 1 1.1. Intended Use of the User Manual ..................1 1.2. General Safety Information ....................1 1.3. Admonition Messages and Symbols ..................1 2.

  • Page 4: General Information

    General Information Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels 1. General Information 1.1. Intended Use of the User Manual This manual contains the main features of this Intesis gateway and the instructions for its appropriate installation, configuration, and operation. The contents of this manual should be brought to the attention of any person who installs, configures, or operates this gateway or any associated equipment.
  • Page 5 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Admonition Messages and Symbols IMPORTANT Instruction that must be followed to avoid a risk of reduced functionality and/or damage to the equipment or to avoid a network security risk. NOTE Additional information which may facilitate installation and/or operation.

  • Page 6: Description And Order Codes

    Description and Order Codes Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels 2. Description and Order Codes Intesis® IN704DAL1280000 Gateway. DALI-2 to Modbus TCP or BACnet/IP Server Application with 2 DALI Channels. ORDER CODE INTESIS MAPS TEMPLATE APPLICATION IN-MBS-DALI-128 Intesis DALI to Modbus Server Gateway...

  • Page 7: Overview

    Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Overview 3. Overview This IN704DAL1280000 gateway supports two applications. Gateway's client interface ↔ Gateway's server interface BACnet/IP DALI Modbus TCP IMPORTANT This document assumes that the user is familiar with these technologies. Figure 1.

  • Page 8: Inside The Package

    Inside the Package Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels 3.1. Inside the Package Items included: • Intesis IN704DAL1280000 gateway • USB Mini-B type to USB Type-A cable • Installation sheet 3.2. Main Features • DALI-2 certified •...

  • Page 9: General Functionality

    Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels General Functionality 3.3. General Functionality This Intesis IN704DAL1280000 gateway enables data exchange between installations and devices based on the DALI protocol and control systems based on BACnet or Modbus. To do so, the gateway is continuously aware of both sides: the control system (supervisor, BMS, client device, etc.) and the DALI installations or devices to be integrated.

  • Page 10: Dali Supported Device Types

    DALI Supported Device Types Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels 3.5. DALI Supported Device Types Name Part Device type Fluorescent lamp Self-contained emergency lighting LED module Color control Energy data Diagnostics and maintenance data Consult all signals and their characteristics in Available Applications (page 17).

  • Page 11: Hardware

    Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Hardware 4. Hardware 4.1. Mounting IMPORTANT Before mounting, please ensure that the chosen installation place preserves the gateway from direct solar radiation, water, high relative humidity, or dust. IMPORTANT Ensure the gateway has sufficient clearances for all connections when mounted.

  • Page 12: Connection

    Connection Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels 4.2. Connection CAUTION Disconnect all systems from the power source before manipulating and connecting them to the gateway. IMPORTANT Keep communication cables away from power and ground wires. 4.2.1.
  • Page 13 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Connection Connectors' wiring: IMPORTANT For all connectors, use solid or stranded wires (twisted or with ferrule). Cross-section/gauge per terminal: • One core: 0.2 .. 2.5 mm / 24 .. 11 AWG •...

  • Page 14: Connection Procedure For Dali

    Connection Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Figure 3. Gateway's power supply enabling parameter The gateway's power supply is enabled/disabled from the DALI Channel root in the tree view NOTE If you change the status of the Power the DALI Bus parameter, send the project to the gateway through the Receive/Send tab to apply the new status.

  • Page 15: Connection Procedure For Bacnet

    Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels LED Indicators NOTE Some devices detect the difference automatically and adjust themselves. IMPORTANT When commissioning the gateway for the first time, DHCP will be enabled for 30 seconds. After that time, the default IP address 192.168.100.246 will be set.

  • Page 16: Buttons

    Buttons Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Color Description No power The gateway is Green connected and running No error Error Error No connection Eth. Link Green Connection established No transmission Eth. Spd Yellow Transmitting data No activity Data packet TX blinking green...
  • Page 17 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Buttons NOTE When having a pen drive connected to the gateway's USB connector, press button B to download a project or/and a firmware version from the pen drive to the gateway. The gateway will download the last saved project.

  • Page 18: Technical Specifications

    Technical Specifications Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels 4.5. Technical Specifications Material: Plastic, type PC (UL 94 V-0) Color: Light grey (RAL 7035) Housing Net dimensions: 90x88x56 mm / 3.54x3.46x2.20" Space needed for connections: 130x100x100 mm / 5.11x3.93x3.93" Mounting DIN rail EN 60715 TH35 Cross-section/gauge per terminal:...

  • Page 19: Dimensions

    Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Dimensions 4.6. Dimensions Figure 4. Gateway dimensions Figure 5. Space needed for connections Page 16 of 37 USER MANUAL Version 1.0.0...

  • Page 20: Available Applications

    Available Applications Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels 5. Available Applications NOTE Signals marked as Optional signals are supported by the gateway but may not be supported by the server devices of the installation. Please refer to the technical documentation of each server device to know which signals they support.
  • Page 21 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels DALI to BACnet/IP Object name Possible values Object type Object instance Uyxx_Fade Time 0 .. 15 0-Analog Input 7000*y+(100*xx)+8 Uyxx_Fade Rate 1 .. 15 0-Analog Input 7000*y+(100*xx)+9 Uyxx_Arc Power Level 0 ..
  • Page 22 DALI to BACnet/IP Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Table 5. Broadcast - All ballasts Object name Possible values Object type Object instance By_Arc Power Level 0 .. 100% 1-Analog Output 7000*y+6800 0: Off By_Arc Power Off / On 4-Binary Output 7000*y+6800 1: 100%...
  • Page 23 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels DALI to BACnet/IP Object name Possible values Object type Object instance Uyxx_Emergency Battery 0 .. 100% 0-Analog Input 7000*y+(100*xx)+18 Charge Uyxx_Next Function Test 0 .. 16384 hours 0-Analog Input 7000*y+(100*xx)+19 Uyxx_Next Duration Test 0 ..
  • Page 24 DALI to BACnet/IP Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Table 7. LED ballasts (Type 6) Object name Possible values Object type Object instance b7: RefMeasurFail b6: ThermLightLvl b5: ThermShut b4: CurrProtAct Uyxx_Failure Status 0-Analog Input 7000*y+(100*xx)+38 b3: LoadInc b2: LoadDec...
  • Page 25 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels DALI to BACnet/IP Table 8. Color control (Type 8) Object name Possible values Object type Object instance Uyxx_Store Current Level & Colour 0 .. 15 1-Analog Output 25000+(3200*y)+(50*xx)+0 as Scene Uyxx_Clear/Remove Colour from 0 ..
  • Page 26 DALI to BACnet/IP Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Table 10. Broadcast - Color ballasts (Type 8) Object name Possible values Object type Object instance Tc: 1000 .. 10000°K By_Arc Colour level 1-Analog Output 7000*y+6810 RGB: 0 ..
  • Page 27 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels DALI to BACnet/IP Object name Possible values Object type Object instance Uyxx_Light Source On Time 25000+(3200*y)+(50*xx) 0 .. 4294967293 seconds 1-Analog Input Resettable Uyxx_Light Source Set On 25000+(3200*y)+(50*xx) 0 .. 4294967293 seconds 1-Analog Output Time Resettable 25000+(3200*y)+(50*xx)
  • Page 28 DALI to BACnet/IP Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Table 14. Input devices Object name Possible values Object type Object instance 0: Vacant + No Mov 1: Vacant + Mov Iyxx_Occupancy Input 13-Multistate 14000+(640*y)+(10*x) Value Input +z+SI*1280 2: Occupied + No Mov...

  • Page 29: Dali To Modbus Tcp

    Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels DALI to Modbus TCP 5.2. DALI to Modbus TCP 5.2.1. Modbus Registers Function to read Modbus registers: • 03 Read holding registers • 04 Read input registers Function to write Modbus registers: •...
  • Page 30 DALI to Modbus TCP Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Register name Possible values Address formula b7: PwrCycle b6: MissShAdd b5: ResetSt b4: FadeRun Ballast Status 7000*y+(100*xx)+5 b3: BallLimErr b2: LampPwrOn b1: LampFail b0: BallFail Actual Level 0 ..
  • Page 31 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels DALI to Modbus TCP Register name Possible values Address formula 0: Off 1: 100% 2: StpUp 3: StpDwn 1XX: GoScn 2XX: StoreScn Multicontrol 3XX: RmvScn 7000*y+(100*xx)+31 1XXX: FdRate 2XXX: FdTime 3XXX: MinLvl 4XXX: MaxLvl 5XXX: PwrOnLvl...
  • Page 32 DALI to Modbus TCP Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Register name Possible values Address formula 0: Off 1: 100% 2: StpUp 3: StpDwn 1XX: GoScn 2XX: StoreScn Multicontrol 3XX: RmvScn 7000*y+(20*xx)+6414 1XXX: FdRate 2XXX: FdTime 3XXX: MinLvl 4XXX: MaxLvl 5XXX: PwrOnLvl...
  • Page 33 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels DALI to Modbus TCP Register name Possible values Address formula 0: Off 1: 100% 2: StpUp 3: StpDwn 1XX: GoScn 2XX: StoreScn Broadcast Multicontrol 3XX: RmvScn 7000*y+6814 1XXX: FdRate 2XXX: FdTime 3XXX: MinLvl 4XXX: MaxLvl...
  • Page 34 DALI to Modbus TCP Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Register name Possible values Address formula 0: Disabled Duration Test Interval 7000*y+(100*xx)+49 1 .. 97 weeks Test Execution Timeout 0 .. 255 days 7000*y+(100*xx)+50 Prolong Time 0 ..
  • Page 35 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels DALI to Modbus TCP Table 19. LED ballasts (Type 6) Register name Possible values Address formula b7: RefMeasurFail b6: ThermLightLvl b5: ThermShut b4: CurrProtAct Failure Status 7000*y+(100*xx)+80 b3: LoadInc b2: LoadDec b1: OpenC b0: ShortC...
  • Page 36 DALI to Modbus TCP Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Table 20. Color control (Type 8) Object name Possible values Object type Object instance Uyxx_Store Current Level & 0 .. 15 1-Analog Output 25000+(3200*y)+(100*xx)+0 Colour as Scene Uyxx_Clear/Remove Colour from 0 ..
  • Page 37 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels DALI to Modbus TCP Register name Possible values Address formula Gyxx_Arc Colour White level for RGBW W: 0 .. 100 7000*y+(20*xx)+6417 For RGBW only 0: Step Cooler Gyxx_Colour Tc Step Warmer/Cooler 7000*y+(20*xx)+6418 1: Step Warmer Address formula:...
  • Page 38 DALI to Modbus TCP Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels Register name Possible values Address formula bitfields 0: Overal failure 1: Ext. Supply Undervoltage Control Gear Failure 2: Ext. Supply Overvoltage 25000+(3200*y)+(100*xx)+51 3: ECG Output Power Limit 4: Thermal derating 5: Thermal shutdown Light Source Start Counter Resettable...
  • Page 39 Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels DALI to Modbus TCP Table 26. Input devices Register name Possible values Address formula 0: Vacant + No Mov 1: Vacant + Mov 14000+(640*y)+(10*x) Iyxx_Occupancy Input Value +z+SI*1280 2: Occupied + No Mov 3: Occupied + Mov 14000+(640*y)+(10*x) Iyxx_Light Input Value...

  • Page 40: Late Configuration: Change The Gateway's Protocol

    Late Configuration: Change the Gateway's Protocol Intesis DALI-2 Protocol Translator with IP Support - 2 DALI Channels 6. Late Configuration: Change the Gateway's Protocol Reconfiguring the gateway with a different protocol is very easy: Connect the gateway to the PC and open the configuration tool Intesis MAPS. Select the new template you need.
