11.3. Firmware Upgrade Error Management

If the firmware update process is interrupted or if the power is lost during the update process, the
Communicator goes into fallback mode.
The last working firmware is still available on the flash, but it is not active.
Procedure
To complete the interrupted firmware update:
1. Disconnect the Communicator from power.

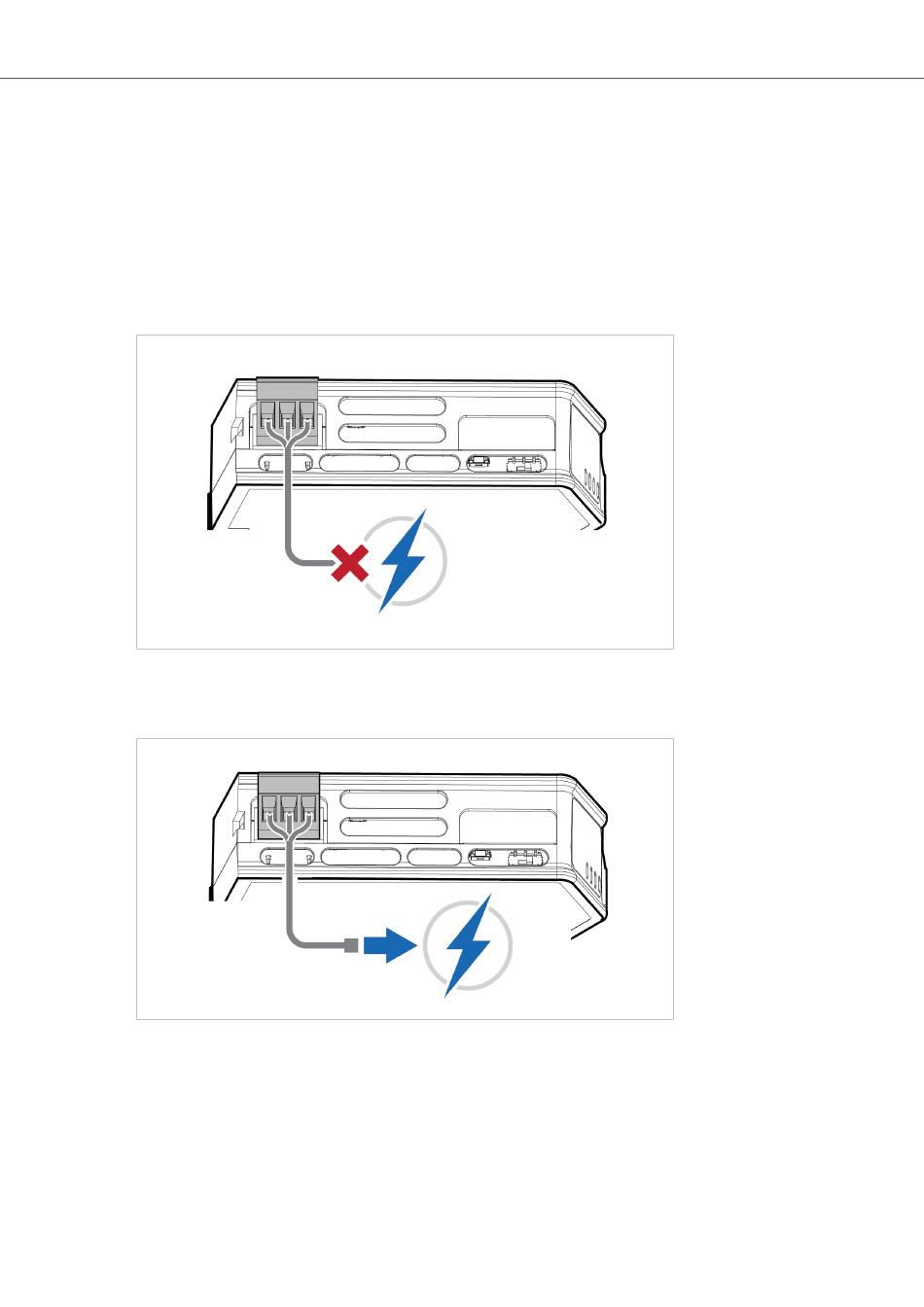

Figure 56. Disconnect power
2. Reconnect the Communicator to power.
Figure 57. Reconnect power
