6 Set-up process and troubleshooting

Pre-requisites

It is necessary to have a KNX device or interface operative and well connected to the corresponding KNX port of
Intesis and a Modbus RTU slave connected to their corresponding port as well.
Connectors, connection cables, PC to use the configuration tool and other auxiliary material, if needed, are not
supplied by HMS Industrial Networks S.L.U for this standard integration.
Items supplied by HMS Networks for this integration are:
•
Intesis gateway.
•
Product documentation.
•
Product ETS database.

Configuration and Setup

6.2.1 Introduction

This is a fully compatible KNX device which must be configured and setup using the standard KNX tool ETS.
ETS database for this device can be downloaded from:
http://intesis.com/docs/configuration-files/inknxmbm1000100_ets_database

6.2.2 ETS Parameters

When imported to the ETS software for the first time, the gateway has 10 Modbus signals active, each one configured
as a Read and Write signal, so configuration looks like:
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice

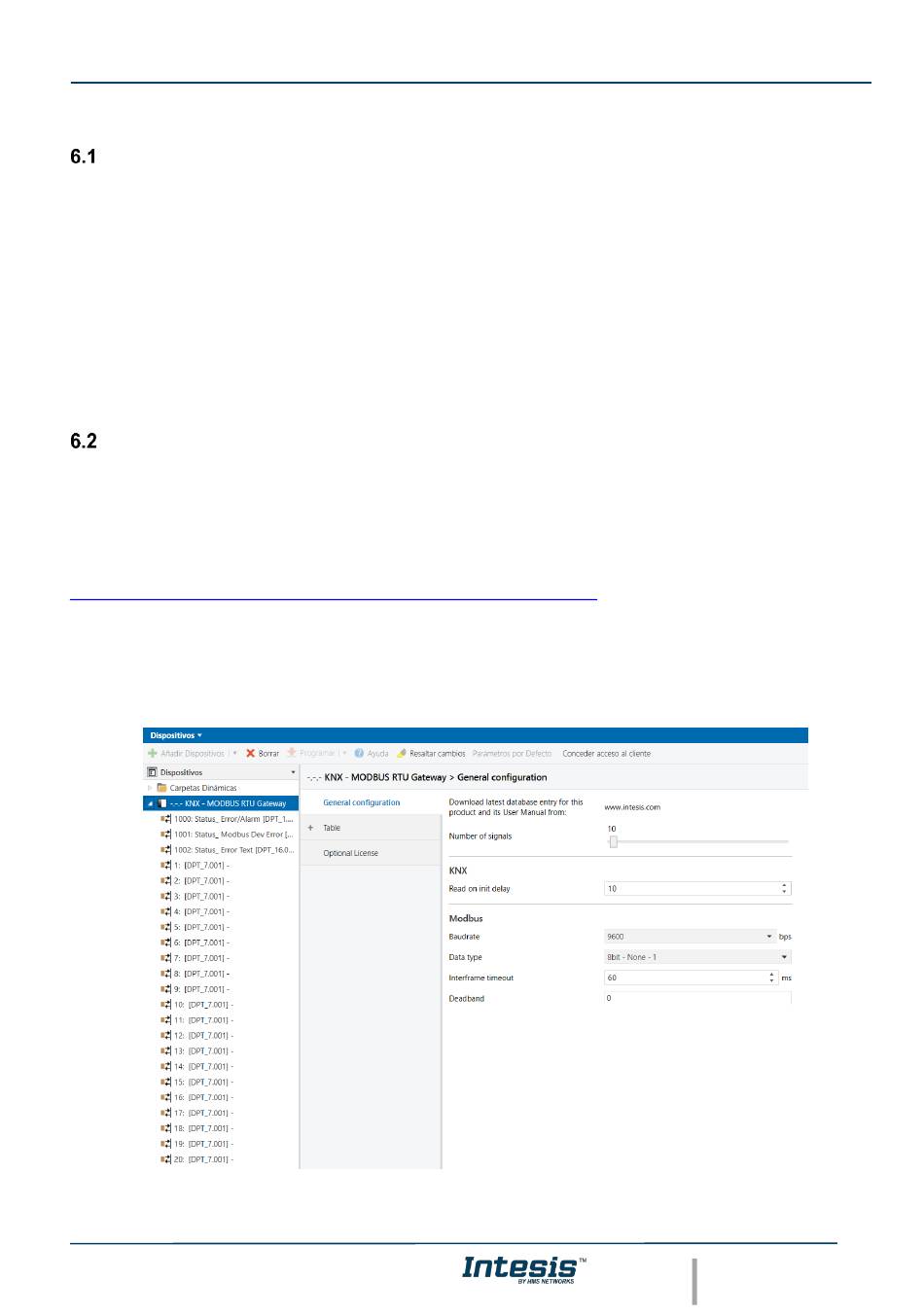

Figure 6.1 Default configuration
