Figure 5-5
FlexSet
280S/FlexAPDL Base with
APA Connected
4.

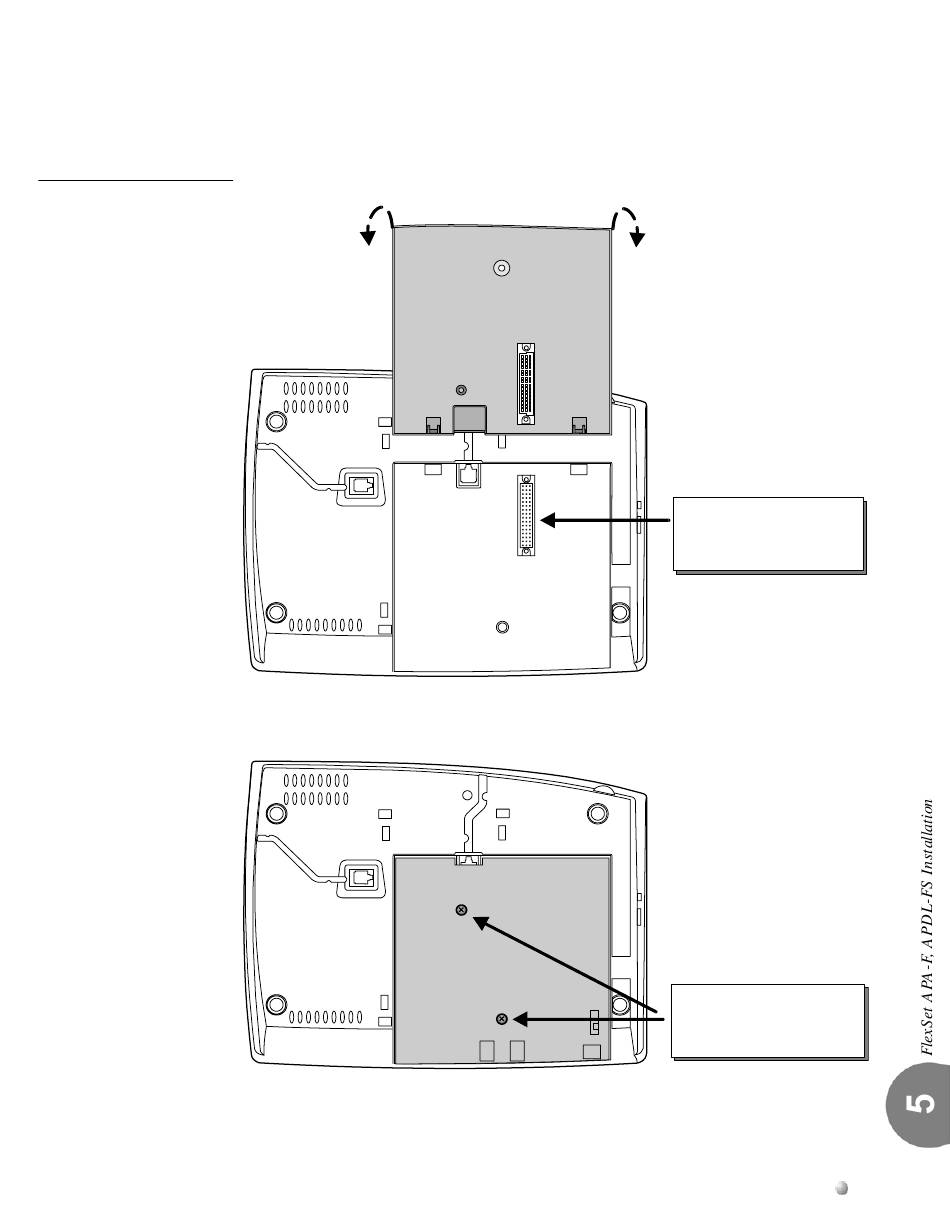

Position the APA module over the base, so that the female connectors on the APA
module align with the male connectors on the FlexSet 280S base. Gently but firmly
press the APA module down until the connectors couple and the module rests
comfortably on the base, as shown in Figure 5-5.
APA
FlexSet 280S Base
5.
Insert and fasten the large screw that previously held the plastic base cover in
place into the equivalent hole (A) on the APA.
A
B
+
B
A
1
Flip APA until
Step
connection is
established
Screw APA to
2
FlexSet 280S
Step
base until secure
5-5
