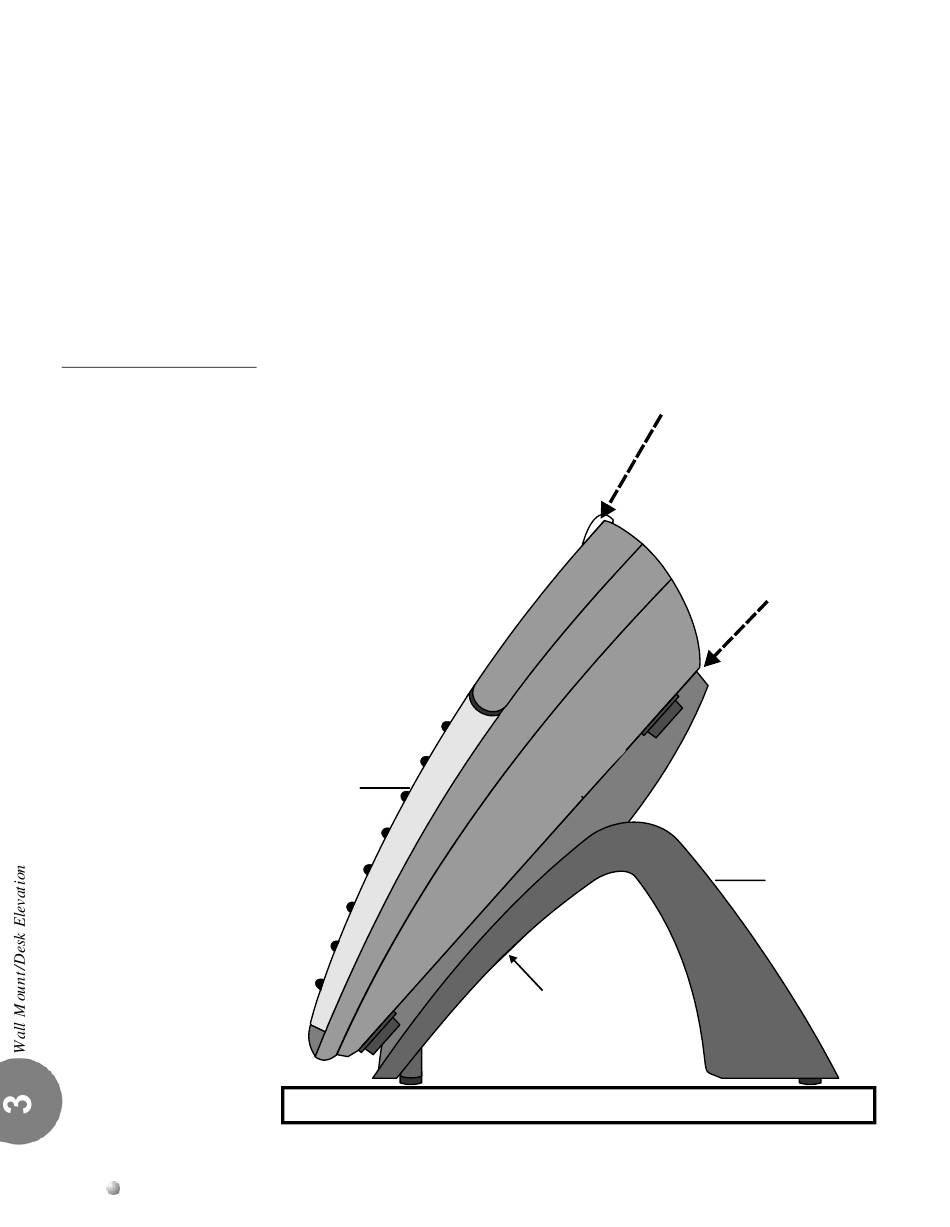

Side View, Completed Elevating The Flexset (60O) - Tadiran Telecom FlexSet 280 Manual

Figure 3-14 Side View,
Completed Elevating the
o
FlexSet (60 )
3-12
Coral Terminal Equipment
3. Place the stand's top legs, into the matching narrow slots at the top of the phone
and then push the legs up into the slots to secure them. See Figure 3-13 for details.
Feed the line cable, DC power cable, and the RS-232 cable through the cutout at
4.
the rear of the bracket.
5. Place the stand's bottom legs, into the matching narrow slots on the bottom of the
phone. See Figure 3-13 for details.
6. Lift and remove the handset hook (tab), rotate one half turn (180 degrees) and
reinsert it into the cradle of the telephone set, with the projection at the edge tab
extended out. Then place the handset (see Figure 3-16 on page 3-14). The rotated
handset hook secures the handset in an upright position.
FlexSet
O
60
Line
cord
entry
Desk
O
44
Desktop
Elevation
Stand
