DSA3200-PTP

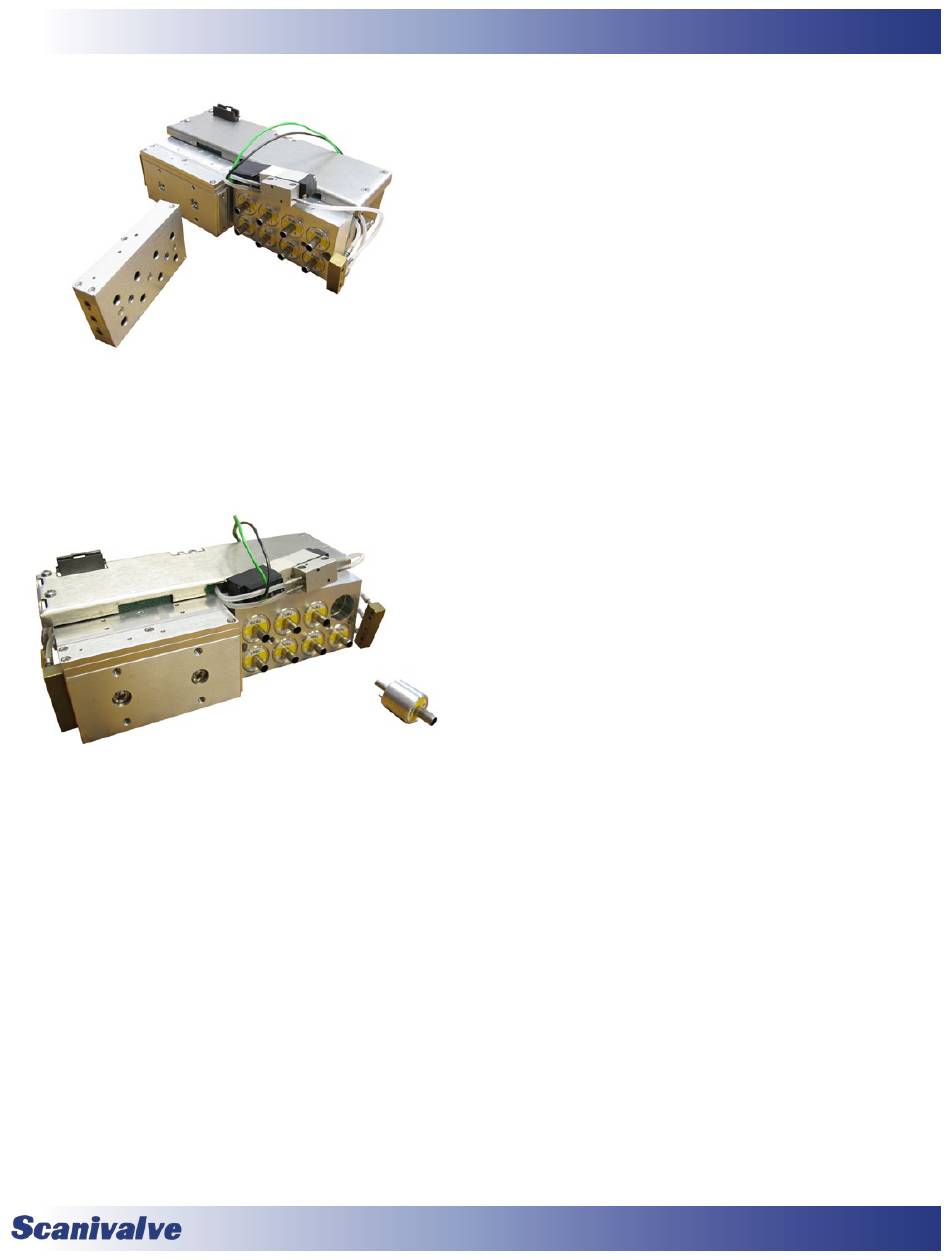

Figure 6.21: Remove the reference manifold
Step 11: Replace the sensor
Gently pull the sensor out that needs to be replaced.
Note the position of the alignment pin when installing
the new sensor. The sensor shown removed in this
image is from position #15.
Figure 6.22: Remove the sensor
Reassemble the module in the reverse order as the dis-
assembly process. After replacing a sensor, the new
calibration coefficients for that sensor will need to be
uploaded to the module in order for it to work prop-
erly. Scanivalve provides a free utility program called the
"Sensor Replacement Utility" that makes this task very
simple. The Sensor Replacement Utility can be down-
loaded for free from the Scanivalve website at http://www.
scanivalve.com/support/software-downloads/.
67
67
Section 6: Maintenance
