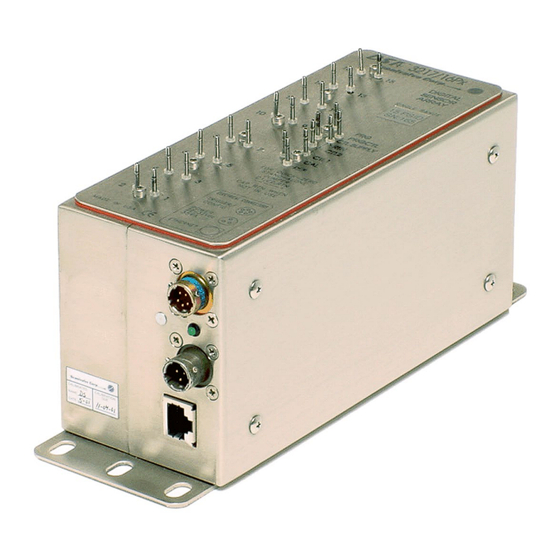

DSA3217-PTP/3218-PTP
Series Pressure Scanner
Digital Sensor Array
Operation and Service Manual
Software Version 2.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSA3217-PTP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scanivalve DSA3217-PTP Series

Summary of Contents for Scanivalve DSA3217-PTP Series

  • Page 1 DSA3217-PTP/3218-PTP Series Pressure Scanner Digital Sensor Array Operation and Service Manual Software Version 2.01...

  • Page 4: Preface

    Warranty Scanivalve Corporation, Liberty Lake, Washing- not to be defective, shall be at the expense of Buyer or the ton, hereafter referred to as Seller, warrants to the Buyer...

  • Page 5: Trademarks ® And Copyrights

    Packaging for Shipment If the product must be shipped, whether being returned to Scanivalve or relocated to another location it must be packaged properly to minimize the risk of damage. The recommended method of packing is to place the instru-...
  • Page 6 Table of Contents DSA3200-PTP [INTENTIONALLY LEFT BLANK]...

  • Page 7: Table Of Contents

    Table of Contents DSA3200-PTP TABLE OF CONTENTS PREFACE Warnings, Cautions and Notes Warranty Trademarks ® and Copyrights © Packaging for Shipment Important Notice Contact Information Section 1: Specifications DSA3217-PTP DSA3218-PTP Section 2: Introduction General Description Module Overview DAS3217-PTP Configurations DSA3217-PTP/16Px DSA3217-PTP/16Px - Dual Range DSA3217-PTP/8DPx - Differential DSA3217-PTP/16Px - Absolute...
  • Page 8 Table of Contents DSA3200-PTP Quick Zero Jumper Scanning Scanning With An External Trigger Hardware Trigger Software Trigger Freon Application Operations Section 4: Hardware Pneumatic Connections Making 1/16” Tubulation Connections Pressure Measurement (Px) Ports Calibration (CAL) Port Reference (REF) Port Control 1 (CLT1) Port Control 2 (CTL2) Port Control Supply (CTL SUPPLY or CTL) Return (RTN) Port...
  • Page 9 Table of Contents DSA3200-PTP Scan Scan Trigger Status Stop Version Set PTP Time Get PTP Time Get UTC Offset Configuration Variables Scan Variables (LIST S) Average (AVG) Binary Data (BIN) Unit Conversion Factor (CVTUNIT) Engineering Units (EU) Data Format (FORMAT) Frames Per Scan (FPS) Page (PAGE) Period (PERIOD)
  • Page 10 Table of Contents DSA3200-PTP Negative Calibration Points (NEGPTSn) Calibration Variables (LIST C) Channel 1-8 Number of Negative Calibration Points (NEGPTSL) Channel 9-16 Number of Negative Calibration Points (NEGTPSH) Channel 1-8 Maximum Pressure (PMAXL) Channel 9-16 Maximum Pressure (PMAXH) Channel 1-8 Minimum Pressure (PMINL) Channel 9-16 Minimum Pressure (PMINH) Error Limit Variables (LIST LIMIT) High Temperature Error Limit (THI)
  • Page 11 Table of Contents DSA3200-PTP DSA-PTP Firmware Installation (Windows 7 & 10) DSA-PTP Coefficient Upload DSA3200-PTP Sensor Replacement DSA3200-PTP General Checkout Procedure Appendix Appendix A: Temperature Compensated Pressure Conversion Appendix B: Engineering Unit Conversion Constants Appendix C: DSA3200-PTP Error List Boot/Initialization Errors Set Configuration Variable Errors Command Errors Communication Errors...
  • Page 12 Section 1: Specifications DSA3200-PTP [INTENTIONALLY LEFT BLANK]...

  • Page 13: Section 1: Specifications

    Section 1: Specifications DSA3200-PTP DSA3200 SECTION 1: SPECIFICATIONS Maximum Reference Pressure 250 psid (1750 kPa) or DSA3217-PTP sensor overpressure, Size (WxHxD) 2.86” x 3.40” x 7.08” which ever is less (7.26cm x 8.64cm x 17.98cm) Weight 6.4lbs Power Requirements 20 to 36 Vdc at 8 W (2.91kg) I/O and mating connectors Pressure Inputs:...

  • Page 14: Dsa3218-Ptp

    Section 1: Specifications DSA3200-PTP DSA3218-PTP Maximum Reference Pressure 250 psid (1750 kPa) or sensor overpressure, Size (WxHxD) 4.08” x 6.97” x 9.0” which ever is less (10.36 cm x 17.70 cm x 22.86 cm) Power Requirements No Heater 20 to 36 Vdc at 8 W Weight 9.78 lbs With Heater...
  • Page 15 Section 1: Specifications DSA3200-PTP...
  • Page 16 Section 1: Specifications DSA3200-PTP...

  • Page 17: Section 2: Introduction

    Section 2: Introduction DSA3200-PTP SECTION 2: INTRODUCTION In addition to the more rugged casing on the DSA3218-PTP General Description modules, additional options of a heater or a cooling kit are The Digital Sensor Array (DSA) is a stand-alone electronic offered. The heater option allows the module to be oper- pressure scanner which can accept up to 16 pneumatic ated below the 0 °C temperature compensation range of inputs.

  • Page 18: Dsa3217-Ptp/16Px - Dual Range

    Section 2: Introduction DSA3200-PTP DSA3217-PTP/16Px - Dual Range The DSA3217-PTP/16Px module is available as a dual-range module, offering eight (8) channels of one pressure range and eight (8) channels of a different pressure range. Like a standard DSA3217-PTP, each group of eight (8) transducers share a common calibration valve and a common reference manifold.

  • Page 19: Dsa3217-Ptp/16Px - Individual Reference

    Section 2: Introduction DSA3200-PTP DSA3217-PTP/16Px - Individual Reference This means that any calibration, including a zero offset Both the standard DSA3217-PTP/16Px and Dual Range calibration (CALZ) will have to be done with no pressure DSA3217-PTP/16Px are available with individual reference applied to the module.

  • Page 20: Dsa3218-Ptp Configurations

    Section 2: Introduction DSA3200-PTP DSA3218-PTP Configurations The DSA3218-PTP is available in 4 basic pressure configura- tions and has 2 optional hardware configurations. DSA3218-PTP/16Px The basic DSA3218-PTP/16Px module provides 16 chan- nels of the same ‘gauge’ pressure range sensors. These 16 pressure transducers are configured into two (2) groups of eight (8) each.

  • Page 21: Dsa3218-Ptp/16Px - Absolute

    Section 2: Introduction DSA3200-PTP DSA3218-PTP/16Px - Absolute DSA3218-PTP Heater Option The DSA3218-PTP/16Px module can be used for absolute The DSA3218-PTP series module can be equipped with pressure measurement when equipped with absolute pres- an internal heater for cold environment applications. The sure transducers.

  • Page 22: Environmental Considerations

    Section 2: Introduction DSA3200-PTP Environmental Considerations Both the DSA3217-PTP and DSA3218-PTP modules are constructed with a rugged, corrosion resistant stainless steel case. This case is designed with withstand normal industrial, flight test, educational, wind tunnel or similar environments. The case is splash resistant but not water proof.

  • Page 23: Section 3: Operation

    Scanivalve before proceeding. important is the Ethernet IP address. Standard modules are shipped with the following contents...

  • Page 24: Ethernet Communications

    Ethernet cables for the DSA3218-PTP modules can be with the DSA-PTP module. Communications can be made ordered from Scanivalve in any length up to 100 feet (30 through several software packages including: meters).

  • Page 25: Pc - Scantel

    PC - LabVIEW Development Kit More information on both the ‘CALZ’ and the ‘CALB’ soft- The Scanivalve LabVIEW Development Kit is for users desir- ware commands can be found in “Calibrate Zero” on page ing to customize a LabVIEW driver for DSA-PTP modules.

  • Page 26: Quick Zero Jumper

    Section 3: Operation DSA3200-PTP Quick Zero Jumper To initiate scanning, simply send the command: ‘SCAN’. If a scan trigger is not being used, data will begin to be output In order to perform a zero offset calibration 90-120 psi of from the DSA-PTP module over the Ethernet connection.

  • Page 27: Freon Application Operations

    Section 3: Operation DSA3200-PTP Purging Freon Application Operations All DSA-PTP modules incorporate an internal calibration When using DSA3218-PTP modules in Freon Applications valve. One of the configurations of this valve allows for an special considerations must be taken. In order to prevent ‘isolate-purge’...

  • Page 28: Section 4: Hardware

    As an option, 1/16” or 1/4” Swagelok® are available. Making 1/16” Tubulation Connections Begin by applying a small amount of Scanivalve brown pipe sealant to the outside of the tubulation. Carefully slide the tubing over the outside of the stainless steel tubulation (Scanivalve’s tubing push-on tool TPOTL-XXX makes this...

  • Page 29: Pressure Measurement (Px) Ports

    Section 4: Hardware DSA3200-PTP Pressure Measurement (Px) Ports Control 1 (CLT1) Port Each DSA-PTP module has 16 pressure measurement ports, Control 1 (CTL1) is the ‘isolation’ control. Applying 90-120 or Px ports. They will be labeled 1-16, or for dual range psi to the CTL1 port closes a normally open (flow) valve and units ±...

  • Page 30: Purge Control (Prgctl) Port

    Section 4: Hardware DSA3200-PTP Calibration Valve Purge Control (PRGCTL) Port For applications where the pressure measurement ports Each DSA-PTP module has two internal calibration valves. (Px ports) may become plugged or contaminated, the DSA- The calibration valves can be configured using the three PTP module is equipped with a purge function.
  • Page 31 Section 5: Software DSA3200-PTP [INTENTIONALLY LEFT BLANK]...

  • Page 32: Section 5: Software

    Section 5: Software DSA3200-PTP SECTION 5: SOFTWARE DSA-PTP Control and Configuration The operation of a DSA-PTP module is controlled by sending commands to units selected by network addressing via the net- work. The DSA-PTP returns any data or information over the network to the requesting client/host. The section on DSA-PTP Commands lists each command and explains its function.

  • Page 33: Command List

    Section 5: Software DSA3200-PTP Command List Calibrate Barometric Pressure Command CALIBRATE BAROMETRIC PRESSURE Command Syntax CALB <press> [period] [average] Arguments <press> - is a real number that represents the local barometric pressure. [period] - optional: sets the period for the CALB routine. If this value is not entered, the default period will be 300 microseconds.

  • Page 34: Calibrate Zero

    Section 5: Software DSA3200-PTP Command CLEAR Example To clear any errors listed in the ERROR Buffer, the following command would be issued: CLEAR <CR> The ERROR buffer will be cleared Calibrate Zero Command CALIBRATE ZERO Command Syntax CALZ [period] [average] [delay] Arguments [period] - (optional) sets the period for the CALZ routine.

  • Page 35: Delete

    Section 5: Software DSA3200-PTP Delete Command DELETE Command Syntax DELETE <start temp> <end temp> [<channel>] Arguments <start temp> - an integer from 0 to 79 that represents the low point of the temperature planes to be deleted. <end temp> - an integer from 0 to 79 that represents the high point of the temperature planes to be deleted.

  • Page 36: Insert

    Section 5: Software DSA3200-PTP Command ERROR Example To read the contents of the Error Buffer: Type: ERROR<Enter> The DSA-PTP will return the last 30 errors in the format: ERROR: Port not found ERROR: List MI no group number ERROR: Group not between 1 and 8 If no errors have been logged, the DSA-PTP will return: ERROR: No errors Insert...

  • Page 37: List All

    Section 5: Software DSA3200-PTP List All Command LIST ALL Command Syntax LIST A <Start Temp> <End Temp> [Channel] Arguments <Start Temp> - The lowest temp plane to be returned. <End Temp> - The highest temp plane to be returned. [Channel] - (Optional) may be 0 through 15. Description Lists all of the master and calculated points in the temperature-pressure correction matrix.

  • Page 38: List All Ranges

    Section 5: Software DSA3200-PTP List All Ranges Command LIST ALL RANGES Command Syntax LIST B Arguments None Description Lists the 16 Absolute/Gauge Settings from the ABSn variable. NOTE: These values will deter- mine the action when issuing a CALZ or CALB command. Returns SET ABS0 <1 or 0>...

  • Page 39: List Calibrate

    Section 5: Software DSA3200-PTP List Calibrate Command LIST CALIBRATE Command Syntax LIST C Arguments None Description Lists the CALIBRATION configuration variables. Returns SET PMAXL<press> SET PMAXH <press> SET PMINL <press> SET PMINH <press> SET NEGPTSL <num points> SET NEGPTSH <num points> Example To view the current conversion variable settings, type: LIST C<CR>...

  • Page 40: List Ftp Settings (List Ftp)

    Returns all of the FTP settings Arguments LIST FTP Description All of the FTP setting followed by the prompt. Returns LIST FTP SET USERFTP Scanivalve SET PASSFTP password SET PATHFTP C:/FTPDIR SET IPFTP 10.0.1.222 SET FILEFTP Scan List Gain Command...

  • Page 41: List Identification

    All of the IP setting followed by the prompt. LIST IP Returns SET IPADD 191.30.82.100 SET SUBNET 255.255.0.0 SET MAC 000.096.093.082.000.100 SET LOGIN Scanivalve SET PASSWORD Scanner SET LOGIN1 Scanivalve1 SET PASSWORD1 Scanner1 SET ALLOWANON 1 SET APP Dsaptp.hex SET GW 0.0.0.0...

  • Page 42: List Master

    Section 5: Software DSA3200-PTP List Master Command LIST MASTER Command Syntax LIST M <Start Temp> <End Temp> [Channel] Arguments <Start Temp> - The lowest temp plane to be returned. <End Temp> - The highest temp plane to be returned. [Channel] - (Optional) may be 0 through 15. Description Lists all of the MASTER POINTS in the temperature-pressure correction matrix.

  • Page 43: List Maxn Pressures

    Section 5: Software DSA3200-PTP List MAXn Pressures Command LIST MAXn PRESSURES Command Syntax LIST H Arguments None Description Lists the 16 maximum pressures stored in the MAXn Variable. NOTE: This is active only when MODEL is set to 3207. Returns SET MAX0 <term>...

  • Page 44: List Negative Points

    Section 5: Software DSA3200-PTP List Negative Points Command LIST NEGATIVE POINTS Command Syntax LIST N Arguments None Description Lists the Negative Points settings for each of the 16 channels in a DSA3207. NOTE: This is active only when MODEL is set to 3207. Returns SET NEGPTS0 <term>...

  • Page 45: List Ptp Variables

    Section 5: Software DSA3200-PTP List PTP Variables Command LIST PTP VARIABLES Command Syntax LIST PTP<CR> Arguments None Description Lists the PTP configuration variables from Group PTP. Returns SET <variable> <value> <nl> SET <variable> <value> <nl> : : : : SET <variable> <value> <nl> variable - the configuration variable name value - the current setting nl - end of line...

  • Page 46: List Temperature

    Section 5: Software DSA3200-PTP List Temperature Command LIST TEMPn Command Syntax LIST TEMP <channel> Arguments <channel> - channel number 0 through 15 Description Lists the 11 temperature coefficient terms for a specified channel Example To view the current temperature coefficients for a channel, type: LIST TEMP <chan><CR> The DSA-PTP will return the temperature coefficients for the channel..

  • Page 47: Scan

    Section 5: Software DSA3200-PTP Command SAVE Command Syntax SAVE Arguments None Description Commands the DSA-PTP to save the RAM image of the Non Volatile Memory. Any change to a configuration variable must be followed by a SAVE command if the change is to be perma- nent.

  • Page 48: Scan Trigger

    Section 5: Software DSA3200-PTP Scan Trigger Command SCAN TRIGGER Command Syntax TRIG or <tab> Arguments None Description This command acts as a software trigger to the DSA. When XSCANTRIG is set to 1, an aver- aged frame of data will be output when the DSA-PTP receives the TRIG command or a <TAB> character code (9 HEX or Control I).

  • Page 49: Stop

    Section 5: Software DSA3200-PTP Command STATUS Returns One of the following: STATUS: READY STATUS: CALZ STATUS: SAVE Example If the STATUS command is entered while the DSA-PTP is on, but inactive, the DSA-PTP will return: STATUS: READY If the STATUS command is entered while the DSA-PTP is executing a Calibrate Zero command, the DSA-PTP will return: STATUS CALZ Stop...

  • Page 50: Get Ptp Time

    Section 5: Software DSA3200-PTP Command SETTIME Notes SETTIME must not be used if SET PTPEN 1 and a PTP grandmaster is present. Get PTP Time Command GETTIME Command Syntax GETTIME Arguments None Description Commands the DSA-PTP to get the PTP time. If no grandmaster is present or time pro- gramed, the DSA-PTP will return the default time.

  • Page 51: Configuration Variables

    Section 5: Software DSA3200-PTP Configuration Variables Configuration Variables control the way the DSA-PTP functions. The variables are assigned to one of several groups: SCAN (LIST S), CALIBRATION (LIST B, LIST C, LIST H, LIST L, LIST N, LIST LIMIT), IDENTIFICATION (LIST I), IP (LIST IP), FTP (LIST FTP), PTP (LIST PTP) or PRESSURE (LIST D, LIST O, LIST G, and LIST Z).

  • Page 52: Engineering Units (Eu)

    Section 5: Software DSA3200-PTP Engineering Units (EU) Variable Valid Values 0 or 1 Default Value Data Type string Group Scan variables (List S) Description Sets the output format for temperature and pressure units. 0 = raw units 1 = Engineering units 2 = Engineering units with floating point temperature (see DSA-PTP packet definitions) NOTE: The module will output 999999 when one or more of the following conditions exist:...

  • Page 53: Page (Page)

    Section 5: Software DSA3200-PTP Page (PAGE) Variable PAGE Valid Values 0 or 1 Default Value Data Type integer Group Scan variables (List S) Description When set to 1, the DSA-PTP will accumulate 10 frames of data before the data is sent over the network.

  • Page 54: Time Stamp (Time)

    Section 5: Software DSA3200-PTP Time Stamp (TIME) Variable TIME Valid Values 0, 1, 2, or 3 Default Value Data Type integer Group Scan variables (List S) Description Determines the format of the Time Stamp. 0 - No Time Stamp 1 - Time stamp data are in microseconds 2 - Time stamp data are in milliseconds 3 - Time stamp data are in PTP time Scan Unit (UNITSCAN)

  • Page 55: Zero Correction (Zc)

    Section 5: Software DSA3200-PTP Zero Correction (ZC) Variable Valid Values 0 or 1 Default Value Data Type integer Group Scan variables (List S) Description Sets zero correction on or off. 0 - no correction 1 - zero correction NOTE 1: ZC must be set to 0 for the following conditions: 1.

  • Page 56: Ip Variables (List Ip)

    The MAC address of the module. The last three octets may be modified by a user, but it is recommended that they not be modified. The first three octets MUST NOT be modified. These octets represent a setting registered to Scanivalve Corp. LOGIN (LOGIN) Variable LOGIN <User Name>...

  • Page 57: Password

    Section 5: Software DSA3200-PTP Password (PASSWORD) Variable PASSWORD <Password> Valid Values any valid character string Default Value Scanner Data Type string Group IP variables (List IP) Description The password associated with the user name for the FTP login Login 1(LOGIN1) Variable LOGIN1 <User Name>...

  • Page 58: Set Gateway (Gw)

    Section 5: Software DSA3200-PTP Set Gateway (GW) Variable GW <IP Address> Valid Values any valid IP address Default Value 0.0.0.0 Data Type integer Group IP variables (List IP) Description This IP Address will be used to access the server if the server IP address is an IP Address outside the DSM subnet.

  • Page 59: Ptp Variables (List Ptp)

    Section 5: Software DSA3200-PTP PTP Variables (LIST PTP) PTP Enable (PTPEN) Variable PTPEN <code> Valid Values 0-disabled, 1-enable, 2-enable as master Default Value Data Type integer Group PTP variables (List PTP) Description Enables the precision time protocol engine in the DSA-PTP. When PTPEN is set to 2, the DSA- PTP will serve as a PTP master.

  • Page 60: Scan Start Date (Ssd)

    Section 5: Software DSA3200-PTP Scan Start Date (SSD) Variable SSD <code> Valid Values yyyy/mm/dd Where: yyyy-Year, mm-Month, dd-Day Default Value 2014/1/1 Data Type integer Group PTP variables (LIST PTP) Description Sets the date to start scanning as referenced to the grandmaster. UTC Offset (UTCOFFSET) Variable UTCOFFSET <code>...

  • Page 61: Ftp Variables (List Ftp)

    Section 5: Software DSA3200-PTP FTP Variables (LIST FTP) FTP User Name (UESRFTP) Variable USERFTP <user name> Valid Values any valid string Default Value admin Data Type string Group FTP variables (List FTP) Description Sets the name of the user login on the FTP server or NAS FTP Password (PASSFTP) Variable PASSFTP <password>...

  • Page 62: Ftp File Name(Fileftp)

    Section 5: Software DSA3200-PTP FTP File Name(FILEFTP) Variable FILEFTP <name> Valid Values any valid string Default Value SCAN Data Type string Group FTP variables (List FTP) Description Set the base name for the scan data on the user’s computer. The actual name will have the time and date appended to the file.

  • Page 63: Pressure Variables (List B, List H, List L And List N)

    Section 5: Software DSA3200-PTP Pressure Variables (LIST B, LIST H, LIST L and LIST N) Absolute Enable (ABSn) Variable ABSn (where n = 0-15 for channels 1-16) Valid Values 0 or 1 Default Value determined by module type Data Type integer Group Calibration variables (List B)

  • Page 64: Calibration Variables (List C)

    Section 5: Software DSA3200-PTP Calibration Variables (LIST C) Channel 1-8 Number of Negative Calibration Points (NEGPTSL) Variable NEGPTSL Valid Values 0 through 8 Default Value Data Type integer Group Calibration variables (List C) Description Sets the number of negative calibration points for channels 1 - 8. This must be set to zero or to a positive number if the module is an absolute module.

  • Page 65: Channel 1-8 Minimum Pressure (Pminl)

    Section 4: Hardware DSA3200-PTP Channel 1-8 Minimum Pressure (PMINL) Variable PMINL Valid Values any real number Default Value determined by module type Data Type float Group Calibration Variables (List C) Description Sets the minimum pressure for channels 1 - 8. This must be set to zero or to a positive number if the module is an absolute module.

  • Page 66: Error Limit Variables (List Limit)

    Section 5: Software DSA3200-PTP Error Limit Variables (LIST LIMIT) CAUTION! Changes to the LIST LIMIT variables can produce scan readings that exceed the safe working max tem- perature and max pressure ranges of the scanner and its sensors. This could ultimately lead to damage in the unit. It is not recommended to alter these variables unless advised.

  • Page 67: Identification Variables (List I)

    Section 5: Software DSA3200-PTP Identification Variables (LIST I) Serial Echo (ECHO) Variable ECHO Valid Values 0 or 1 Default Value Data Type integer Group Identification variables (List I) Description Determines if characters received from a serial host will be echoed back to the host. 0 - the DSA-PTP will not echo characters 1 - the DSA-PTP will echo characters back to the host Model (MODEL)

  • Page 68: Ethernet Host (Host)

    Section 5: Software DSA3200-PTP Ethernet Host (HOST) Variable HOST <IP Address> <Port> <Protocol> Valid Values IP Address - Any valid IP Address Port - Any valid port number other than 0 Protocol - U for UDP T for TCP Default Value IP Address - 0 Port - 0 Protocol - T...

  • Page 69: Dsa-Ptp Packet Definitions

    Section 5: Software DSA3200-PTP DSA-PTP Packet Definitions When requested the DSA-PTP sends an application packet to the client. Each packet sent to the client starts with a Packet Type Word. This word defines the packet type. All packet data will be received as signed. Packet Types Packet Name Packet ID...

  • Page 70: Scan Eu Packet

    Section 5: Software DSA3200-PTP Scan EU Packet Function Description Bytes Data Type Value/Notes Packet Type Integer 5Hex Pad bytes (forces quad byte alignment) Integer unidentified Frame Number Integer Current Frame Number Channels 1-16 Pressure Float 4 bytes per channel Channels 1-16 Temperature Integer 2 bytes per channel Scan Raw with Time Packet...

  • Page 71: Scan Raw/Eu With Ptp Time (Set Time 3)

    Section 5: Software DSA3200-PTP Scan RAW/EU with PTP Time (SET TIME 3) Function Description Bytes Data Type Value/Notes Packet Type Integer AHex (10 dec) Packet Size Integer Size of packet in bytes Frame Number Integer Current frame number Scan Average Integer Number of samples averaged Frame Rate...

  • Page 72: Ascii Packet Examples

    DSA3200-PTP Boot Parameters To view the DSA3200-PTP module’s boot parameters: 1. De-energize the DSA3200-PTP. Connect the DSA3200-PTP trigger/serial test cable (Scanivalve part #155829) from the DSA3200-PTP to a host PC. 2. Start HyperTerminal, or an equivalent communication program. Connect the DSA3200-PTP to a COM port on the PC Host.

  • Page 73: Dsa3200-Ptp Buffer Description

    Section 5: Software DSA3200-PTP DSA3200-PTP Buffer Description The DSA3200-PTP buffer is a software buffer. It is set up as a FIFO. It is factory set to hold 10000 averaged frames of data. Each frame uses 292 bytes of memory. The buffer is the liaison between the scan task and the scan output task. The scan output task has a higher priority than the scan task.

  • Page 74: Section 6: Maintenance

    This technique is suitable for maintaining modules long term and has been proven to be just as good as a new full calibration when done properly. More information on PressCal can be found on the Scanivalve website or by contacting Scanivalve.

  • Page 75: Special Procedures

    Section 6: Maintenance DSA3200-PTP Special Procedures DSA-PTP Firmware Installation (Windows 7 & 10) NOTE: Some firewalls may block file transfers. We recom- This section contains the procedures to update the firm- mend that firewalls be shut down for the procedures in this ware, add calibration coefficients to memory.

  • Page 76: Dsa-Ptp Coefficient Upload

    Where: <IPAddress> is the IP Address of the DSA-PTP. port@scanivalve.com 7. The host computer should connect. If the connection is successful, the contents of the DSA-PTP memory will be displayed in a folder format.

  • Page 77: Dsa3200-Ptp Sensor Replacement

    The piezoelectric pressure sensors in the DSA-PTP module are field replaceable. If a sensor needs to be replaced, contact Scanivalve Technical Support before attempting to change a sensor. New sensors can be obtained from Sca- nivalve or any official Scanivalve Representative. Extreme caution should be taken when changing a sensor.
  • Page 78 Section 6: Maintenance DSA3200-PTP Step 5: Disconnect the ground wire Step 8: Remove the insulators Using a #1 phillips screwdriver, disconnect the ground Using a #2 phillips screwdriver, remove the 8 counter wire. sunk screws that hold the insulators in place. Figure 6.18: Remove the insulators Figure 6.15: Remove the ground wire Step 9: Remove the Quick Zero Solenoid and manifold...
  • Page 79 Scanivalve provides a free utility program called the “Sensor Replacement Utility” that makes this task very simple. The Sensor Replacement Utility can be down- loaded for free from the Scanivalve website at http://www.

  • Page 80: Dsa3200-Ptp General Checkout Procedure

    This procedure does ence port(s) on the module. not verify the accuracy of the module. If the module fails this procedure in any way, contact Scanivalve for additional - This should result in a negative reading on all channels. support.
  • Page 81 Section 6: Maintenance DSA3200-PTP 9. Check for drifting/unstable sensors Send the following commands: SET EU 0 CALZ (wait for the CALZ to complete) SCAN Monitor all 16 channels - All sensor readings should stay stable within 4 counts for 1 minute. STOP the scan.
  • Page 82 Appendix DSA3200-PTP [INTENTIONALLY LEFT BLANK]...

  • Page 83: Appendix

    Appendix DSA3200-PTP APPENDIX Appendix A: Temperature Compensated Pressure Conversion Formulas: Pressure interpolation within current temperature plane: ((PC - PC - (PC - PC - PC Calculation of entries in current temperature plane: - T)P - (T - T)P 0 25...

  • Page 84: Appendix B: Engineering Unit Conversion Constants

    Appendix DSA3200-PTP Appendix B: Engineering Unit Conversion Constants PSI to EU EU to PSI UNITSCAN Setting Engineering Unit 1 psi = 1 EU = Atmospheres 0.068046 A 14.6960 psi Bars 0.068947 b 14.5039 psi CMHG Centimeters of Mercury 5.17149 cmHg 0.193368 psi CMH20 Centimeters of Water...

  • Page 85: Appendix C: Dsa3200-Ptp Error List

    Appendix DSA3200-PTP Appendix C: DSA3200-PTP Error List Boot/Initialization Errors ERROR: Could not create a socket Fatal Error - The DSA-PTP Module has a hardware problem. ERROR: Could not bind a socket Fatal Error - The DSA-PTP Module has a hardware problem. ERROR: Could not listen on a socket Fatal Error - The DSA-PTP Module has a hardware problem.
  • Page 86 Appendix DSA3200-PTP ERROR: Max channel not between 0 and 15 The number entered was negative or greater than 15 ERROR: Min value not valid ERROR: Min channel value invalid The value for the variable was not entered or is not numeric. ERROR: Min channel not between 0 and 15 The number entered was negative or greater than 15 ERROR: Period value not valid...

  • Page 87: Command Errors

    Appendix DSA3200-PTP ERROR: CALB baro value not valid The value was not entered, negative, or not numeric ERROR: CALB period value not valid The value entered was outside the range of the PERIOD variable. ERROR: CALB average value not valid The value entered was less than 1 or greater than 240.

  • Page 88: Communication Errors

    Appendix DSA3200-PTP The pressure value entered was not numeric ERROR: Insert’s type not valid ERROR: Insert’s type must be M The insert type must be M ERROR: LIST M start temp not valid The start temp entered was less than 0, greater than 69, or not numeric ERROR: List M start temp above <max temp>...
  • Page 89 Appendix DSA3200-PTP ERROR: Allignment rb%lu f%1lX lbx%1lX lb%1lX px%1lX p%1lX cx%1lX c%1lX”, Fatal Error - The DSA-PTP Module has a hardware problem parsing the data. ERROR: Data buffer overflow The data buffer is full - The TCP/IP connection may be disconnected ERROR: Send message queue The TCP/IP connection may be disconnected or the scan speed os too fast for the network.

  • Page 90: Appendix D: Software Change Log

    Appendix DSA3200-PTP Appendix D: Software Change Log Version 1.00 - Initial Release (April 2018) Verison 1.01 - Corrected a socket issue pertaining to data transfer. (August 2018) Version 1.02 - Added limit settings under LIST LIMIT. LIST B now determines the actions of CALZ and CALB. (September 2018) Version 1.03 - Fixed a bug involving CALZ command.
  • Page 91 DSA3200-PTP 1722 N. Madson St. Liberty Lake, WA 99019 Phone: 1-800-935-5151 1-509-891-9970 Fax: 1-509-891-9481 scanco@scanivalve.com www.scanivalve.com DSA-PTP Manual June 24, 2022...
