DSA3200-PTP

DSA3217-PTP/16Px - Individual Reference

Both the standard DSA3217-PTP/16Px and Dual Range
DSA3217-PTP/16Px are available with individual reference
ports for each sensor. A calibration valve is provided for
each group of eight (8) sensors, however unlike the stan-
dard DSA3217-PTP/16Px modules a separate reference port
is provided for all sixteen (16) transducers. These indi-
vidual reference ports are not controlled by the calibration
valve.

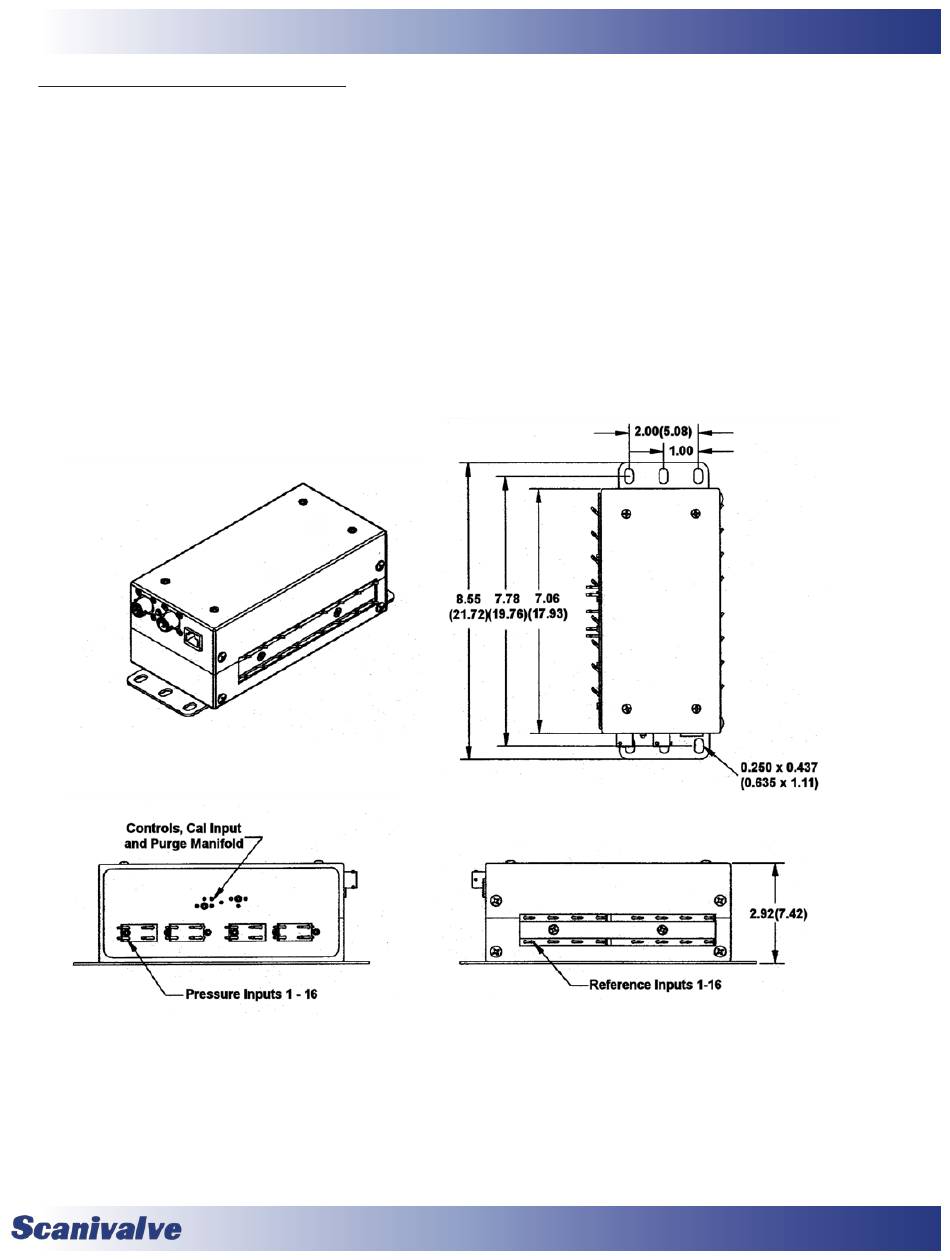

Figure 2.5 - DSA3217-PTP/16Px Individual Reference
Section 2: Introduction
This means that any calibration, including a zero offset
calibration (CALZ) will have to be done with no pressure
applied to the module. The individual reference modifica-
tion is depicted in Figure 2.5 below.
