Special Procedures

This section contains the procedures to update the firm-
ware, add calibration coefficients to memory. The DSA-PTP
should be in the READY mode while these changes are
being made. This will have no effect on the operation. The
procedures described in this section are written for use in a
Windows 7 operating system.
The firmware and coefficient procedures that follow may
not function correctly if Windows Internet Explorer is not
set up correctly. A user should verify these settings before
attempting these procedures.

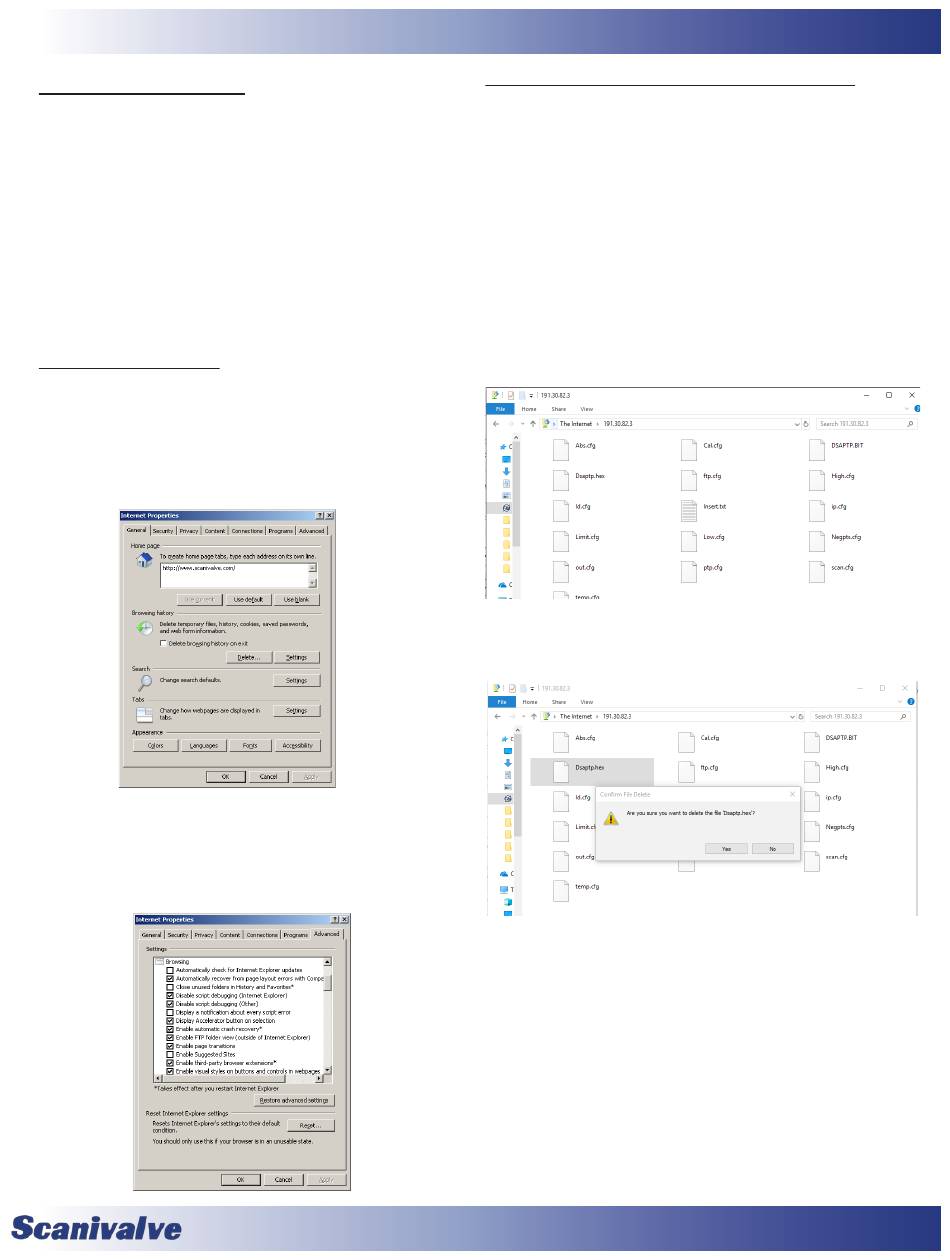

Internet Explorer Setup

1. Open Internet Explorer.
2. Click on Tools
3. Select Internet Options from the drop down menu.
The Internet Options window will open.
4. Click on the Advanced Tab to show the Advanced Set-
tings.
5. Scroll down to the Heading marked "Browsing"
6. Make sure that the line " Enable FTP Folder View
(Outside of Internet Explorer)" is checked. If this is not
enabled, Internet Explorer will block FTP file transfers.
7. Click OK to accept the settings.
DSA-PTP Firmware Installation (Windows 7 & 10)
NOTE: Some firewalls may block file transfers. We recom-
mend that firewalls be shut down for the procedures in this
section.
1. Connect a host computer to the Ethernet port.
2. Install the disk with the New or updated firmware
(Dsaptp.Hex & Dsaptp.Bit) into a drive.
3. Open My Computer or File Explorer.
4. In the Address Bar, type:
ftp://<IPAddress><Enter>
Where: <IPAddress> is the IP Address of the DSA-PTP.
5. The host computer should connect, If the connection
is successful, the contents of the DSA-PTP memory will
be displayed in a folder format.
6. Highlight the existing Dsaptp.Hex and Dsaptp.Bit files.
Right Click on it and select Delete. A window will open
to confirm the delete. Click Yes to delete the file.
7. Open Windows Explorer in another window. Find the
directory where the new Dsaptp.Hex and Dsaptp.bit
files are stored. Highlight the file and
Click: Edit
Click: Copy
8. Select the DSA-PTP window and,
Click: Edit
Click: Paste
The files will be copied to the DSA-PTP. A progress
window will provide progress information.
9. When the copy function is complete, the DSA-PTP
window will show the new file. The time and date will
