Cable Guide & Chassis Location
28
Procedures to check already installed cabling are listed in
Airflow". If your MIS NAS system is being installed on-site, install the needed cables as directed
in the following subsections.
For systems that have multiple chassis, determine the proper location for each chassis in the rack:
an MIS NAS Server can support up to four MIS JBOD enclosures. The NAS server is always
located between multiple JBOD enclosures, as seen in the example layouts in
Figure 2-18 (cable colors are for clarity and do not correspond with actual cable colors). MIS NAS
servers are connected to JBODs using SAS cables, while JBODs are connected to each other using
SAS HD cabling.
NAS HEAD
JBOD 0

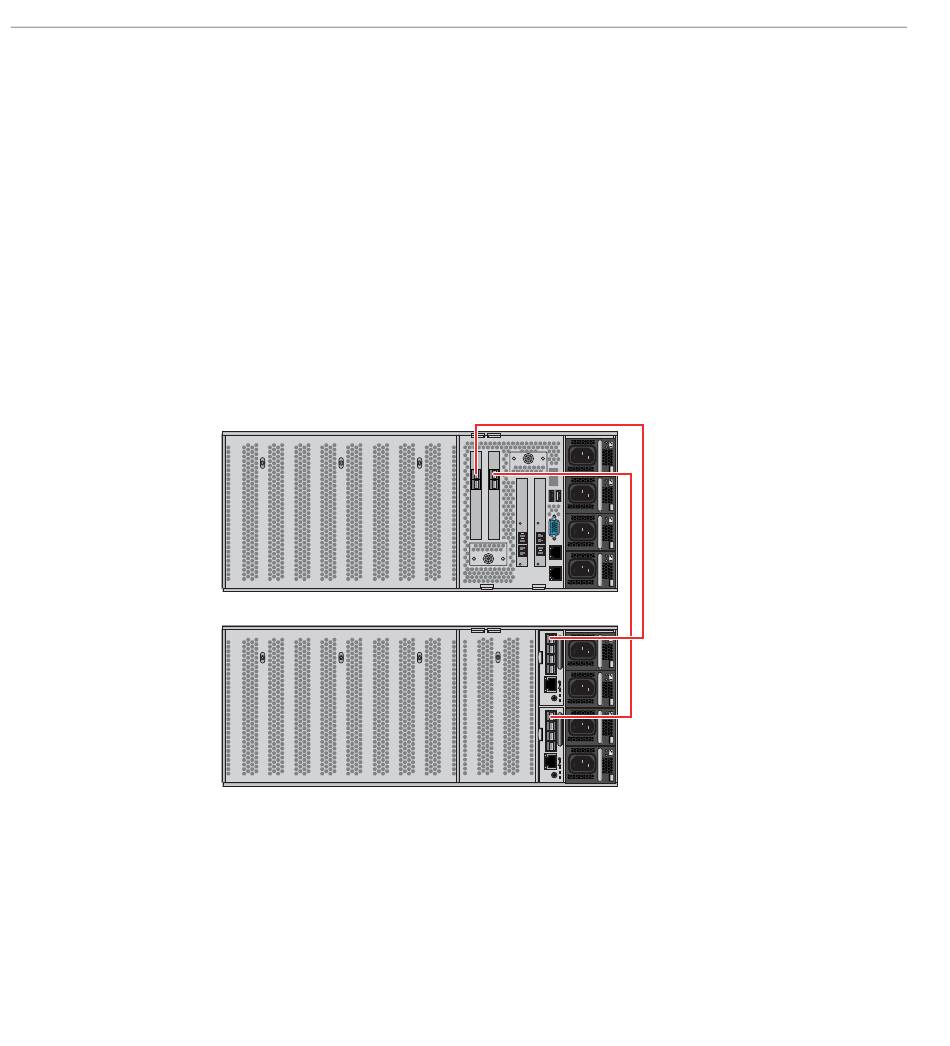

Figure 2-15 Cable Guide – Single Server with One JBOD
"Check all Cable Connections and
HD miniSAS
3
2
1
0
!
ExP
SxP
IOIOI
HD miniSAS
3
2
1
0
!
ExP
SxP
IOIOI
Figure 2-16 through
007-5921-001
