Installing the Rolling Rails

007-5921-001

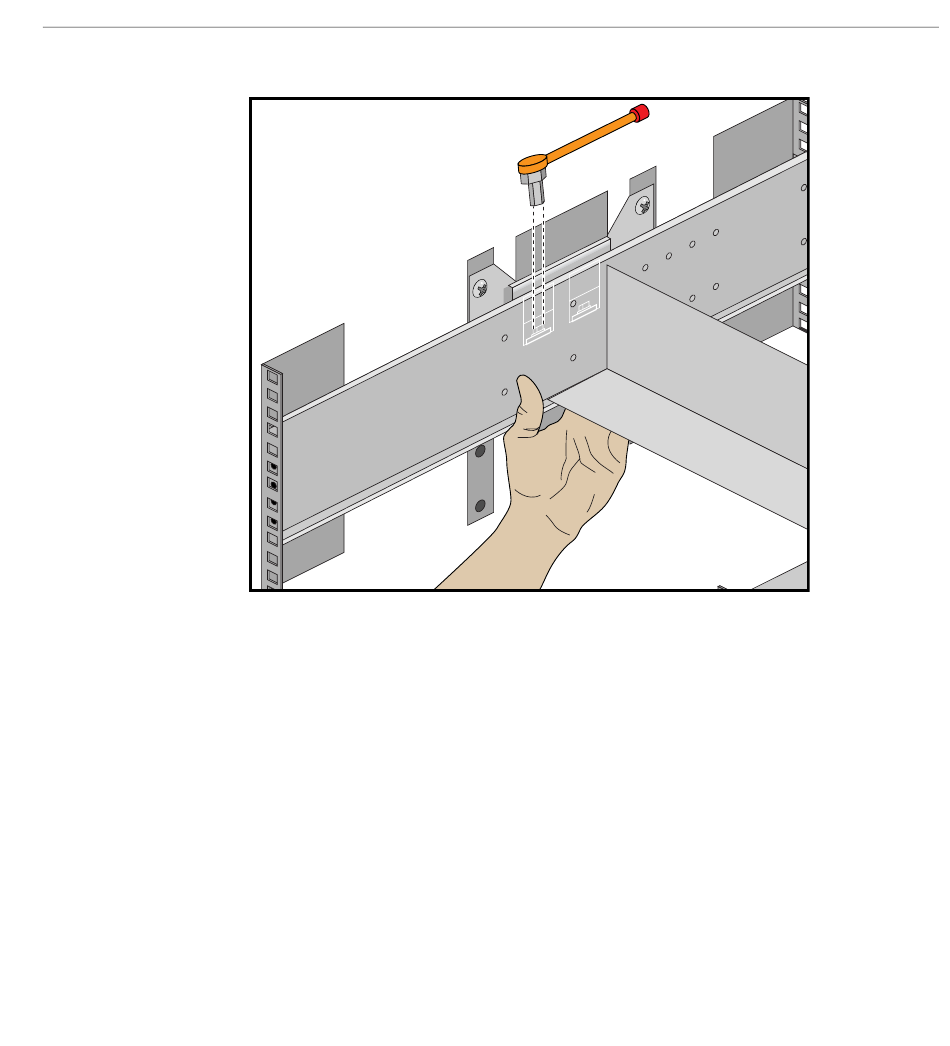

Figure 2-2 Alignment with the D-Rack Stiffener Vertical Bolt
These instructions are for installing the rolling rails on chassis shipped separately (i.e., not in a
rack).
The rolling rails are used to support the chassis in the rack and provide ease of movement out the
front and back of the rack, for easier and safer serviceability (see detail in
Installing the Rolling Rails
Figure 2-3 on page 14).
