Installing Drives in the MIS or JBOD Enclosure

007-5921-001
Drives are labeled with chassis, StorBrick, and drive information, reference
Figure 2-13 on page 26. To install the drives, first slide the chassis forward (see "Sliding the
Chassis Forward/Backwards" on page 23) out of the rack to access StorBricks 0 through 4.
s g i

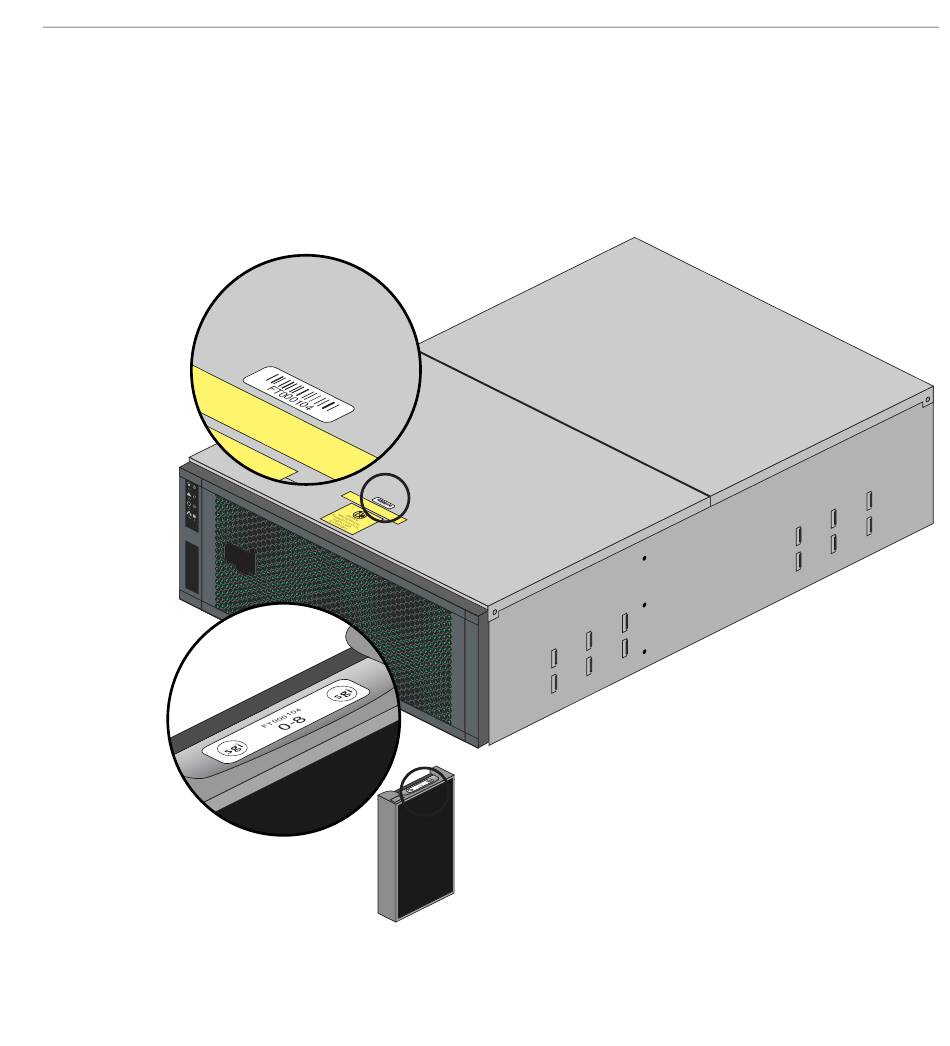

Figure 2-12 MIS NAS Chassis and Drive Label Location Example
Installing Drives in the MIS or JBOD Enclosure
Figure 2-12 and also
