2: MIS NAS System Hardware Installation
26
Drives must first be installed in drive carriers before being installed into the StorBricks. To install
a hard drive assembly into the StorBrick, perform the following steps:

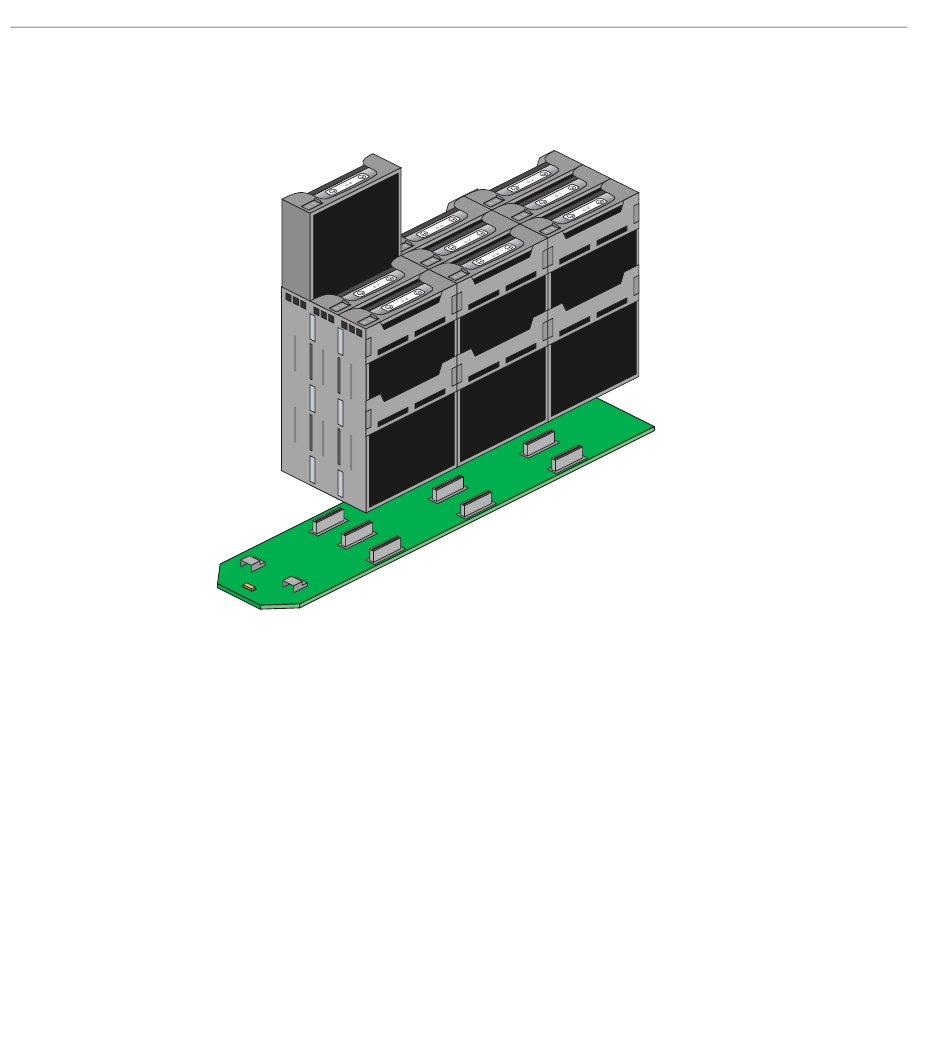

Figure 2-13 Example StorBrick Module with Drive in Carrier
1. Locate the drives for StorBricks 0-4 and order them on a cart according to the labels on the
drive carriers.
2. Pull the chassis from the front of the rack (see
page 23).
3. If you have not already done so, remove the front chassis cover by first removing its safety
screw, then by pressing the top cover button and lifting the cover from the chassis (see
"Removing the Front or Rear Chassis Cover" on page 23
information).
4. Place the corresponding drive into its drive slot and press firmly into the StorBrick, see the
example in Figure 2-14 on page
top of the drive carrier snaps into place.
"Sliding the Chassis Forward/Backwards" on
27. You will know the drive is in place when the latch on the
if you need additional
007-5921-001
