Installing the Air Ducts

007-5921-001

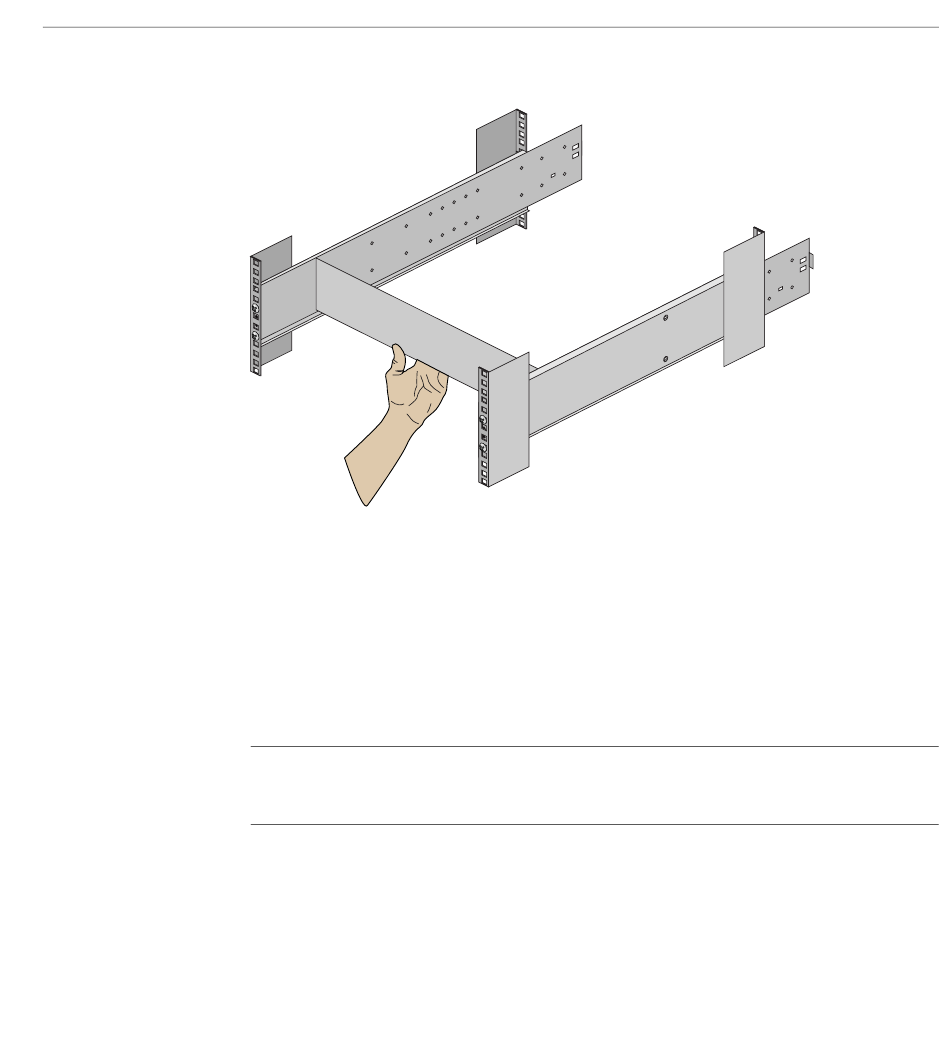

Figure 2-5
Slide the Alignment Tool from Front to Back
6. When satisfied, remove the alignment tool from the rack.
1. Place the left air duct above the left rail, see
2. Using its mounting screws, attach the air duct to the rack.
Note: Some air ducts use a Velcro strip in place of a second screw. If this is the case, place the
hook side of the Velcro on the air duct tab, and the fuzzy size of the Velcro on the outside of the
outer rail.
3. Repeat this for the right side.
Installing the Rolling Rails
Figure 2-6 on page 18 for an example.
17
