Installing The Outer Rails; Figure 2-3 Rolling Rails Example - Silicon Graphics NAS MIS Setup Manual

2: MIS NAS System Hardware Installation
s g i

Installing the Outer Rails

14

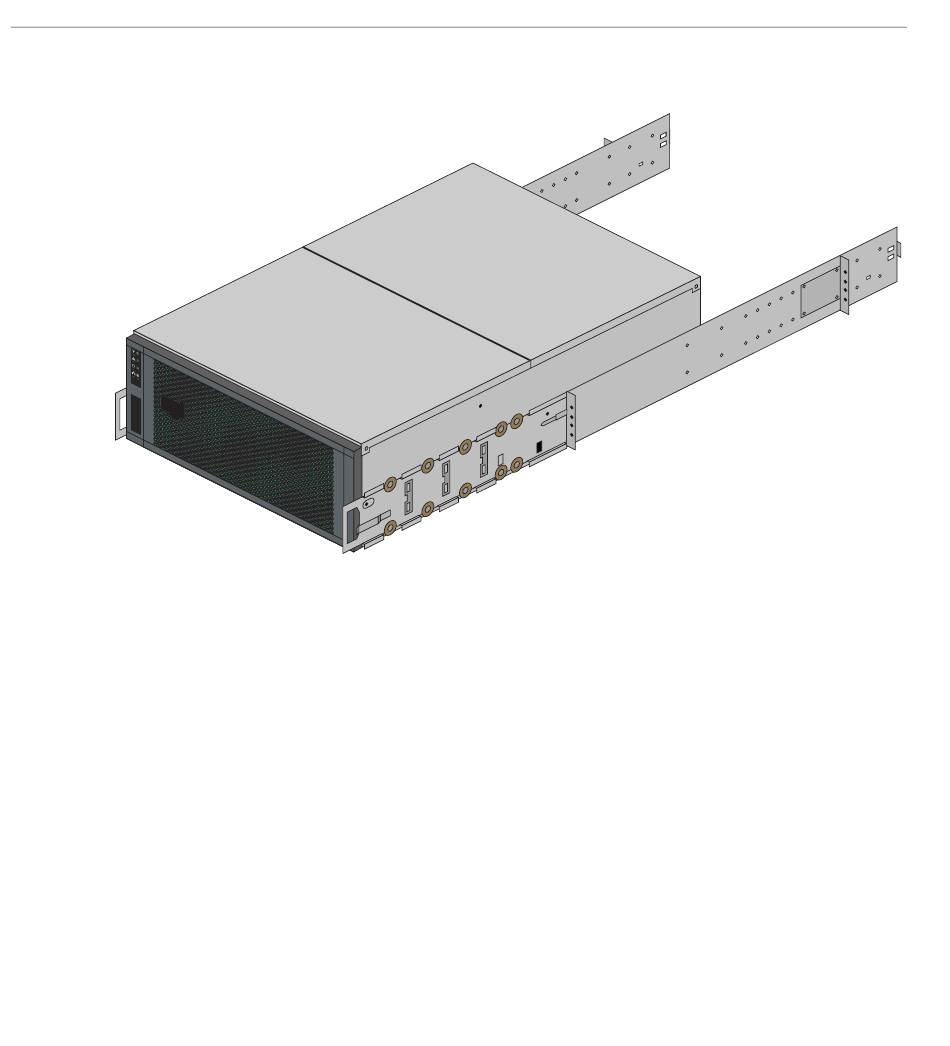

Figure 2-3
Rolling Rails Example
1. Hold up the outer rails to the rack to determine if the depth is correct.
2. If the rail cannot be secured to the rack at the front and rear, perform the following steps.
a. Remove the four screws that hold the rear mounting plate to the rail.
b. Move the rear mounting plate until the depth of the rail is correct for the depth of the
rack.
c. Secure the screws on the adjustment plate firmly in place.
For these next steps, it is helpful to use two people.
