2: MIS NAS System Hardware Installation
16
1
alignment tool
3

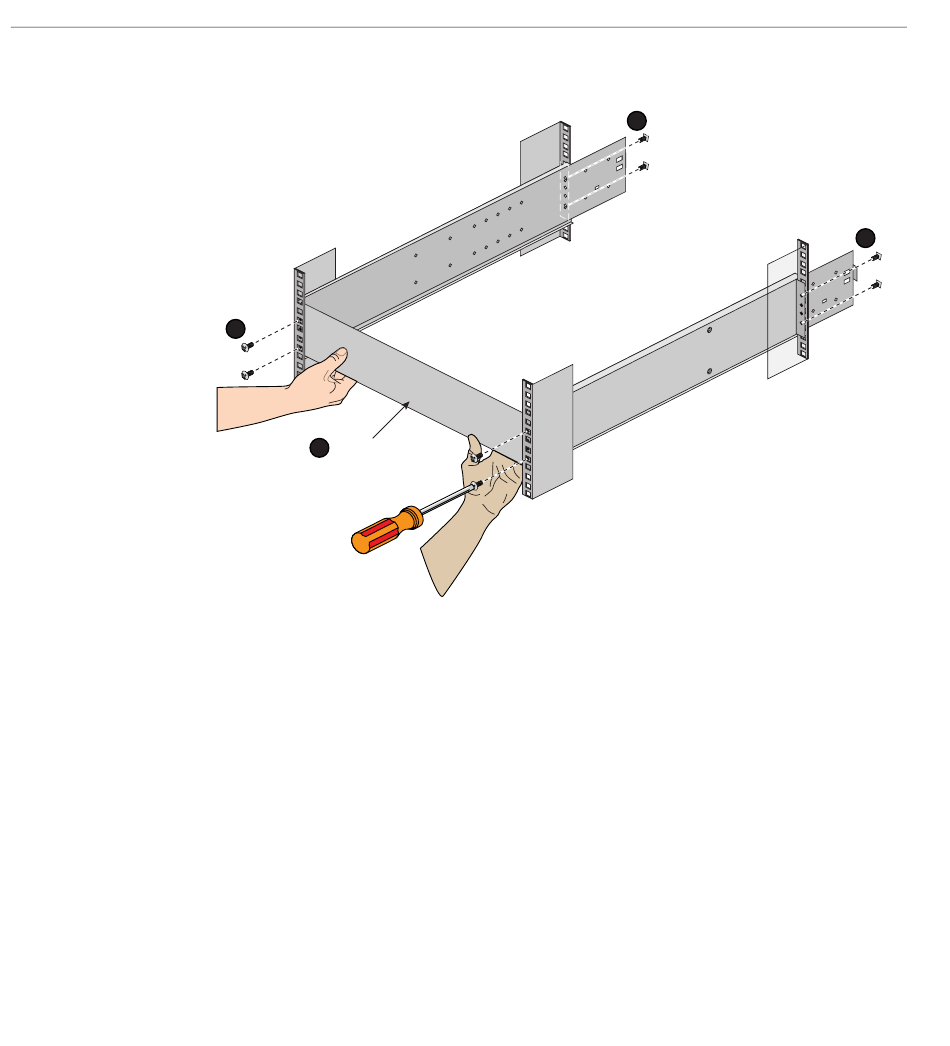

Figure 2-4
Adjustment Using the Alignment Tool
4. Tighten the screws on the right rail in order of front then back, leaving the middle bolts last
(for D-Racks), so as to keep as straight an alignment as possible.
5. Double-check the alignment by moving the alignment tool through the rack. There should be
no play between the alignment tool and the rails, see
2
4
Figure 2-5 on page 17
5
for an example.
