2: System Operation

Installing the Inner Rails

Installing the Outer Rails

14
Both the left and right side inner rails should have been pre-attached to the chassis as shown in the
example in Figure 2-2. Proceed to the next subsection for information on installing the outer rails
into a rack.

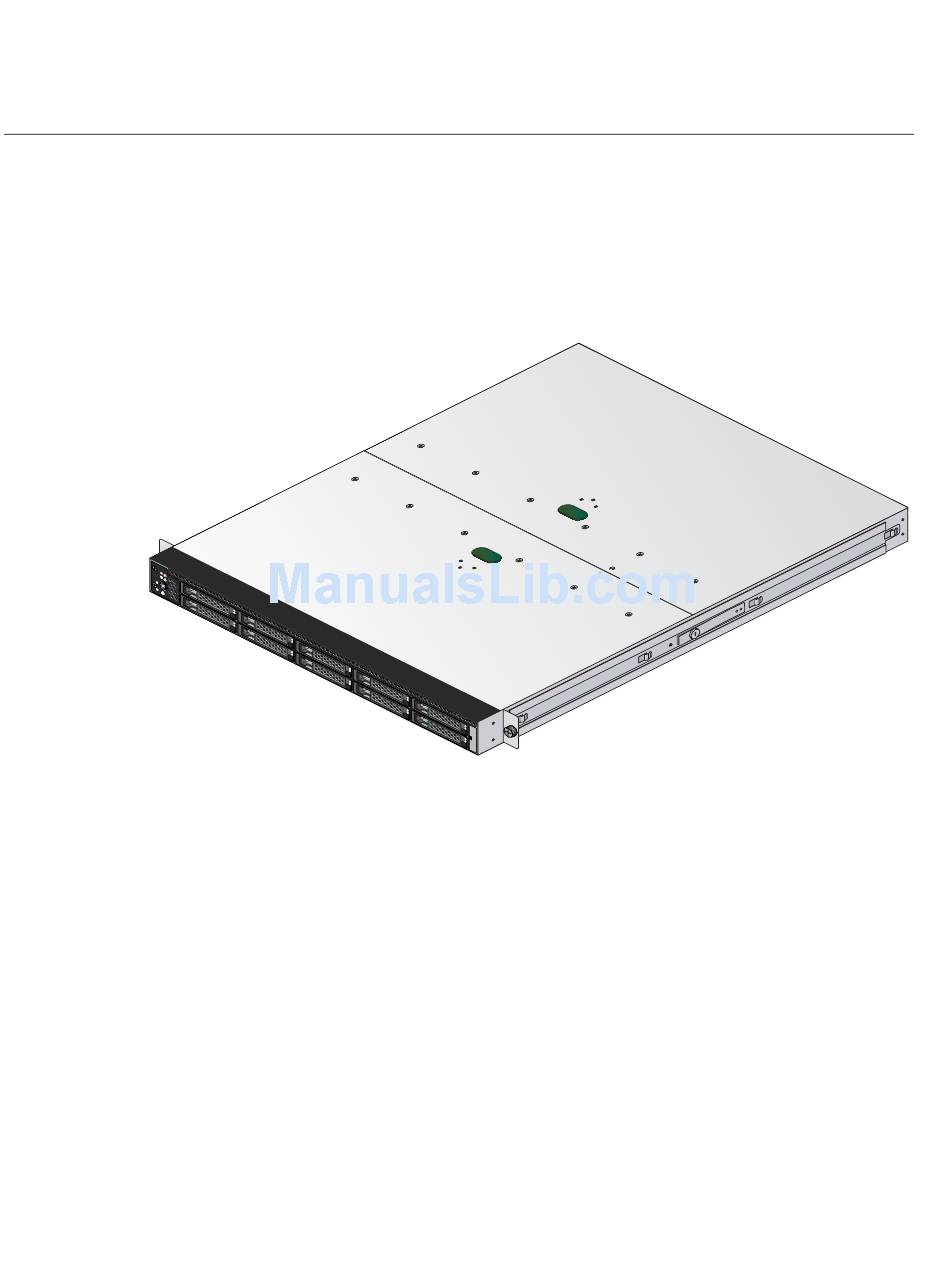

Figure 2-2
Chassis Attachment to Inner Rack Rails Example
Begin by measuring the distance from the front rail to the rear rail of the rack. Attach a short
bracket to the front side of the right outer rail and a long bracket to the rear side of the right outer
rail. Adjust both the short and long brackets to the proper distance so that the rail can fit snugly
into the rack.
Secure the short bracket to the front side of the outer rail with two M4 screws and the long bracket
to the rear side of the outer rail with three M4 screws. Repeat these steps for the left outer rail, see
Figure 2-3 on page 15 for an example.
