Installing the Inner Rails

Installing the Outer Rails

007-5536-001
Both the left and right side inner rails have been pre-attached to the chassis. Proceed to the next
step.
Begin by measuring the distance from the front rail to the rear rail of the rack. Attach a short
bracket to the front side of the right outer rail and a long bracket to the rear side of the right outer
rail. Adjust both the short and long brackets to the proper distance so that the rail can fit snugly
into the rack. Secure the short bracket to the front side of the outer rail with two M4 screws and
the long bracket to the rear side of the outer rail with three M4 screws. Repeat these steps for the
left outer rail.

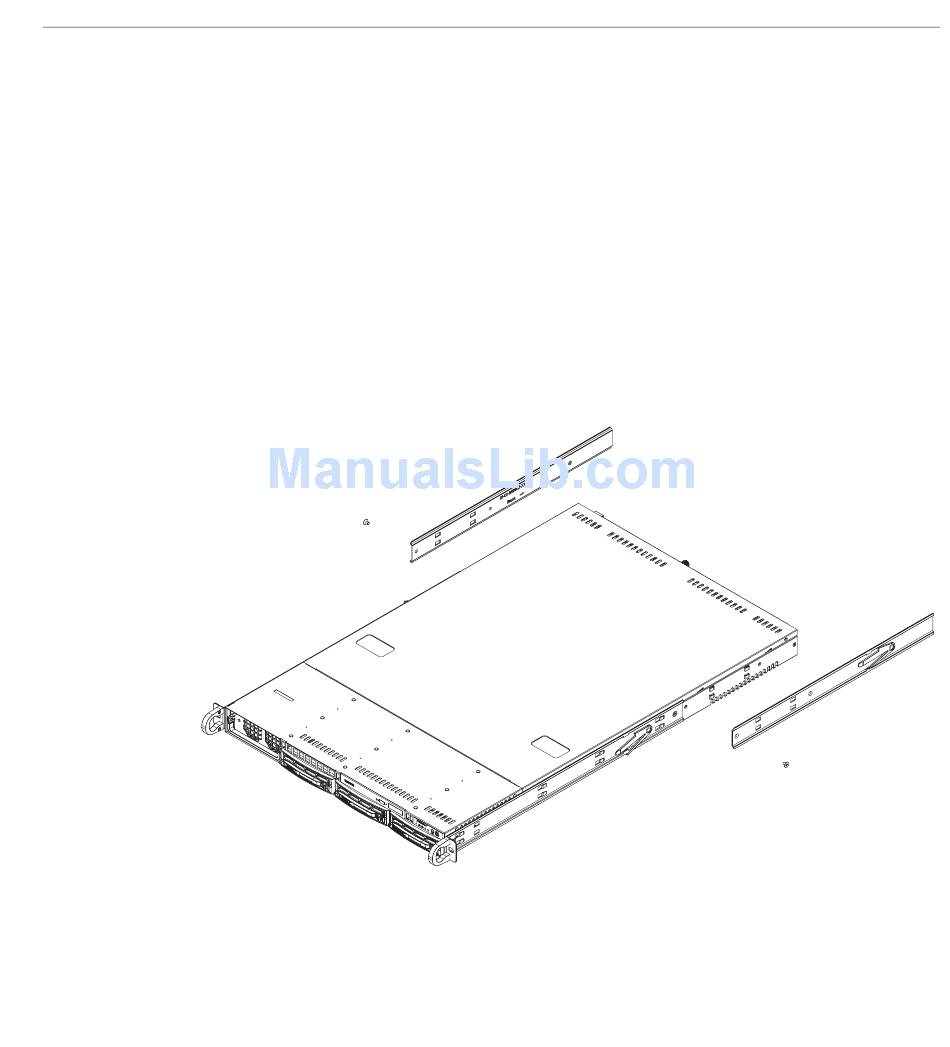

Figure 2-2 Chassis Attachment to Rack Rails
Installing the System into a Rack
13
