Note
An appropriate software license may be required for the second WAN (WAN 2) interface to work.

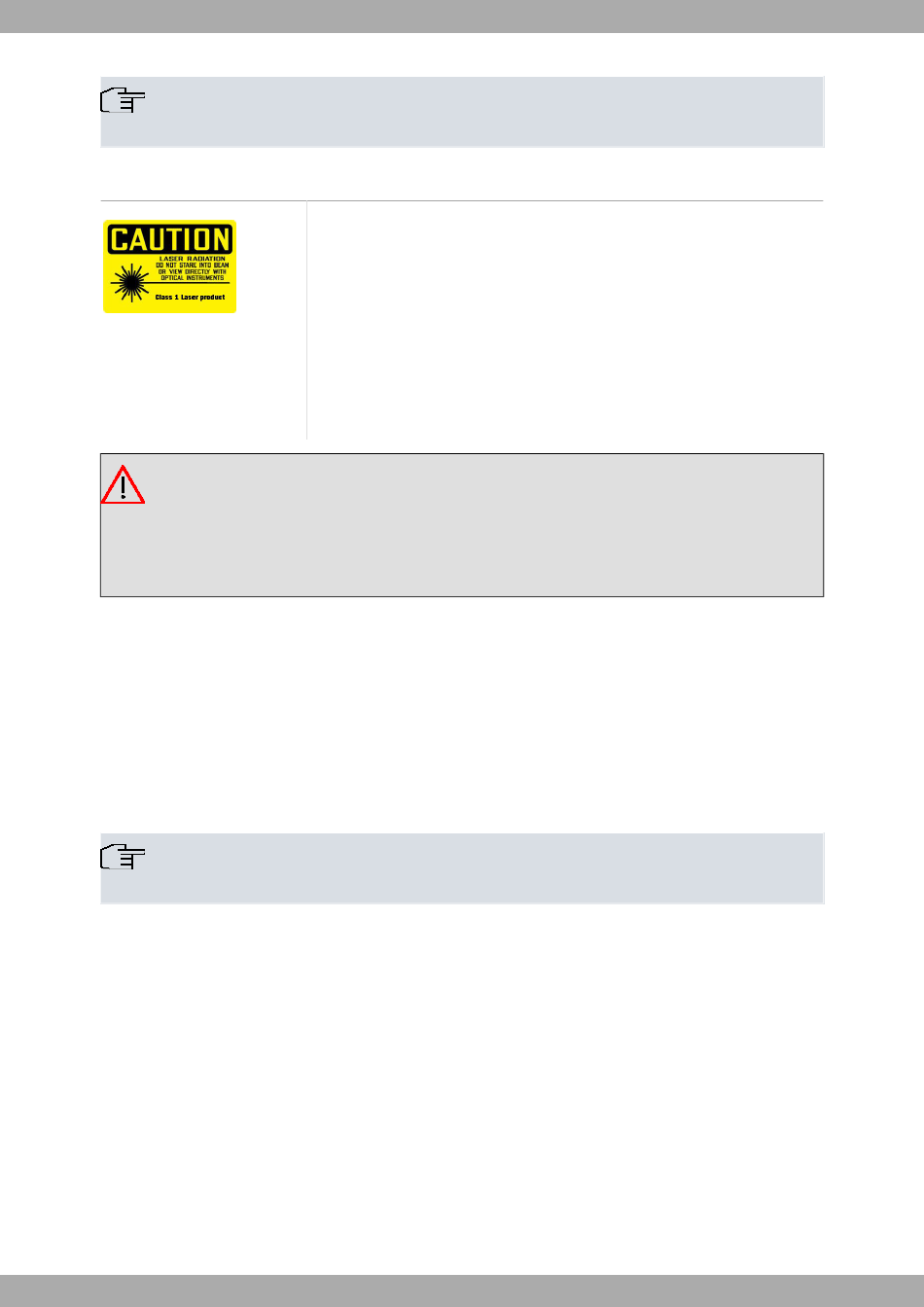

3.7.2.1 Laser information
Warning
Laser Radiation. Do not use optical instruments directly or without proper protection. CLASS 1 LASER
PRODUCT.
The SFP modules to be installed in the card socket should be class 1 devices that comply with the IEC/
EN 60825-1:2007 standard.

3.7.3 WWAN antenna connection

The Teldat Connect-FW5G model has four connectors for WWAN antennas on the rear and side panels (to install
the antennas provided).
To assemble or dismantle the antennas, simply screw or unscrew them into or out of the SMA connectors located on
the rear panel of the router.
Installing these antennas in the Teldat Connect-FW5G is essential to improve the quality of the signal received and
transmitted by the cellular model.
Note
To achieve high-quality performance, the router should always have the WWAN antennas installed.
Some cellular telephony technologies use the antenna diversity technique to improve the quality of the received sig-
nal . The Teldat Connect-FW5G router family incorporates several WWAN connectors for this.
Teldat Connect-FW5G
Choose SFP transceivers that meet the following regulations
• Class 1
• IEC/EN60825-1:2007 2nd Edition or a later one, European standard
• FCC 21 CFR Chapter 1, Subchapter J (in accordance with FDA and CDRH re-
quirements)
• Application of CE marking in accordance with the 2014/30/EU EMC Directive
and the 2014/35/EU Low Voltage Directive
• UL and/or CSA registered component for North America
• 47 CFR Part 15, Class A
