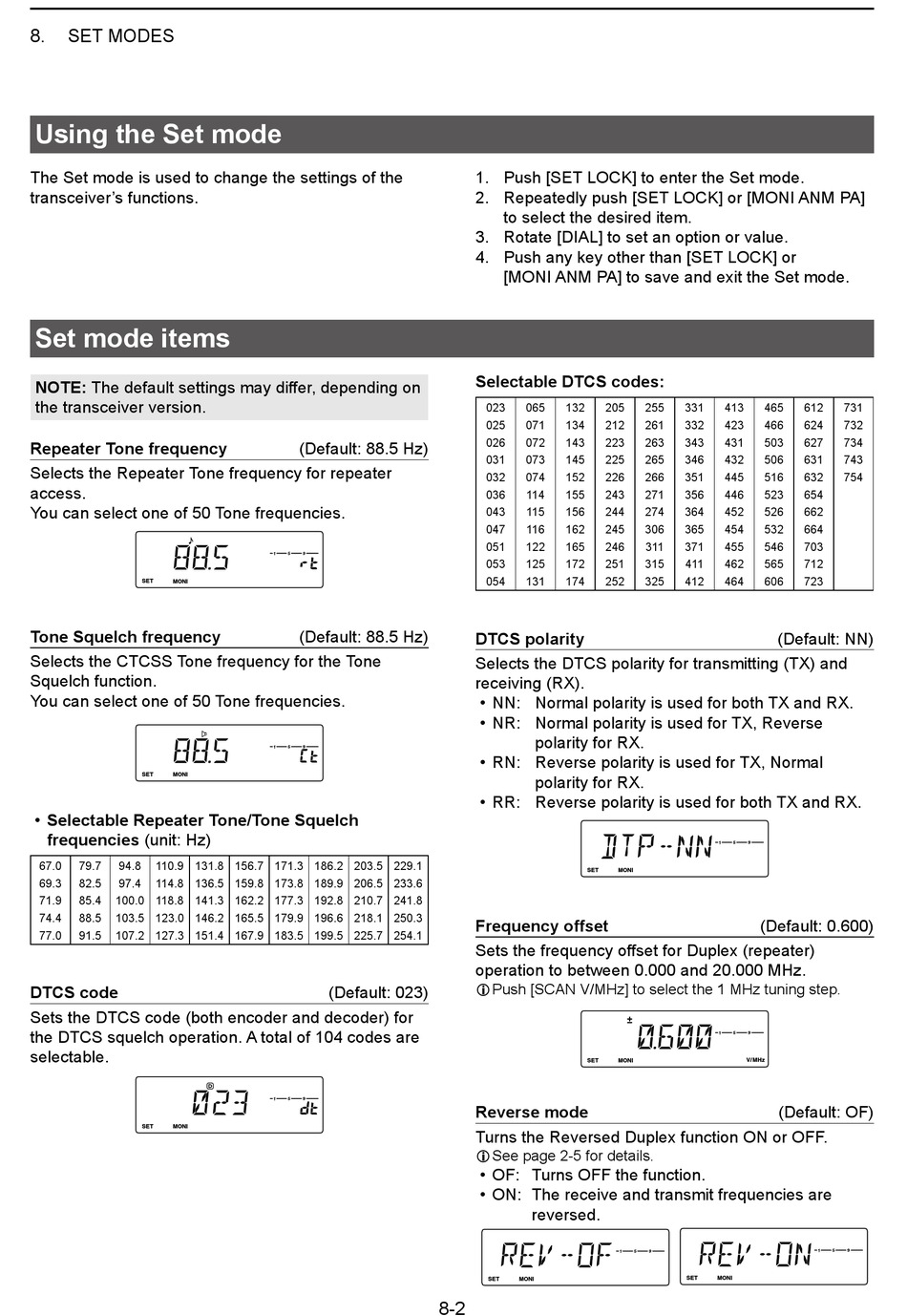

SET MODES
8.

Using the Set mode

The Set mode is used to change the settings of the
transceiver's functions�

Set mode items

NOTE: The default settings may differ, depending on
the transceiver version�
Repeater Tone frequency
Selects the Repeater Tone frequency for repeater
access�
You can select one of 50 Tone frequencies�
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
Tone Squelch frequency
Selects the CTCSS Tone frequency for the Tone
Squelch function�
You can select one of 50 Tone frequencies�
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
• Selectable Repeater Tone/Tone Squelch
frequencies (unit: Hz)
67�0 79�7 94�8 110�9 131�8
69�3 82�5 97�4 114�8 136�5
71�9 85�4 100�0 118�8 141�3
74�4 88�5 103�5 123�0 146�2
77�0 91�5 107�2 127�3 151�4
DTCS code
Sets the DTCS code (both encoder and decoder) for
the DTCS squelch operation� A total of 104 codes are
selectable�
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
(Default: 88�5 Hz)
DIGITAL PRIO AO BUSY
(Default: 88�5 Hz)
DIGITAL PRIO AO BUSY
156�7 171�3 186�2 203�5 229�1
159�8 173�8 189�9 206�5 233�6
162�2 177�3 192�8 210�7 241�8
165�5 179�9 196�6 218�1 250�3
167�9 183�5 199�5 225�7 254�1
(Default: 023)
DIGITAL PRIO AO BUSY
1� Push [SET LOCK] to enter the Set mode�
2� Repeatedly push [SET LOCK] or [MONI ANM PA]
to select the desired item�
3� Rotate [DIAL] to set an option or value�
4� Push any key other than [SET LOCK] or
[MONI ANM PA] to save and exit the Set mode�
Selectable DTCS codes:
023 065 132 205
025 071 134 212
026 072 143 223
031 073 145 225
032 074 152 226
036 114 155 243
043 115 156 244
047 116 162 245
051 122 165 246
053 125 172 251
054 131 174 252
DTCS polarity
Selects the DTCS polarity for transmitting (TX) and
receiving (RX)�
• NN: Normal polarity is used for both TX and RX�
• NR: Normal polarity is used for TX, Reverse
polarity for RX�
• RN: Reverse polarity is used for TX, Normal
polarity for RX�
• RR: Reverse polarity is used for both TX and RX�
MUTE
NAR
MID
LOW
LOCK
S ET
Frequency offset
Sets the frequency offset for Duplex (repeater)
operation to between 0�000 and 20�000 MHz�
L Push [SCAN V/MHz] to select the 1 MHz tuning step�
MUTE
NAR
MID
LOW
LOCK
S ET
Reverse mode
Turns the Reversed Duplex function ON or OFF�
L See page 2-5 for details�
• OF: Turns OFF the function�
• ON: The receive and transmit frequencies are
reversed�
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
8-2
255 331 413 465
261 332 423 466
263 343 431 503
265 346 432 506
266 351 445 516
271 356 446 523
274 364 452 526
306 365 454 532
311 371 455 546
315 411 462 565
325 412 464 606
(Default: NN)
DIGITAL PRIO AO BUSY
ANM
MONI
(Default: 0�600)
DIGITAL PRIO AO BUSY
ANM
V/ MHz
MONI
(Default: OF)
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM
S ET MONI
612 731
624 732
627 734
631 743
632 754
654
662
664
703
712
723
