TONE SQUELCH AND POCKET BEEP
7.
Pocket Beep function
Using the HM-133V microphone
1 Set the operating frequency
2 Push [SET B D-OFF] to enter the Set mode
3 Set the Tone Squelch frequency, or DTCS code
and DTCS polarity
L See page 7-2 for details
4 Push [CLR A MW] to save and exit the Set mode
5 Push [FUNC], and then [DUP+ 8 TSQL
[MID 5 DTCS ] to display " " and " " or " " and
" "
• " " and " ": The CTCSS Pocket Beep function
• " " and " ": The DTCS Pocket Beep function
6 Operate normally
L To turn OFF the function, push [FUNC], and then
[ENT C T-OFF]
7 When a signal with matching tones or codes is
received, the beep tones sound and " " blinks
L The beeps sound for 30 seconds
To stop the beeps and the tone icon blinking, push
any key
L When the beep tones are not manually stopped, " "
continues blinking until [PTT] is pushed
L After any key is pushed, " " disappears and the
function is turned OFF
8 Push [PTT] to answer
DCalling a waiting station using the
Pocket Beep function
A subaudible tone matched with the waiting station's
tone or code with correct polarity is needed Use the
Tone or DTCS squelch, or a subaudible tone encoder
(pp 2-6, 7-2)

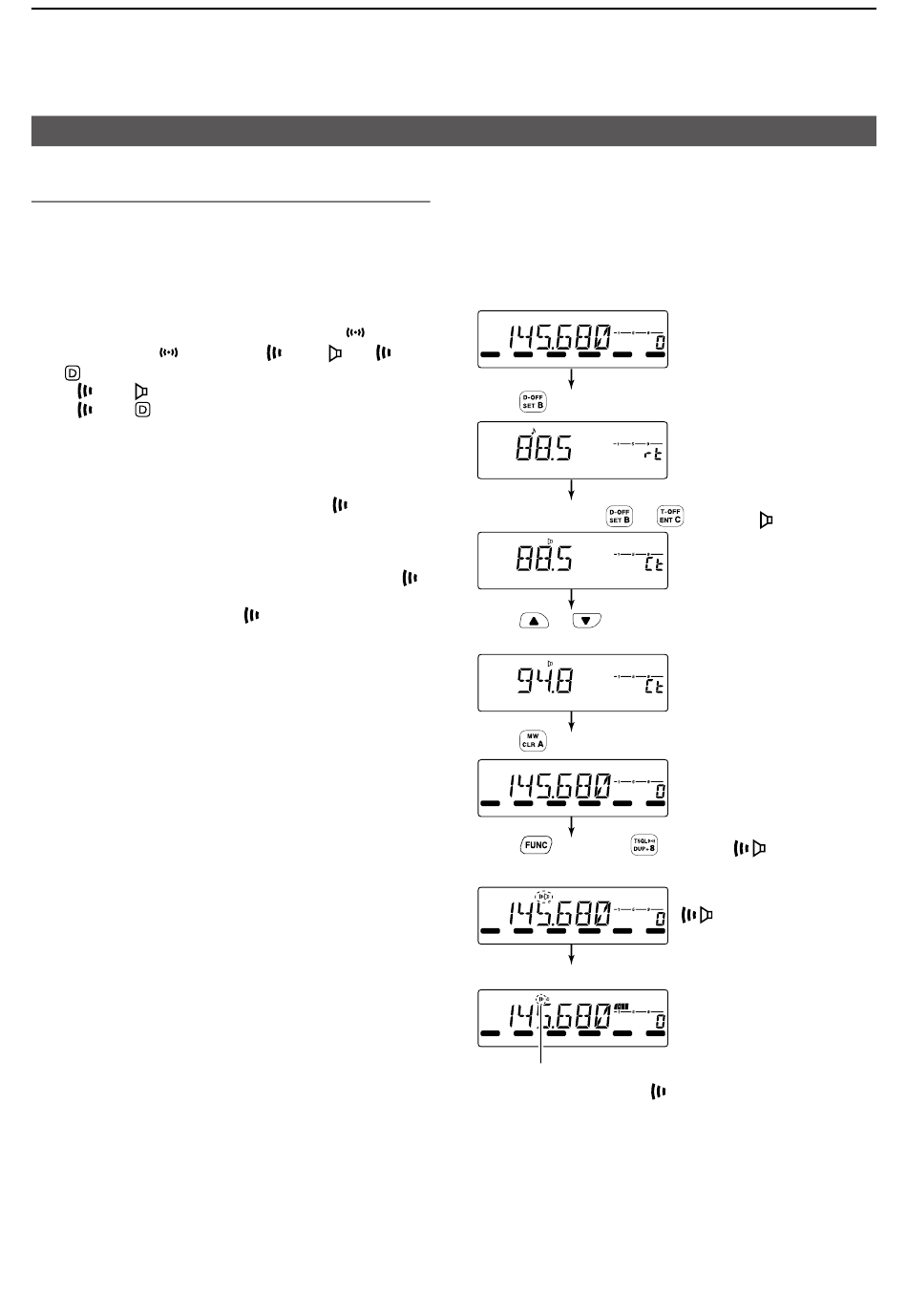

Example: Setting the Tone squelch frequency and
