Slide-in-Modules

2.1

Media Converter Slide-in-Modules

Transition Networks media converter slide-in-modules, installed in slots at the front
of the chassis, allow the network administrator to connect various copper and fiber-
optic network media over protocols that include Ethernet, Fast Ethernet, DS3/E3,
and OC-12 as well as many others (see www.transition.com for a complete listing.)
NOTE:
module for cable, connector, and LED indicator information specific to that media
converter slide-in-module.
2.1.1

Chassis Face Plates

CAUTION:
installed MUST have a protective chassis face plate (P/N CPSFP-200) covering the
empty slot for Class A or Class A & B compliance.

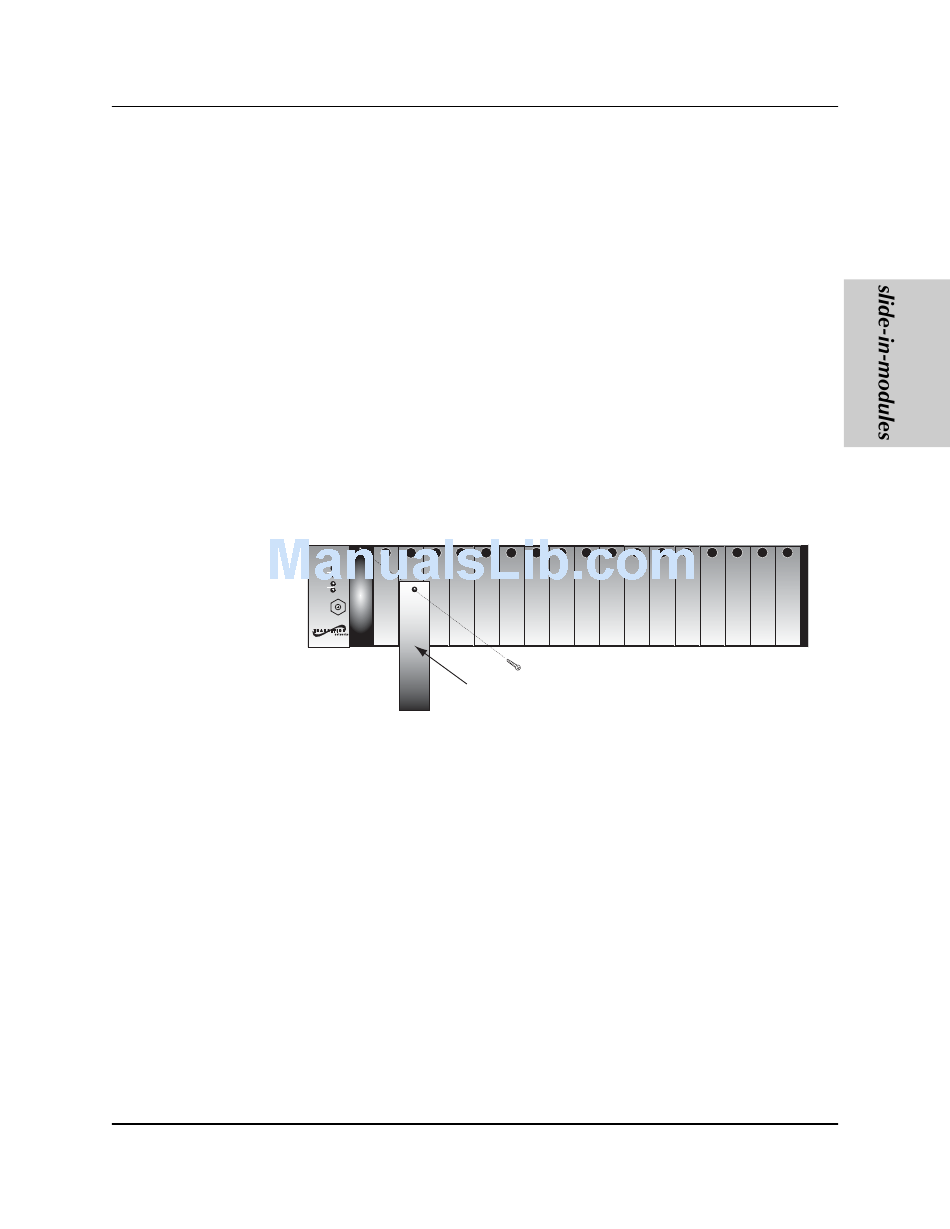

Install a chassis face plate over any unused chassis slot by aligning the hole in the
face plate with the threaded hole in the chassis. Secure the face place with the
enclosed bolt.
2.1.2

Calculating the Power Consumption

CAUTION:
power consumption data for each individual media converter (provided in the user's
guide shipped with each media converter). The combined power consumption of
all devices must not exceed the available power supply. Failure to observe this
caution could result in diminishing system reliability.
In other words, the combined power requirements of the CPSMC18xx-xxx chassis
plus all slide-in-modules must be less than the available power.
Contact Transition Networks Tech Support to ensure the power requirements for
your specific application do not exceed the available power.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Refer to the user's guide that comes with each media converter slide-in-
Slots in the CPSMC18xx-xxx chassis without a slide-in-module
Conversion
Center PS
Power
1
In Use
Power
2
In Use
ESD
Gnd.
Term.
CPSMC1800 CPSMC1800
Chassis Face Plate
Before installing the media converter slide-in-modules, refer to the
CPSMC18xx-xxx PointSystem ™ Chassis
