CPSMC13xx-100
13-Slot PointSystem™ Chassis
User's Guide
Revision D
CPSMC1300-100
CPSMC1310-100
CPSMC1320-100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PointSystem CPSMC1320-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks PointSystem CPSMC1320-100

Summary of Contents for Transition Networks PointSystem CPSMC1320-100

  • Page 1 Transition Networks CPSMC13xx-100 13-Slot PointSystem™ Chassis User’s Guide Revision D CPSMC1300-100 CPSMC1310-100 CPSMC1320-100...

  • Page 2: Compliance Information

    CPSMC13xx-100 PointSystem™ Chassis Compliance Information UL Listed C-UL Listed (Canada) CISPR22/EN55022 Class A + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules.

  • Page 3: Table Of Contents

    Table of Contents Introduction ........4 Description .

  • Page 4: Introduction

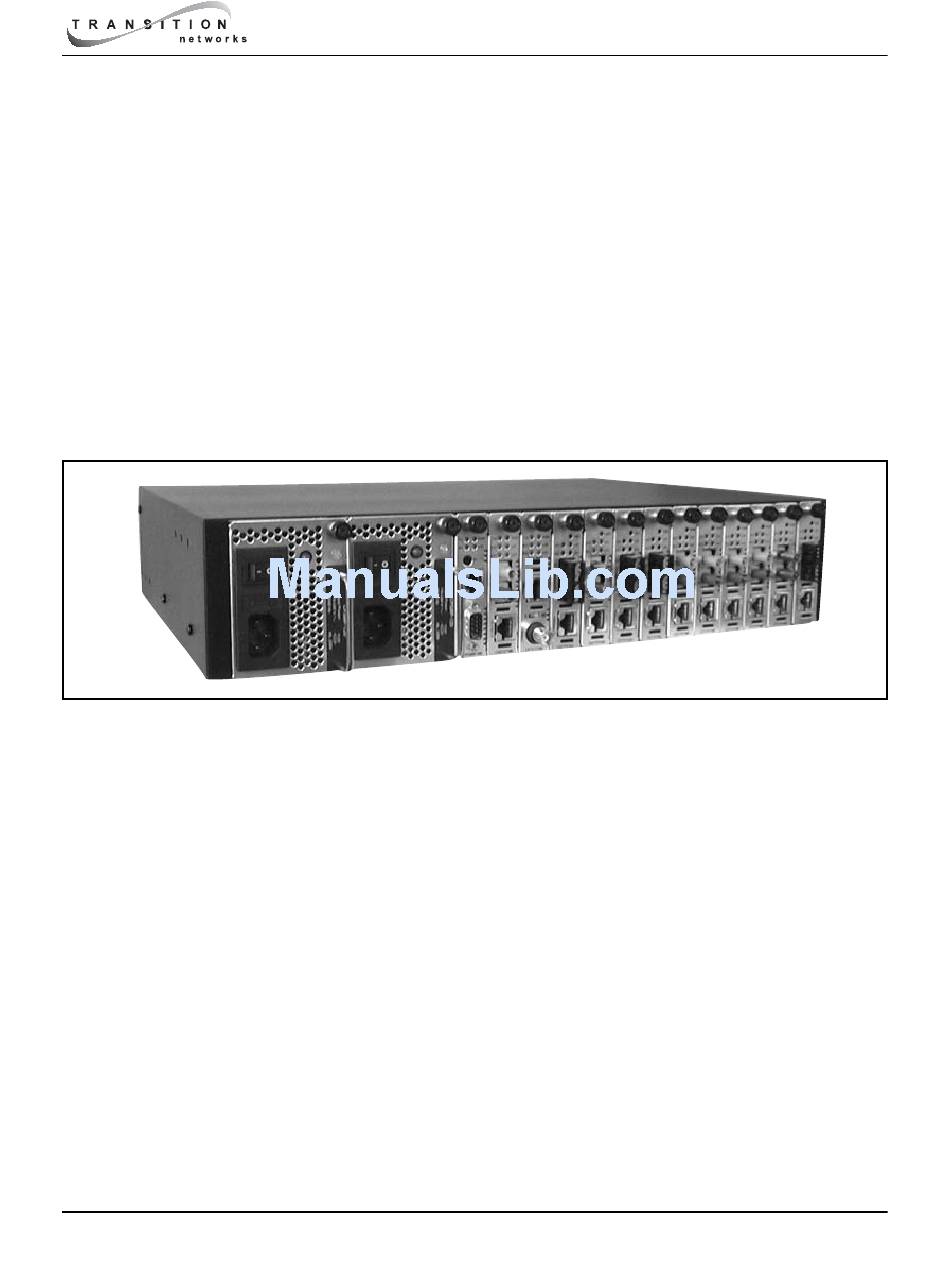

    Introduction Description The Transition Networks CPSMC13xx-100 13-Slot PointSystem™ chassis is a 19- inch, rack-mountable chassis for selected Transition Networks media converter slide-in-modules. The CPSMC13xx-100 chassis allows the network administrator to connect various copper and fiber-optic network media over protocols that include Ethernet, Fast Ethernet, DS3/E3, and OC-12 and many others.

  • Page 5: Unpacking The Cpsmc13Xx-100 Equipment

    Management Module Cascade Connector 23-inch Rack Mount Ears Selectable Media Converter Slide-in-Module(s) 24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600 CPSMC13xx-100 PointSystem™ Chassis Part Number CPSMC1300-100 CPSMC1310-100 CPSMC1320-100 CPSFP-200 (varies by country) 33208 Part Number CPSMP-120 (optional) CPSMP-130 (optional) CPSMP-140 (optional)

  • Page 6: Slide-In-Modules

    Slide-in-Modules Media Converter Slide-in-Modules Transition Networks media converter slide-in-modules, installed in slots at the front of the chassis, allow the network administrator to connect various copper and fiber- optic network media over protocols that include Ethernet, Fast Ethernet, DS3/E3, and OC-12 as well as many others (see www.transition.com for a complete listing). NOTE: Refer to the specific user’s guide that comes with each media converter slide-in-module for cable, connector, and LED indicator information.

  • Page 7: Installing Media Converter Slide-In-Modules

    2.1.3 Installing the Media Converter Slide-in-Modules CAUTION: precautions when installing the slide-in-module(s). Failure to observe this caution could result in damage to, and subsequent failure of, the slide-in-module(s). NOTE: The slide-in-modules can be installed in any installation slot, in any order. To install the slide-in-module into the CPSMC13xx-100 chassis: 1.

  • Page 8: Replacing Media Converter Slide-In-Modules

    2.1.4 Replacing the Media Converter Slide-in-Modules CAUTION: precautions when replacing the slide-in-module(s). Failure to observe this caution could result in damage to, and subsequent failure of, the slide-in-module(s). NOTE: The media converter slide-in-modules can be hot-swapped. To replace a media converter slide-in-module: 1.

  • Page 9: Management Modules

    Management Modules Optional network management is provided by SNMP software embedded in Transition Networks PointSystem the CPSMC13xx-100 chassis. Transition Networks provides two such modules: • CPSMM-120 Single-Slot Master Management Module. • CPSMM-200 Dual-Slot Master Management Module. Along with an additional expansion module: •...

  • Page 10: Installing The Management Modules

    2.2.2 Installing the Management Modules CAUTION: precautions when installing the management module into the CPSMC13xx-100 chassis. Failure to observe this caution could result in damage to, and subsequent failure of, the management module. NOTE: Transition Networks recommends installing the management module into the left-most installation slot to keep the management module cables separate from the media converter cables.

  • Page 11: Replacing The Management Modules

    2.2.3 Replacing the Management Modules CAUTION: precautions when replacing the management module(s). Failure to observe this caution could result in damage to, and subsequent failure of, the management module(s). NOTE: The management modules can be replaced while the chassis remains powered.

  • Page 12: Powering The Cpsmc13Xx-100

    Powering the CPSMC13xx-100 CPSMP-120 Power Supply Module (AC) The CPSMC1300-100 PointSystem™ chassis is equipped with an AC power supply module (P/N CPSMP-120) installed in the front of the chassis. The power supply module supplies power to the chassis, installed media converter slide-in-modules, and management modules.
  • Page 13 Powering the AC Power Supply Module To power the CPSMC1300-100 chassis through the CPSMP-120 AC power supply module: 1. Set the On/Off switch to “0”. 2. Connect the female end of power cord to the power receptacle on the power supply module.

  • Page 14: Cpsmp-130 Power Supply Module (48-Vdc)

    CPSMP-130 Power Supply Module (48-VDC) The CPSMC1310-100 chassis is equipped with a 48-VDC power supply module (P/N CPSMP-130) installed in the front of the chassis. The power supply module supplies power to the chassis, installed media converter slide-in-modules, and management modules. On/Off Switch The components of the CPSMP-130 48-VDC power supply module include: •...
  • Page 15 Read and follow all warning notices & instructions marked on the product or included in the manual. CAUTION: All installation and service must be performed by qualified service personnel. CAUTION: Ensure that the external power source is NOT powered and that the On/Off switch is set to “0”...

  • Page 16: Cpsmp-140 Power Supply Module (24-Vdc)

    CPSMP-140 Power Supply Module (24-VDC) The CPSMC1320-100 chassis is equipped with a 24-VDC power supply module (P/N CPSMP-140) installed in the front of the chassis. The power supply module supplies power to the chassis, installed media converter slide-in-modules, and management modules.
  • Page 17 20A circuit breaker or switch) must be included in the ungrounded supply conductor. Overcurrent protection must be a 24 VDC, 15 or 20A fuse or circuit breaker. To power the CPSMC1320-100 chassis through the CPSMP-140 24-VDC power supply module: 1. Set the On/Off switch to “0”.

  • Page 18: Optional Dual Power Supply Modules

    Optional Dual Power Supply modules Alternatively, two different types of power supplies may be installed in any of the CPSMC13xx-100 chassis, where one power supply is the primary and the other is the back up. AC Power Supply The drawing above shows one AC power supply and one DC power supply. However, the CPSMC13xx-100 chassis can accommodate any combination of AC, 48-VDC and 24-VDC power supplies.

  • Page 19: Power Supply Module Maintenance

    Warning: Do NOT connect the power supply module to the external power source before installing it into the chassis. Failure to observe this caution could result in equipment damage and/or personal injury or death. Power Supply Module Maintenance 3.5.1 Installing the Power Supply Module The AC and DC modules are installed in the same manner: 1.

  • Page 20: Replacing The Power Supply Module

    Warning: Do NOT connect the power supply module to the external power source before installing it into the chassis. Failure to observe this caution could result in equipment damage and/or personal injury or death. 3.5.2 Replacing the Power Supply Module NOTE: Any of the power supply modules may be “hot swapped”...

  • Page 21: Replacing The Power Supply Fuse

    Warning: Do NOT connect the power supply module to the external power source before installing it into the chassis. Failure to observe this caution could result in equipment damage and/or personal injury or death. 3.5.3 Replacing the Power Supply Fuse Replacing the AC Fuse CAUTION: precautions when replacing the fuse in the power supply module.
  • Page 22 Warning: Do NOT connect the power supply module to the external power source before installing it into the chassis. Failure to observe this caution could result in equipment damage and/or personal injury or death. Replacing the 48-VDC or 24-VDC Fuse CAUTION: precautions when replacing the fuse in the power supply module.

  • Page 23: Table Top Installation

    CPSMC13xx-100 Chassis Installing the CPSMC13xx-100 Chassis The CPSMC13xx-100 can be installed in a standard 19-inch rack or on a table, shelf, or other stable surface. CAUTION: Install the chassis so that the air flow around it is not restricted. 4.1.1 Table-Top Installation The CPSMC13xx-100 chassis is shipped with nine (9) rubber feet for optional installation on a table or other flat, stable surface in a well-ventilated area.
  • Page 24 To install the CPSMC13xx-100 chassis into a standard 19-inch rack: 1. Determine the preferred alignment of the chassis in the rack. NOTE: Installation bracket mounting screws are provided. Rack mount screws and clip nuts are NOT provided. 2. Locate six (6) installation bracket mounting screws (provided) for each chassis to be installed.

  • Page 25: Grounding Lugs

    4.1.3 Grounding Lugs The CPSMC13xx-100 comes equipped with grounding lugs, which are provided for a grounding conductor wire terminated with a two-hole, compression-type, grounding connector. The grounding wire -- which must be a copper conductor -- is not included with the chassis and must be provided by the customer/installer. The electrical conducting path from the chassis must: •...

  • Page 26: Cascade Option

    Cascade Option The management module cascade option allows the network administrator to connect up to eight (8) chassis into one manageable stack, providing a single management source for up to 95 conversion devices. To create the cascade option, the CPSMM-200 Dual Slot Master management module is installed in the first chassis in the series.
  • Page 27 Cascading multiple CPSMC13xx-100 chassis To cascade two or more chassis: 1. Locate one (1) Transition Networks management module cascade cable (with RJ-45 connectors installed at both ends) (P/N 6026) for each set of two (2) chassis to be cascaded. NOTE: Transition Networks management module cascade cables are one (1) meter long.

  • Page 28: Connecting The Slide-In-Modules To The Network

    Connecting the Slide-in-Modules to the Network Once the CPSMC13xx-100 chassis has been installed, the media converter slide-in- modules may be connected to the network. CAUTION: connectors within the same network protocol (such as Ethernet-to-Ethernet, Fast Ethernet-to-Fast Ethernet, ATM-to-ATM). Failure to observe this caution will cause data transfer to fail.

  • Page 29: Network Management

    Network Management The CPSMM100 firmware and the FocalPoint™ application are described in the FocalPoint™ 2.0 Management Application and CPSMM100 Firmware user’s guide (P/N 33293). This manual is included on the application CD and is also available on-line at www.transition.com. Transition Networks CPSMM100 firmware is embedded in the optional management modules (see section 2.2).
  • Page 30 DB-9 Serial Port The DB-9 serial port allows the network administrator to configure and manage the CPSMC13xx-100 chassis using the SNMP Command-Line Interface (CLI) at an attached terminal or terminal emulator. Use a null modem cable to attach a terminal to the DB-9 serial port on the management module as shown.

  • Page 31: Troubleshooting

    Troubleshooting 1. Are any of the POWER LEDs on any of the slide-in-modules illuminated? • The chassis is receiving power. Proceed to the next step. • Check all power supply cables for proper connection. • For AC power: Ensure the AC receptacle on the wall is supplying power. •...

  • Page 32: Technical Specifications

    Technical Specifications For use with Transition Networks Model CPSMC13xx-100 or equivalent. Dimensions Weight MTBF (Mean Time Before Failure) Chassis w/ AC Power Chassis w/ DC Power CPSMP-120 Power Supply Module Power Input: Power Output: CPSMP-130 Power Supply Module Power Input: Power Output: CPSMP-140 Power Supply Module Power Input:...

  • Page 33: Cable Specifications

    Cable Specifications Null Modem Cable The Null Modem Cable is used for connecting a terminal or terminal emulator to the management module’s DB-9 connector to access the command-line interface. The table below shows the pin assignments for the DB9 cable. Function Carrier Detect Receive Data...

  • Page 34: Coax Cable

    COAX Cable Coaxial cable media is used for circuits such as DS3, E1 and 10Base-2 Ethernet. The impedance of the coaxial cable is determined by the interface type, for example: • 75 ohm for DS3. • 50 ohm for 10Base-2 Ethernet. Special attention should be given to the grounding requirements of coaxial cable circuits.

  • Page 35: Technical Support

    Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: PointSystem Part Number: CPSMC1300-100, CPSMC1310-100, CPSMC1320-100 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the PointSystem conformity with the following standards. CISPR 22:1993; EN 55022:1998; EN 55024:1998 Class A; UL 60950:2000; 21 CFR subpart J;...

  • Page 36: Warranty

    Warranty Limited Lifetime Warranty This warranty is effective for products shipped May 1, 1999 and after. Transition Networks' labeled product purchased after May 1, 1999 will be free from defects in material and workmanship for its lifetime. This warranty covers the original user only and is not transferable.
  • Page 37 CPSMC13xx-100 PointSystem ™ Chassis Transition Networks will pay for the shipping of the repaired or replaced in-warranty product(s) back to the customer (any and all customs charges, tariffs, or/and taxes are the customer's responsibility). Before making any non-warranty repair, Transition Networks requires a $200.00 charge plus actual shipping costs to and from the customer.
  • Page 38 CPSMC13xx-100 PointSystem ™ Chassis...

This manual is also suitable for:

Pointsystem cpsmc1300-100Pointsystem cpsmc1310-100
