Transition Networks PointSystem CPSMC0100-200 User Manual

Single-slot chassis
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Enlarged version
Part Number
Description
CPSMC0100-200
Single-Slot PointSystem™ chassis intended for installation of
any PointSystem media converter slide-in-modules up to 6 W.
Note: The following media converter families are not compatible with Transition
Networks CPSMC0100-200 single-slot PointSystem™ chassis: C4TEF,
CAPTF, CBFTF-120, CBFTF-140, CEMTF, CGFEG and the CMEFG.
Optional Accessories (sold separately)
Part Number
Description
SPS-1872-SA
Optional External Power Supply; 18-72VDC Stand-Alone
Output: 12.6VDC, 1.0 A
WMBP
Optional Wall Mount Bracket; 5.0 in. (127 mm)
WMBV
Optional Vertical Mount Bracket; 5.0 in. (127 mm)
WMBD
Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)
User's Guide

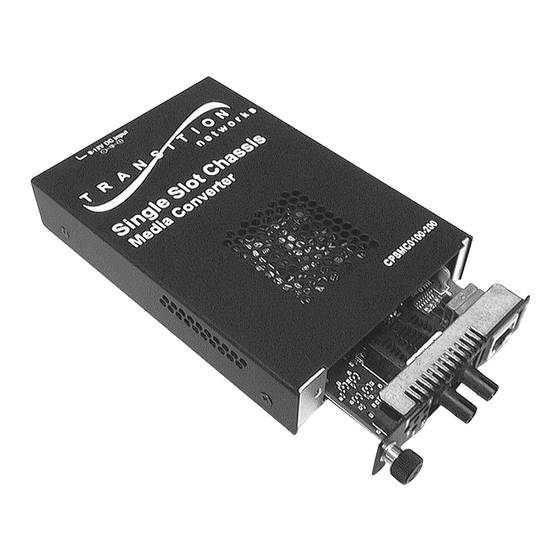

CPSMC0100-200
Single-Slot PointSystem™ Chassis
The Transition Networks CPSMC0100-
200 series single-slot PointSystem™
chassis is designed for installation of a
single, selectable Transition Networks
PointSystem™ media converter slide-
in-module.
Installation . . . . . . . . . . . . . . . . . .2
Technical Specifications . . . . . . . .4
Troubleshooting . . . . . . . . . . . . . .5
Compliance Information . . . . . . . .6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PointSystem CPSMC0100-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks PointSystem CPSMC0100-200

Summary of Contents for Transition Networks PointSystem CPSMC0100-200

  • Page 1 Single-Slot PointSystem™ chassis intended for installation of any PointSystem media converter slide-in-modules up to 6 W. Note: The following media converter families are not compatible with Transition Networks CPSMC0100-200 single-slot PointSystem™ chassis: C4TEF, CAPTF, CBFTF-120, CBFTF-140, CEMTF, CGFEG and the CMEFG. Optional Accessories (sold separately)

  • Page 2: Installation

    Failure to observe this caution could result in damage to, and subsequent failure of, the media converter slide-in-module. The maximum power delivery capacity for the CPSMC0100-200 is 6 Watts. To install a slide-in-module into the single-slot chassis: Refer to the user’s guide that comes with the slide-in-module to ensure that any switches or jumpers on the module’s circuit board are set...

  • Page 3: Technical Specifications

    Technical Specifications For use with Transition Networks Model CPSMC0100-200 or equivalent. Note: The CPSMC0100-200 single-slot chassis is Class B compliant ONLY if Class B compliant media converters are installed. Installation of a Class A compliant media converter reduces the chassis to Class A compliance.

  • Page 4: Troubleshooting

    Declaration of Conformity Name of Mfg: Transition Networks 10900 Red Circle Drive, Minneapolis MN 55343 U.S.A. Model: CPSMC0100-200 Series Single-Slot PointSystem Chassis Part Number: CPSMC0100-200 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CPSMC0100-200to which this declaration refers is in conformity with the following standards.

  • Page 5: Compliance Information

    Compliance Information CISPR/EN55022 Class A & B + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A & B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
