Optional Fan Module
The optional fan module (CPSFM-200) can be installed in the extra installation
space in the back of the CPSMC18xx-xxx chassis to provide additional cooling for
the entire chassis.
CAUTION:
precautions when installing the fan module into the chassis. Failure to observe this
caution could result in damage to, and subsequent failure of, the fan module.
NOTE: The fan module may be "hot swapped"

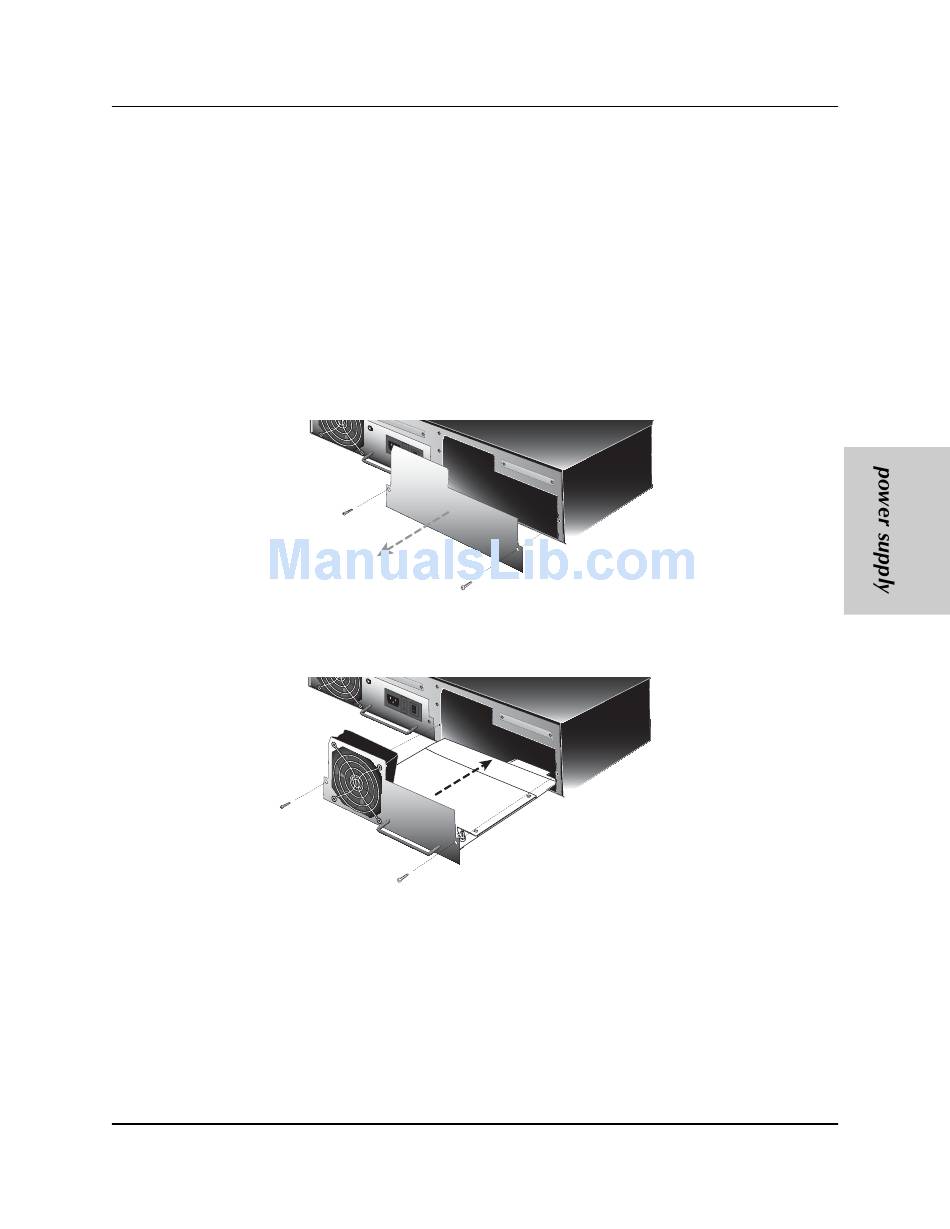

To install the fan module into the CPSMC18xx-xxx chassis:
1. Remove the protective plate from the installation slot by removing and retaining
2. Carefully slide the fan module into the installation slot, aligning the module
3. Carefully install the two (2) retained screws through the fan module into the
4. Verify that the fan module is powered by observing the fan operation.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Wear a grounding device and observe electrostatic discharge
the two (2) screws that secure the plate to the chassis.
with the installation guides. Ensure the module is firmly seated inside the
chassis.
chassis, rotating clockwise to secure.
CPSMC18xx-xxx PointSystem ™ chassis
