Installing The Power Supply Module - Transition Networks PointSystem CPSMC1810-200 User Manual

WARNING: Do NOT connect the Power Supply Module to the external power before installing it into
the Chassis. Failure to observe this caution could result in equipment damage and/or personal injury or
death.
3.4.2

Installing the Power Supply Module

The AC and DC modules are installed in the same manner.
NOTE: At least one power supply module must be set to 'Primary.' If both modules
are set to 'Secondary,' neither will supply power to the chassis.

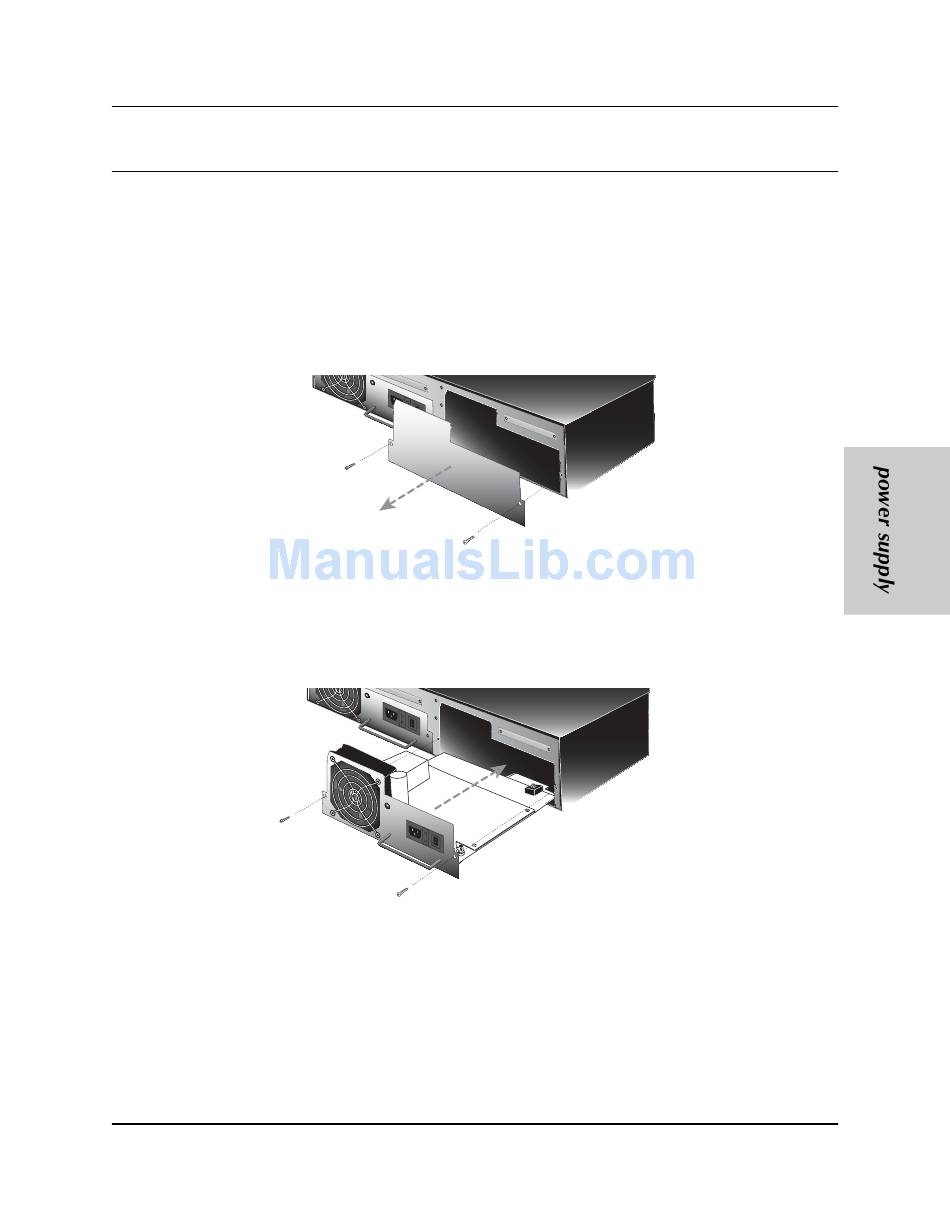

1. Remove the power supply module protective plate from the installation slot by
2. Set the Primary/Secondary switch and the Management/Manual switch, if
3. Carefully slide the power supply module into the installation slot, aligning the
4. Carefully install the two (2) screws (retained in Step 1) through the power supply
5. Connect the power supply module to the external power supply (AC: see page
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
removing and retaining the two (2) screws that secure the plate to the chassis.
necessary. (See section 3.4.1)
power supply module with the installation guides. Ensure that the module is
firmly seated inside the chassis.
module into the chassis, rotating clockwise to secure.
15 / DC: see page 17).
