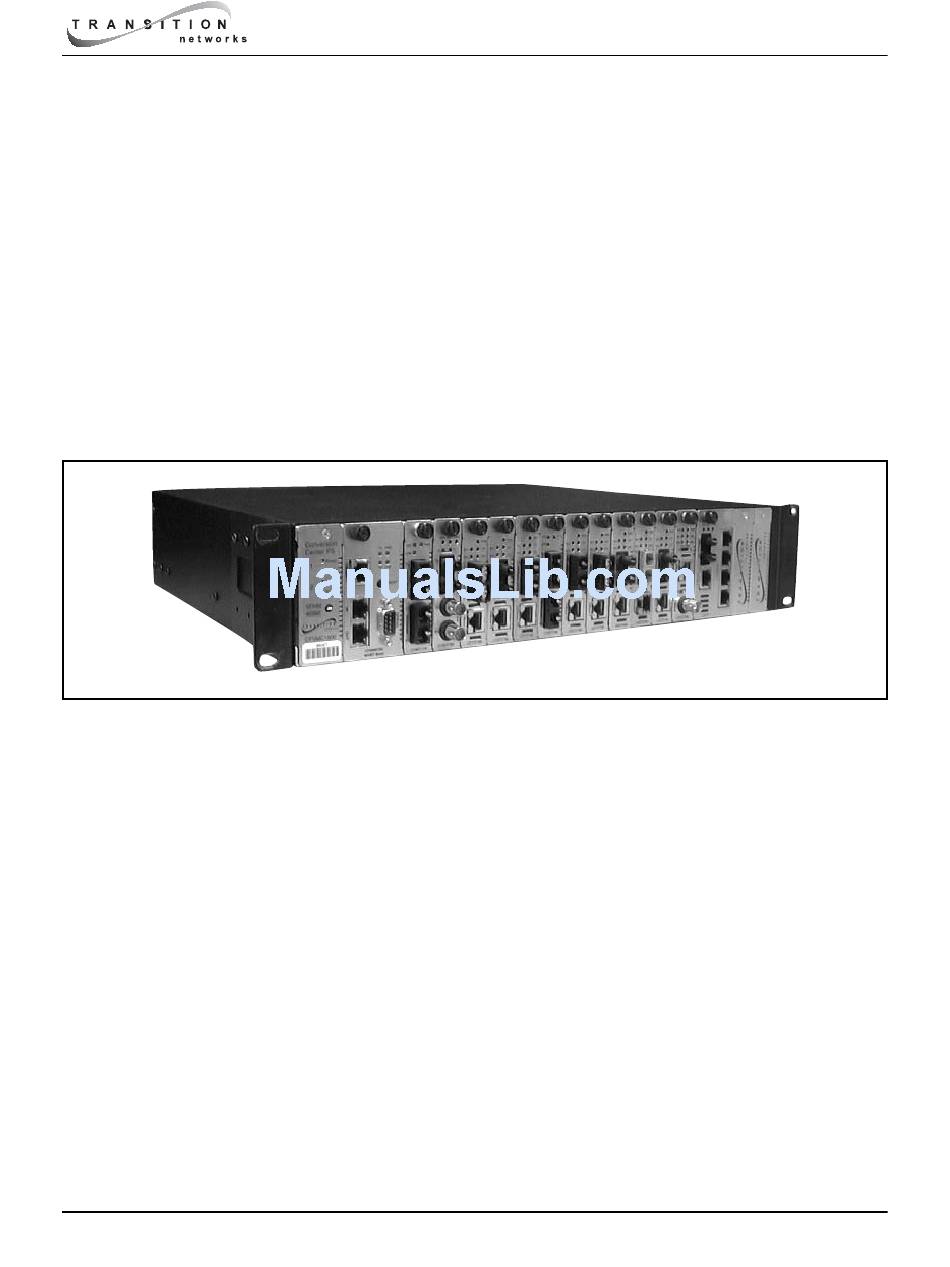

- Page 1 Transition Networks CPSMC18xx-xxx 18-Slot PointSystem™ Chassis User’s Guide (revision C) CPSMC1800-200 CPSMC1810-200 CPSMC1850-150 CPSMC1850-160...
-
Page 2: Compliance Information
Compliance Information UL Listed C-UL Listed (Canada) CISPR22/EN55022 Class A & B + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A & B digital device, pursuant to part 15 of the FCC rules. -
Page 3: Table Of Contents
Table of Contents Introduction ........5 Description . - Page 4 Network Management ......34 Hardware Connections ....... .34 Troubleshooting .
-
Page 5: Introduction
Introduction Description The Transition Networks CPSMC18xx-xxx 18-Slot PointSystem™ chassis is a 19- inch, rack-mountable chassis for selected Transition Networks media converter slide-in-modules. connect various copper and fiber-optic network media over protocols that include Ethernet, Fast Ethernet, DS3/E3, and OC-12 and many others. The CPSMC18xx-xxx provides installation space for up to 18 single-slot media converter slide-in-modules in the front of the unit. - Page 6 The CPSMC18xx-xxx is equipped with an AC or DC power supply installed in the back of the chassis. redundant power supply (AC or DC) or an optional fan module. The CPSMC18xx-xxx also comes equipped with a pair of grounding terminals (grounding lugs) for providing proper grounding of the chassis.
-
Page 7: Unpacking The Cpsmc18Xx-Xxx Equipment
Telco RJ-21 (male) to RJ-45 Hydra cable Telco RJ-21 to RJ-21 (male-to-male) cable Rack Mount Ears Selectable media converter slide-in-module(s) 24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600 CPSMC18xx-xxx PointSystem™ Chassis Part Number CPSMC1800-200 CPSMC1810-200 CPSMC1850-150 CPSMC1850-160 CPSFP-200 (varies by country) 33185 Part Number CPSMP-200 (optional) -
Page 8: Slide-In-Modules
Slide-in-Modules Media Converter Slide-in-Modules Transition Networks media converter slide-in-modules, installed in slots at the front of the chassis, allow the network administrator to connect various copper and fiber- optic network media over protocols that include Ethernet, Fast Ethernet, DS3/E3, and OC-12 as well as many others (see www.transition.com for a complete listing.) NOTE: Refer to the user’s guide that comes with each media converter slide-in- module for cable, connector, and LED indicator information specific to that media... -
Page 9: Installing The Media Converter Slide-In-Modules
2.1.3 Installing the Media Converter Slide-in-Modules CAUTION: precautions when installing the media converter slide-in-module(s) into the chassis. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter slide-in-module(s). NOTE: The media converter slide-in-modules can be installed in any installation slot, in any order. -
Page 10: Replacing The Media Converter Slide-In-Modules
2.1.4 Replacing the Media Converter Slide-in-Modules CAUTION: precautions when replacing media converter slide-in-module(s). Failure to observe this caution could result in damage to, and subsequent failure of, the media converter slide-in-module(s). NOTE: The media converter slide-in-modules can be hot-swapped. To replace a media converter slide-in-module in the CPSMC18xx-xxx chassis: 1. -
Page 11: Management Modules
Management Modules Optional network management is provided by SNMP software embedded in Transition Networks PointSystem the CPSMC18xx-xxx chassis. Transition Networks provides two such modules: • CPSMM-120 Single-Slot Master Management Module. • CPSMM-200 Dual-Slot Master Management Module. Along with an additional expansion module: •... -
Page 12: Installing The Management Modules
2.2.2 Installing the Management Modules CAUTION: precautions when installing the management module into the CPSMC18xx-xxx chassis. Failure to observe this caution could result in damage to, and subsequent failure of, the management module. NOTE: Transition Networks recommends installing the management module into the left-most installation slot to keep the management module cables separate from the media converter cables. -
Page 13: Replacing The Management Modules
2.2.3 Replacing the Management Modules CAUTION: precautions when replacing the media converter slide-in-module(s). Failure to observe this caution could result in damage to, and subsequent failure of, the management module(s). NOTE: The management modules can be replaced while the chassis remains powered. -
Page 14: Powering The Cpsmc18Xx-Xxx
Powering the CPSMC18xx-xxx AC Power Supply Module The CPSMC1800-200 and the CPSMC1850-150 PointSystem™ chassis are equipped with an AC power supply module (P/N CPSMP-200) installed in the back of the chassis. The power supply module supplies power to the chassis, installed media converter slide-in-modules, management modules, and the optional fan module. - Page 15 Powering the AC Power Supply Module To power the CPSMC1800-200 and the CPSMC1850-150 PointSystem™ chassis through the AC power supply module: 1. Set the On/Off switch to “0”. 2. Connect female end of the power cord to the AC power connector on the power supply module.
-
Page 16: Dc Power Supply Module
DC Power Supply Module The CPSMC1810-200 and the CPSMC1850-160 PointSystem™ chassis are equipped with a DC power supply module (P/N CPSMP-210) installed in the back of the chassis. The power supply module supplies power to the chassis, installed media converter slide-in-modules, management modules, and the optional fan module. - Page 17 Overcurrent protection must be a 48 VDC, 15 or 20A fuse or circuit breaker. To power the CPSMC1810-200 and the CPSMC1850-160 chassis through the DC power supply module: 1.
-
Page 18: Optional Dual Power Supply Modules
Optional Dual Power Supply Modules Alternatively, both an AC power supply module and a DC power supply module can be installed in the same chassis. NOTE: The drawing below shows the AC module in the left installation slot and the DC module in the right, However, either power supply module can be installed in either installation space. -
Page 19: Power Supply Module Maintenance
Power Supply Module Maintenance 3.4.1 Primary/Secondary-Management/Manual Switch Both the AC (CPSMP-200) and DC (CPSMP-210) power supply modules have a set of Primary/Secondary-Management/Manual switches installed on the circuit board. Management/Manual Switch The Management/Manual switch allows the PointSystem™ software to control and override the physical setting on the Primary/Secondary switch. -
Page 20: Installing The Power Supply Module
WARNING: Do NOT connect the Power Supply Module to the external power before installing it into the Chassis. Failure to observe this caution could result in equipment damage and/or personal injury or death. 3.4.2 Installing the Power Supply Module The AC and DC modules are installed in the same manner. NOTE: At least one power supply module must be set to ‘Primary.’... -
Page 21: Replacing The Power Supply Module
WARNING: Do NOT connect the power supply module to the external power before installing it into the chassis. Failure to observe this caution could result in equipment damage and/or personal injury or death. 3.4.3 Replacing the Power Supply Module The AC and DC modules are replaced in the same manner. Both the AC (CPSMP-200) and DC (CPSMP-210) power supply modules may be “hot swapped”... -
Page 22: 3.4.3 Replacing The Power Supply Fuses
WARNING: Do NOT connect the power supply module to the external power before installing it into the chassis. Failure to observe this caution could result in equipment damage and/or personal injury or death. 3.4.3 Replacing the Power Supply Fuses Replacing the AC Fuse CAUTION: precautions when replacing the fuse in the power supply module. - Page 23 WARNING: Do NOT connect the power supply module to the external power before installing it into the chassis. Failure to observe this caution could result in equipment damage and/or personal injury or death. Replacing the DC Fuse CAUTION: precautions when replacing the fuse in the power supply module. Failure to observe this caution could result in damage to, and subsequent failure of, the power supply module.
-
Page 24: Optional Fan Module
Optional Fan Module The optional fan module (CPSFM-200) can be installed in the extra installation space in the back of the CPSMC18xx-xxx chassis to provide additional cooling for the entire chassis. CAUTION: precautions when installing the fan module into the chassis. Failure to observe this caution could result in damage to, and subsequent failure of, the fan module. -
Page 25: Table Top Installation
CPSMC18xx-xxx Chassis Installing the CPSMC18xx-xxx Chassis The CPSMC18xx-xxx can be installed in a standard 19-inch rack or on a table, shelf, or other stable surface. CAUTION: Install the chassis so that the air flow around it is not restricted. 4.1.1 Table-Top Installation The CPSMC18xx-xxx chassis is shipped with nine (9) rubber feet for optional installation on a table or other flat, stable surface in a well-ventilated area. - Page 26 To install the CPSMC18xx-xxx chassis into a standard 19-inch rack: 1. Determine the preferred alignment of the chassis in the rack. NOTE: Installation bracket mounting screws are provided. Rack mount screws and clip nuts are NOT provided. 2. Locate six (6) installation bracket mounting screws (provided) for each chassis to be installed.
-
Page 27: Grounding Lugs
4.1.3 Grounding Lugs The CPSMC18xx-xxx comes equipped with grounding lugs, which are provided for a grounding conductor wire terminated with a two-hole, compression-type, grounding connector. The grounding wire -- which must be a copper conductor -- is not included with the chassis and must be provided by the customer/installer. The electrical conducting path from the chassis must: •... -
Page 28: Telco Option
Telco Option (CPSMC1850-150 and CPSMC1850-160 Models Only) The CPSMC1850-150 and CPSMC1850-160 PointSystem™ chassis are shipped with two (2) 50-pin Telco connectors installed at the back of the chassis.The two Telco connectors concentrate a total of 24 UTP connections, which are distributed to twelve (12) installation slots in the front of the CPSMC1850-150 and CPSMC1850-160 chassis. - Page 29 CDFTFxxxx-10x Media Converter In order to fully utilize the Telco option on the CPSMC1850-1xx chassis, the Transition Networks CDFTFxxxx-10x media converter slide-in-module is required and it must be installed in slots 7 through 18. The CDFTFxxxx-10x (see the drawing to the right) is a dual-port media converter that connects Telco signals to fiber optic cable.
- Page 30 Telco Signals The chart below shows the 50 signals that go through each Telco connector on the CPSMC18xx-xxx to slots 7-12 (Telco connector #2) OR to slots 13-18 (Telco connector #1). CHASSIS SLOT #7 or 13 CHASSIS SLOT #8 or 14 CHASSIS SLOT #9 or 15 CHASSIS SLOT...
-
Page 31: Cascade Option
Cascade Option The management module cascade option allows the network administrator to connect up to eight (8) CPSMC18xx-xxx chassis into one manageable stack, providing a single management source for up to 135 conversion devices. To create the cascade option, the CPSMM-200 Dual Slot Master Management Module is installed in the first chassis in the series. - Page 32 Cascading multiple CPSMC18xx-xxx chassis To cascade two or more CPSMC18xx-xxx chassis: 1. Locate one (1) Transition Networks management module cascade cable (with RJ-45 connectors installed at both ends) (P/N 6026) for each set of two (2) chassis to be cascaded. NOTE: Transition Networks management module cascade cables are one (1) meter long.
-
Page 33: Connecting The Slide-In-Modules To The Network
Connecting the Slide-in-Modules to the Network Once the CPSMC18xx-xxx chassis has been installed, the media converter slide-in- modules may be connected to the network. CAUTION: Connect input/output network cables ONLY to media converter slide- in-module connectors within the same network protocol (such as Ethernet-to- Ethernet, Fast Ethernet-to-Fast Ethernet, ATOM-to-ATOM). -
Page 34: Network Management
Network Management The CPSMM100 firmware and the FocalPoint™ application are described in the FocalPoint™ 2.0 Management Application and CPSMM100 Firmware user’s guide (P/N 33293). This manual is included on the application CD and is also available on-line at www.transition.com. Transition Networks CPSMM100 firmware is embedded in the optional management modules (see section 2.2). - Page 35 DB-9 Serial Port The DB-9 serial port allows the network administrator to configure and manage the CPSMC18xx-xxx chassis using the SNMP Command-Line Interface (CLI) at an attached terminal or terminal emulator. Use a null modem cable to attach a terminal to the DB-9 serial port on the management module as shown.
-
Page 36: Troubleshooting
Troubleshooting 1. Are any of the power LEDs on any of the slide-in-modules illuminated, AND are the fans operating? • The chassis is receiving power. Proceed to the next step. • Check all power supply cables for proper connection. • For AC power: Ensure the AC receptacle on the wall is supplying power. -
Page 37: Technical Specifications
Technical Specifications For use with Transition Networks Model CPSMC18xx-xxx or equivalent. Dimensions Weight MTBF (Mean Time Before Failure) CPSMC1800 + CPSMP-200 CPSMC1800 + CPSMP-200 + CPSMM-200 CPSMC1800 + CPSMP-210 CPSMC1800 + CPSMP-210 + CPSMM-200 CPSMP-200 Power Input: Power Output: CPSMP-210 Power Input: Power Output: Environment... -
Page 38: Cable Specifications
Cable Specifications Null Modem Cable The Null Modem Cable is used for connecting a terminal or terminal emulator to the management module’s DB-9 connector to access the command-line interface. The table below shows the pin assignments for the DB9 cable. Function Carrier Detect Receive Data... -
Page 39: Coax Cable
COAX Cable Coaxial cable media is used for circuits such as DS3, E1 and 10Base-2 Ethernet. The impedance of the coaxial cable is determined by the interface type, for example: • 75 ohm for DS3. • 50 ohm for 10Base-2 Ethernet. Special attention should be given to the grounding requirements of coaxial cable circuits. -
Page 40: Contact Us
Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: PointSystem Part Number: CPSMC1800-200, CPSMC1810-200, CPSMC1850-150, CPSMC1850-160 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the PointSystem conformity with the following standards. EN 55022:1998+A1:2000 Class A & B; EN 55024:1998; FCC Part 15 Subpart B; UL 1950;... -
Page 41: Warranty
Warranty Limited Lifetime Warranty Effective for products shipped May 1, 1999 and after. Every Transition Networks' labeled product purchased after May 1, 1999 will be free from defects in material and workmanship for its lifetime. This warranty covers the original user only and is not transferable. - Page 42 CPSMC18xx-xxx PointSystem ™ Chassis Before making any non-warranty repair, Transition Networks requires a $200.00 charge plus actual shipping costs to and from the customer. If the repair is greater than $200.00, an estimate is issued to the customer for authorization of repair. If no authorization is obtained, or the product is deemed not repairable, Transition Networks will retain the $200.00 service charge and return the product to the customer not repaired.
