WARNING: Do NOT connect the power supply module to the external power before installing it
into the chassis. Failure to observe this caution could result in equipment damage and/or personal
injury or death.
3.4.3

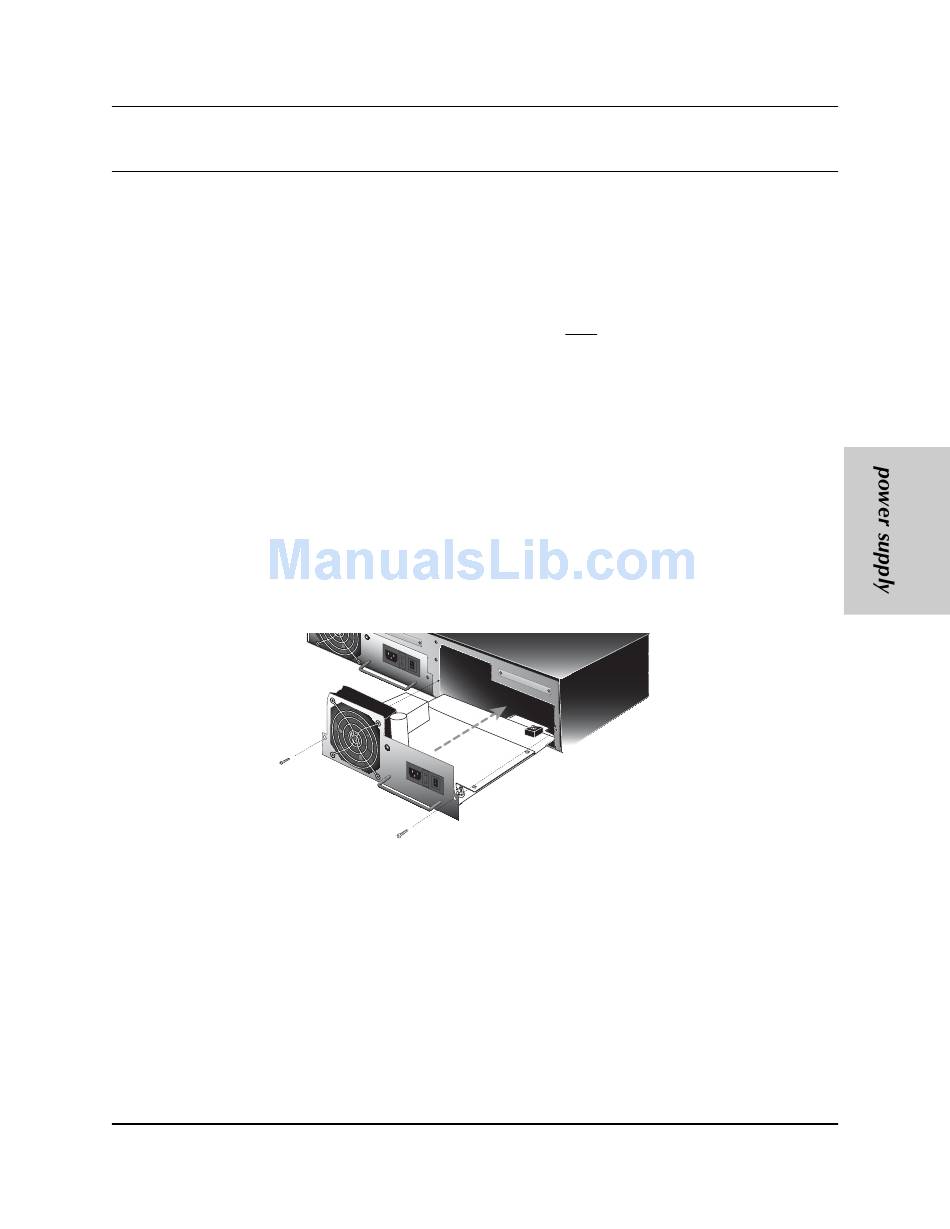

Replacing the Power Supply Module

The AC and DC modules are replaced in the same manner.
Both the AC (CPSMP-200) and DC (CPSMP-210) power supply modules may be
"hot swapped" provided the module to be swapped has been disconnected from the
external power source and the On/Off switch has been set to "0".
NOTE: At least one power supply module must be set to 'Primary.' If both modules
are set to 'Secondary,' neither will supply power to the chassis.
1. Set the power supply module power switch to "0".
2. Disconnect the power supply module from the external power source.
3. Remove the two (2) screws that secure power supply module to the chassis.
4. Slide the power supply module from the chassis.
5. Set the Primary/Secondary switch and the Management/Manual switch on the
6. Carefully slide the replacement power supply module into the installation slot,
7. Carefully install the two (2) retained screws through the power supply module
8. Connect the power supply module to the external power source. (AC: see page
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Retain the screws for installing the replacement power supply module.
replacement power supply module, if necessary. (See section 3.4.1)
aligning the module with the installation guides. Ensure that the the module is
firmly seated inside the chassis.
into the chassis, rotating clockwise to secure.
15 / DC: see page 17.)
CPSMC18xx-xxx PointSystem ™ Chassis
