DB-9 Serial Port
The DB-9 serial port allows the network administrator to configure and manage the
CPSMC18xx-xxx chassis using the SNMP Command-Line Interface (CLI) at an
attached terminal or terminal emulator.

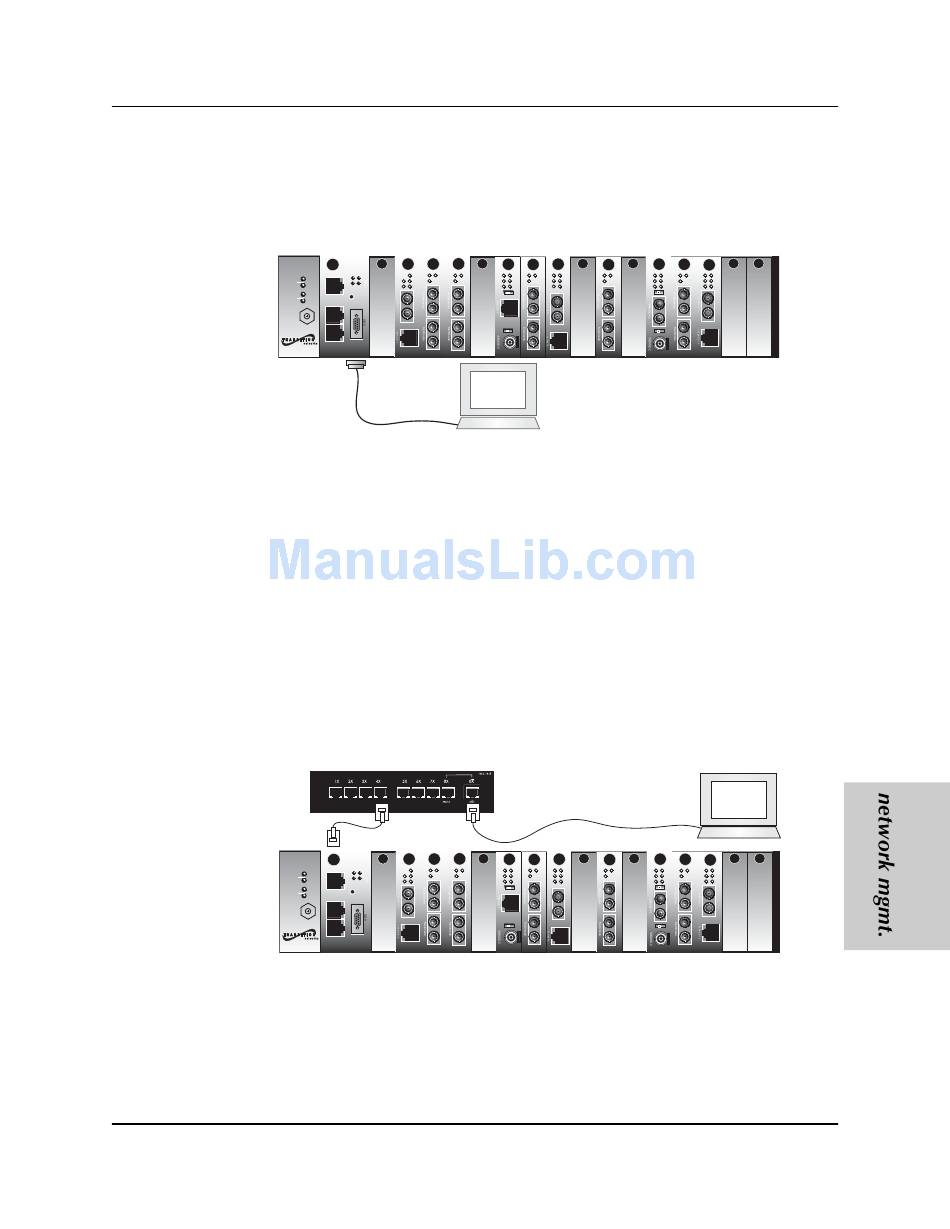

Use a null modem cable to attach a terminal to the DB-9 serial port on the
management module as shown.
Conversion
Center PS
ESD
Gnd.
Term.
CPSMC1800 CPSMC1800
RJ-45 Ethernet Port
The RJ-45 Ethernet port allows the network administrator to manage the
CPSMC18xx-xxx chassis via a remote Network Management Station (NMS) in one
of two ways:
1. Using the Transition Networks FocalPoint™ graphical user interface.
2. Using a remote Telnet connection.
Use an RJ-45 network cable to attach a terminal (via a network hub or switch) to the
RJ-45 Ethernet port on the management module as shown.
Conversion
Center PS
ESD
Gnd.
Term.
CPSMC1800 CPSMC1800
NOTE: To manage the PointSystem™ chassis via a remote NMS, both the RJ-45
Ethernet port and the NMS must be connected to a network with Internet access.
