4.2

Telco Option

(CPSMC1850-150 and CPSMC1850-160 Models Only)

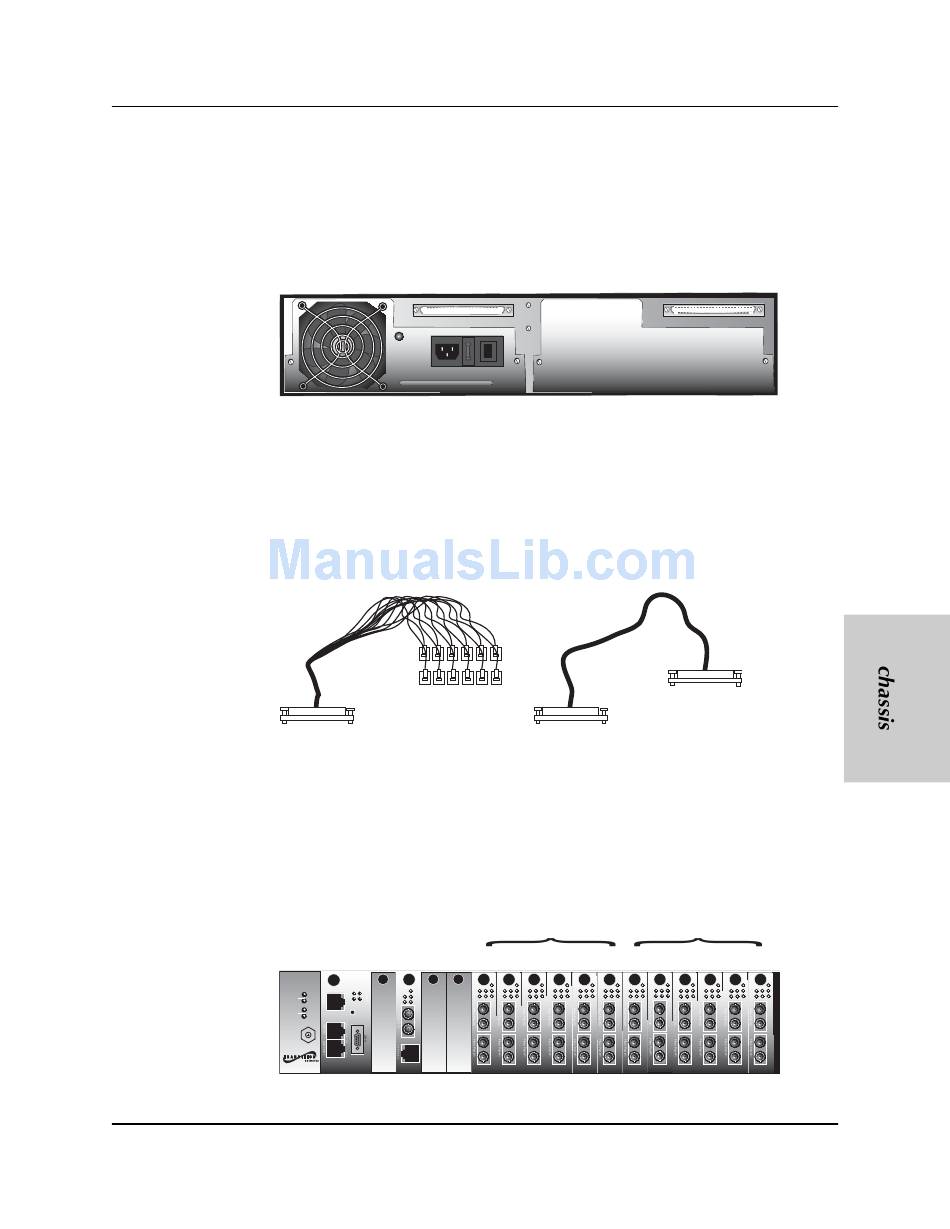

The CPSMC1850-150 and CPSMC1850-160 PointSystem™ chassis are shipped
with two (2) 50-pin Telco connectors installed at the back of the chassis.The two
Telco connectors concentrate a total of 24 UTP connections, which are distributed
to twelve (12) installation slots in the front of the CPSMC1850-150 and
CPSMC1850-160 chassis.
Telco Cables
The cables for connecting between the Telco network and the CPSMC1850-1xx
chassis are available from Transition Networks:
•
•
21HC45-6:
one (1) RJ-21 connector
and 12 RJ-45 connectors
Chassis Slots 7 through 18
The signals from the Telco connectors are distributed as follows:
•
•
Conversion
Center PS
ESD
Gnd.
Term.
CPSMC1800 CPSMC1800
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Telco connector #1
P/N 21HC45-6 Telco cable with twelve (12) RJ-45 connectors at one end and
an RJ-21 connector at the other end.
P/N 21HC21-6 Telco cable with RJ-21 connectors at both ends.
Signals from Telco connector #2 go to slots 7-12.
Signals from Telco connector #1 go to slots 13-18.
1 2 3 4 5 6
TX PWR
PWR
LKF
Power
1
RXF
In Use
RX LNK
RXC LKC
Power TX
2
RESET
In Use
RX
MCCM10
MGMT MASTER
CETTF100
CPSMC18xx-xxx PointSystem ™ Chassis
Telco connector #2
I
0
21HC21-6:
two (2) RJ-21 connector
Telco connector #2 Telco connector #1
7 8 9 10 11 12 13 14 15 16 17
CDFTF100
CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100 CDFTF100
18
CDFTF100 CDFTF100 CDFTF100 CDFTF100
28
