Powering the CPSMC18xx-xxx

3.1

AC Power Supply Module

The CPSMC1800-200 and the CPSMC1850-150 PointSystem™ chassis are
equipped with an AC power supply module (P/N CPSMP-200) installed in the back
of the chassis. The power supply module supplies power to the chassis, installed
media converter slide-in-modules, management modules, and the optional fan
module.

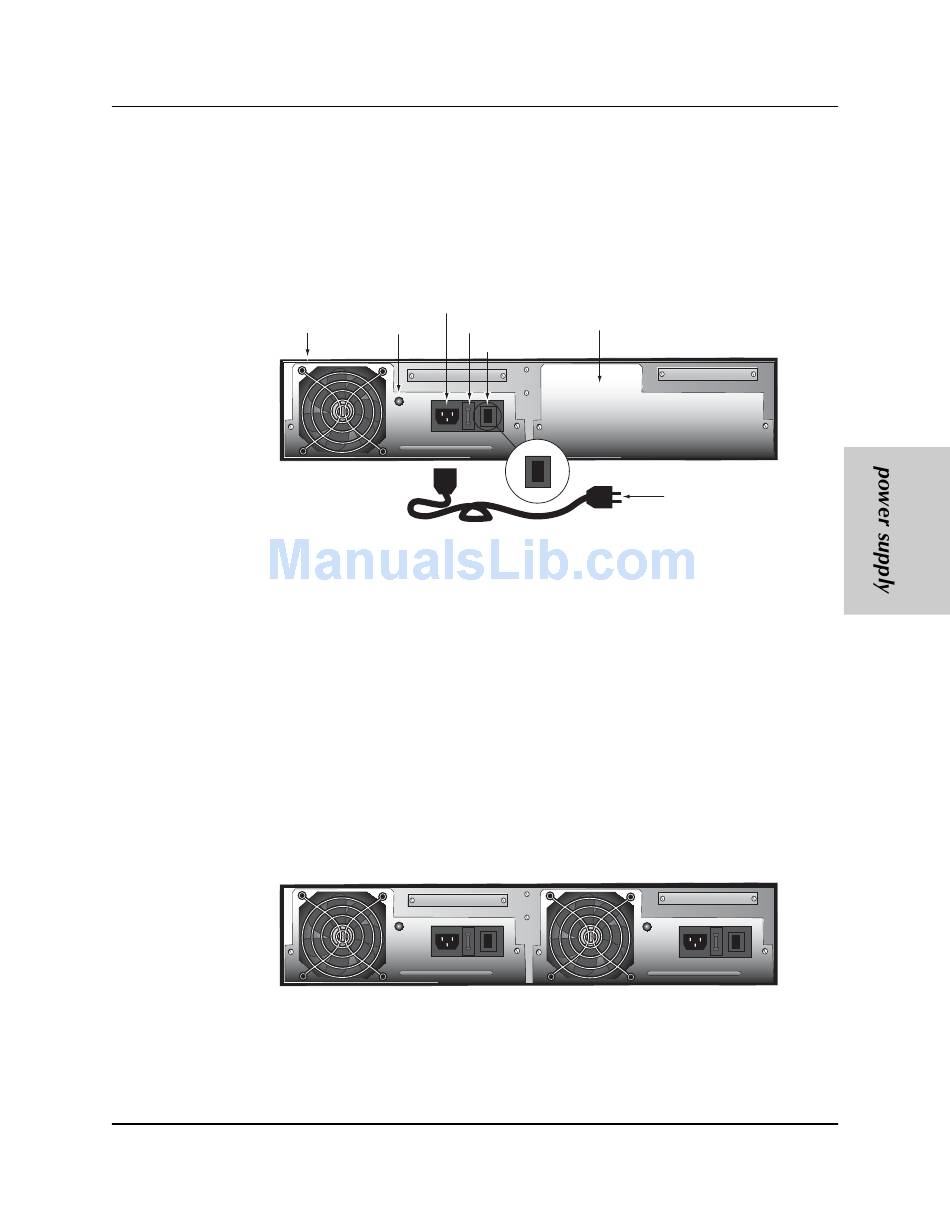

The components of the AC power supply module include:
•
•
•
•
•
Optional Redundant AC Power Supply Module
An extra installation space is available in the back of the chassis for installing an
optional redundant AC power supply module (P/N CPSMP-200).
See section 3.4 Power Supply Module Maintenance for instructions on installation.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
AC Power Connector
Fan Power LED Fuse Holder
An AC power cord that distributes power from an external outlet to an AC
power connector on the power supply module.
An On/Off switch that, when set to "I", allows the module to supply power to
the chassis and any installed modules.
A power LED indicator.
A fan to prevent the power supply module from overheating.
An fuse installed in a fuse holder.
CPSMC18xx-xxx PointSystem ™ Chassis
Extra Installation
Space
On/Off Switch
I
0
I
0
I
0
AC Power Cord
I
0
