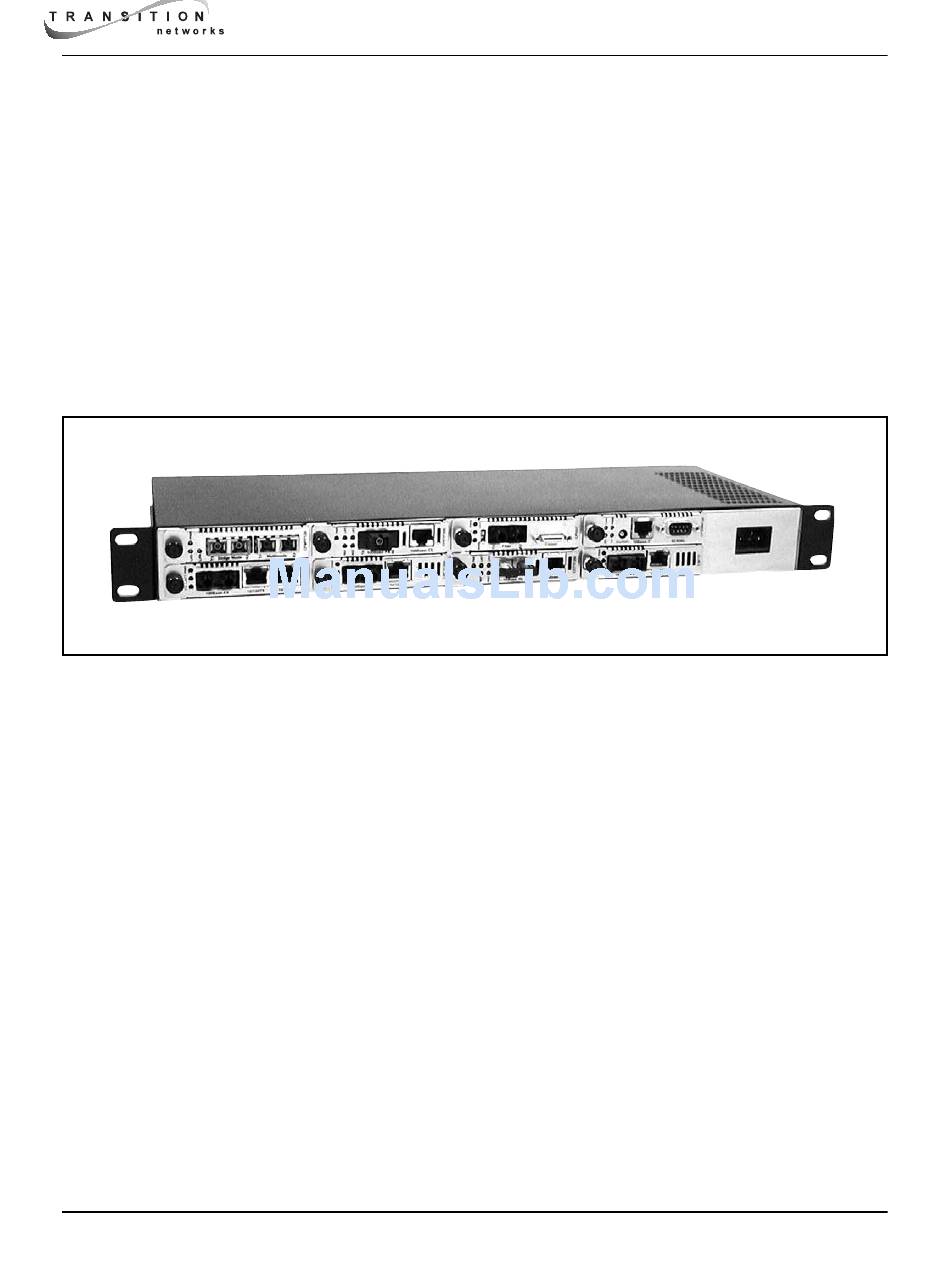

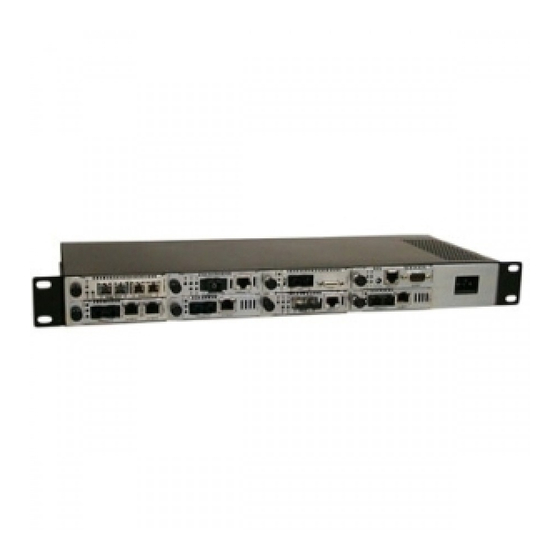

- Page 1 Transition Networks CPSMC0800-100 8-Slot PointSystem™ Chassis User’s Guide (revision A)
-
Page 2: Compliance Information
© 2003 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means – graphic, electron- ic, or mechanical – without written permission from Transition Networks. Printed in the U.S.A. -
Page 3: Table Of Contents
Auxilliary Power Supply ....... .13 CPSMC0800-100 Chassis ......14 Installing the CPSMC0800-100 Chassis . -
Page 4: Introduction
OUTPORT 10BASE-T The CPSMC0800-100 also comes equipped with an AC or DC power supply. An optional AC or DC power supply with Instant Fail Over operation is also available. The primary power supply is accessed through the Power Inlet on the front panel, while auxilliary power is accessed through the Auxilliary Power Inlet, located on the back panel. -
Page 5: Unpacking The Cpsmc0800-100 Equipment
Unpacking the CPSMC0800-100 Equipment Use the following list to verify the shipment: Item 8-Slot chassis with AC power supply 8-Slot chassis with DC power supply Power Cord External AC Power Supply External DC Power Supply 1-slot Master Management Module 2-slot Master Management Module FocalPoint™... -
Page 6: Slide-In-Modules
Failure to observe this caution could result in diminishing system reliability. In other words, the combined wattage of the CPSMC0800-100 8-Slot chassis plus all Slide-In-Modules must be less than the available power. Contact Transition Networks Tech Support to ensure the power requirements for your specific application do not exceed the available power. -
Page 7: Installing Media Converter Slide-In-Modules
Media Converter Slide-in-Module(s). NOTE: Media Converter Slide-in-Modules can be installed in any installation slot, in any order. To install the Media Converter Slide-in-Module into the CPSMC0800-100 8-Slot chassis: 1. Remove the Media Converter Slide-in-Module protective plate from the instal- lation slot by removing the one (1) screw that secures the plate to the front of the chassis. -
Page 8: Replacing Media Converter Slide-In-Modules
NOTE: The Media Converter Slide-in-Modules are hot-swappable. To replace a Media Converter Slide-in-Module: 1. Remove the Media Converter Slide-in-Module to be replaced by loosening the one (1) screw that secures the Slide-in-Module to the CPSMC0800-100 chassis front. Slide the Media Converter Slide-In-Module from the CPSMC0800-100 chassis. -
Page 9: Managment Modules
Three Types of Managment Modules CPSMM-120 Single-Slot Master Managment Module The optional CPSMM-120 Single-Slot Master Managment Module can be installed to enable network managment of a single CPSMC0800-100 8-Slot chassis . Refer to the CPSMM-120 User Guide for more information on the CPSMM-120 Single-Slot Master Management Module. -
Page 10: Installing The Management Modules
4.3 Cascade Option): • Install one (1) Master Management Module (CPSMM-120 or CPSMM-200) into the primary managed CPSMC0800-100 8-Slot chassis. • Install one (1) Master Management Module (CPSMM-200) or one (1) Expansion Management Module (CPSMM-210) in any secondary managed CPSMC0800- 100 8-Slot chassis. -
Page 11: Replacing The Management Modules
To replace a Managment Module: 1. Remove the Managment Module to be replaced by loosening the one (1) screw that secures the Managment Module to the CPSMC0800-100 chassis front. Slide the Management Module from the CPSMC0800-100 chassis. 2. Align the replacement Mangement Module with the installation slot so that the panel fastener screw is at the top. -
Page 12: Powering The Cpsmc0800-100
Powering the CPSMC0800-100 The CPSMC0800-100 chassis can be powered through an AC or DC Power Supply. An optional auxilliary power supply, with Instant Fail Over protections, is also avail- able. NOTE: The CPSMC0800-100 8-Slot chassis does not have an ON/OFF switch. -
Page 13: Auxilliary Power Supply
Auxilliary Power Supply The CPSMC0800-100 can also be supplied with auxilliary power through the Auxilliary Power Inlet, located on the back panel. The External Power Converter and additional power cord are sold separately. To power the CPSMM0800-100 8-Slot chassis through the Auxilliary Power Supply: 1. -
Page 14: Cpsmc0800-100 Chassis
CPSMC0800-100 Chassis Installing the CPSMC0800-100 Chassis The CPSMC0800-100 can be installed in a standard 19-inch rack or on a table, shelf, or other stable surface. 4.1.1 Standard 19-inch Rack Installation NOTE: The maximum recommended ambient temperature (Tmra) for the 8-Slot chassis is 40°C. -
Page 15: Table-Top Installation
4.1.2 Table-Top Installation The CPSMC0800-100 8-slot chassis is shipped with four (4) rubber feet for optional installation on a table or other flat, stable surface in a well-ventilated area. If table- top installation is desired, remove the rubber feet from the card and place one at each of the four corners on the bottom of the chassis. -
Page 16: Cascade Option
Cascade Option The Management Module cascade option allows the network administrator to con- nect up to eight (8) CPSMC0800-100 8-Slot chassis into one manageable stack, pro- viding a single management source for up to 55 installed Media Converter devices. To create the cascade option, the CPSMM-200 Dual Slot Master Management Module is installed in the first chassis in the series. -
Page 17: Connecting The Slide-In-Modules To The Network
6. Repeat steps 4 and 5 until all chassis have been connected. Connecting the Slide-in-Modules to the Network Once the CPSMC0800-100 chassis has been installed, the Media Converter Slide- in-Modules may be connected to the network. CAUTION: Connect input/output network cables ONLY to Media Converter Slide- In-Module connectors within the same network protocol (such as Ethernet-to- Ethernet, Fast Ethernet-to-Fast Ethernet, ATM-to-ATM). -
Page 18: Operation
Operation Daily operation of the CPSMC0800-100 8-Slot chassis requires no network admin- istrator activity except for the occasional monitoring of the status LED indicators on the installed Media Converter Slide-In-Modules. Each Media Converter Slide-in-Module and each Management Slide-in-Module has one or more LED indicators to help monitor the CPSMC0800-100 PointSystem™... -
Page 19: Snmp Agent In The Management Module
Interface (CLI) and an embedded Telnet server. These tools allow the network adminsitrator to configure and manage the CPSMC0800-100 8-Slot from an attached terminal or from a remote, networked computer. In addition, Transition Networks FocalPoint™ software can be installed in the net- worked computer to provide a graphical user interface to monitor the Conversion Center. -
Page 20: Snmp Software
CPSMC1800-100 8-Slot chassis via a remote Network Management Station (NMS) in one of two ways: 1. Using the Transition Networks FocalPoint™ graphical user interface. 2. Using a remote Telnet connection. Use an RJ-45 network cable to attach a terminal (via a network hub or switch) to the RJ-45 Ethernet™port on the Management Module as shown. -
Page 21: Fault Isolation And Correction
Module, consult the “Fault Isolation and Correction” section of the User Guide for that particular Module. 7. If none of the solutions listed in this section resolves the problem, contact Technical Support: 1-800-260-1312, International: 00-1-952-941-7600. Tech Support: 7am-6pm CST (GMT -6:00) 1-800-260-1312 International: 00-1-952-941-7600 CPSMC0800-100 PointSystem ™ Chassis... -
Page 22: Technical Specifications
Technical Specifications For use with Transition Networks Model CPSMC0800-100 or equivalent. Product is certified by the manufacturer to comply with DHHS Rule 21/CFR, Subchapter J applicable at the date of manufacture. Dimensions Shipping Weight Power Input Power Consumption *Refer to the power consumption data for each individual Media Converter Slide-in-Module (provided in the User’s Guide shipped with the Media Converter) to determine optimum site configuration. -
Page 23: Cable Specifications
(e.g., blue/white & white/blue, orange/white & white/orange, etc.) • Do not use flat or silver satin wire. Tech Support: M-F 7am-6pm CST (GMT -6:00) 1-800-260-1312 International: 00-1-952-941-7600 CPSMC0800-100 PointSystem ™ Chassis Mnemonic 24 to 22 AWG 22.0 dB /100m @ 100 MHz... -
Page 24: Contact Us
1-800-260-1312 International: 00-1-952-941-7600 Transition Now Chat live wia the Web with a Transition Networks Technical Support Specialist. Log onto www.transition.com and click the Transition Now link. Web-Based Seminars Transition Networks provides 12-16 seminars per month via live web-based train- ing. -
Page 25: Warranty
The customer must pay for the non-compliant product(s) return transportation costs to Transition Networks for evaluation of said product(s) for repair or replacement. Transition Networks will pay for the shipping of the repaired or replaced in-warran- CPSMC0800-100 PointSystem ™ Chassis... - Page 26 Networks for a fee will carry a 180-day limited warranty. All warranty claims are subject to the restrictions and conventions set forth by this document. Transition Networks reserves the right to charge for all testing and shipping incurred, if after testing, a return is classified as "No Problem Found."...
