Part Number
Description
CPSMC0100-200
Single-Slot PointSystem™ chassis intended for installation of
any PointSystem media converter slide-in-modules up to 6 W.
Media converters with part numbers that begin with CCSEF,
CGETF, CGFEB, CPSVT, or CSDTF cannot be used in the
CPSMC0100-200 chassis.
Single-Slot PointSystem™ chassis intended for installation of
CPSMC0100-205
any PointSystem media converter slide-in-modules up to 12 W.
This model is required for media converters with part numbers
that begin with CCSEF, CGETF, CGFEB, CPSVT, or CSDTF.
NOTE: Due to the unique power requirements in the United Kingdom (-UK),
Australia/New Zealand (-OZ), and South Africa (-SA), the power supply shipped
with the -200 model is the same as the -205 model. Consequently, ANY
PointSystem™ slide-in-module can be used with either chassis in the -UK, -OZ,
and -SA regions.
Optional Accessories (sold separately)
Part Number
Description
SPS-1872-SA
Optional External Power Supply; 18-72VDC Stand-Alone
Output: 12.6VDC, 1.0 A
E-MCR-04(T)
12-Slot media converter rack (includes universal internal
power supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)
WMBP
Optional Wall Mount Bracket; 5.0 in. (127 mm)
WMBV
Optional Vertical Mount Bracket; 5.0 in. (127 mm)
WMBD
Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)

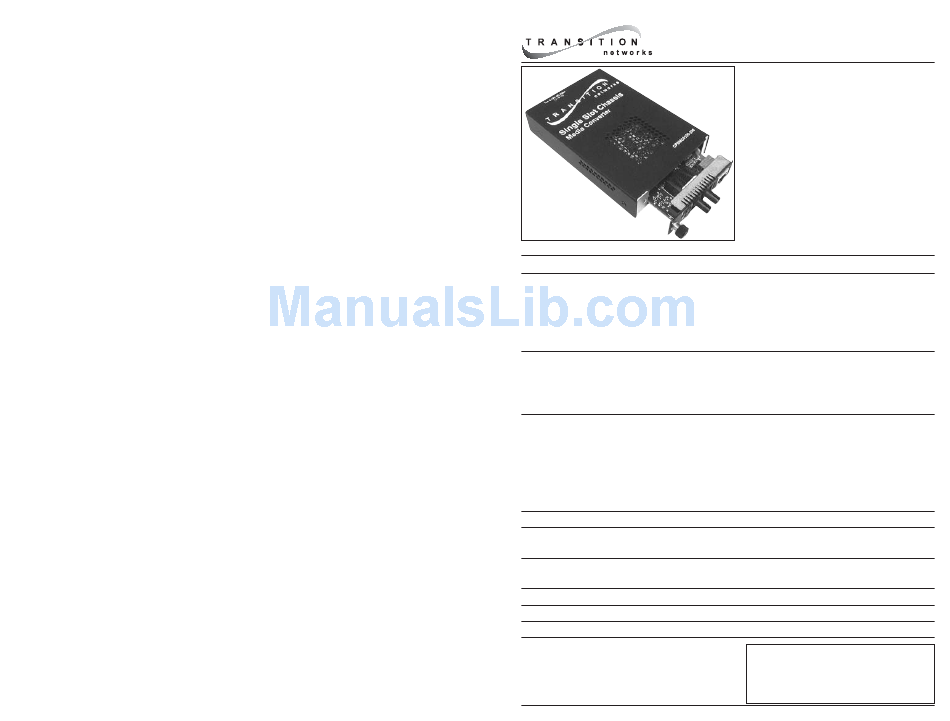

User's Guide
CPSMC0100-20x
Single-Slot PointSystem™ Chassis
The Transition Networks CPSMC0100-
20x series single-slot PointSystem™
chassis is designed for installation of a
single, selectable Transition Networks
PointSystem™ media converter slide-
in-module.
Installation . . . . . . . . . . . . . . . . . .2
Technical Specifications . . . . . . . .4
Troubleshooting . . . . . . . . . . . . . .5
Compliance Information . . . . . . . .6
Advertisement
Table of Contents
Related Manuals for Transition Networks PointSystem CPSMC0100-200
Summary of Contents for Transition Networks PointSystem CPSMC0100-200
- Page 1 PointSystem media converter slide-in-modules up to 6 W. Media converters with part numbers that begin with CCSEF, CGETF, CGFEB, CPSVT, or CSDTF cannot be used in the CPSMC0100-200 chassis. Single-Slot PointSystem™ chassis intended for installation of CPSMC0100-205 any PointSystem media converter slide-in-modules up to 12 W.
-
Page 2: Installation
Failure to observe this caution could result in damage to, and subsequent failure of, the media converter slide-in-module. The maximum power delivery capacity for the CPSMC0100-200 is 6 Watts. The maximum power delivery capacity for the CPSMC0100-205 is 12 Watts. -
Page 3: Technical Specifications
CPSMC0100-200 / CPSMC0100-205 Installation -- Continued Grounding the Media Converter The single-slot chassis comes equipped with grounding lugs located on the back panel. They require a grounding conductor wire terminated with a two- hole, compression-type, grounding connector. The grounding wire -- which must be a copper conductor -- is not included with the chassis and must be provided by the customer/installer. -
Page 4: Troubleshooting
CPSMC0100-200 / CPSMC0100-205 Troubleshooting Is a media converter installed in the single-slot chassis? • Install a slide-in-module media converter into the single-slot chassis. See page 2 for installation instructions. • Proceed to step 2. • Proceed to step 2. Is the Power LED on the media converter illuminated? •... -
Page 5: Compliance Information
Compliance Information CISPR/EN55022 Class A & B + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A & B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
