4.3

Cascade Option

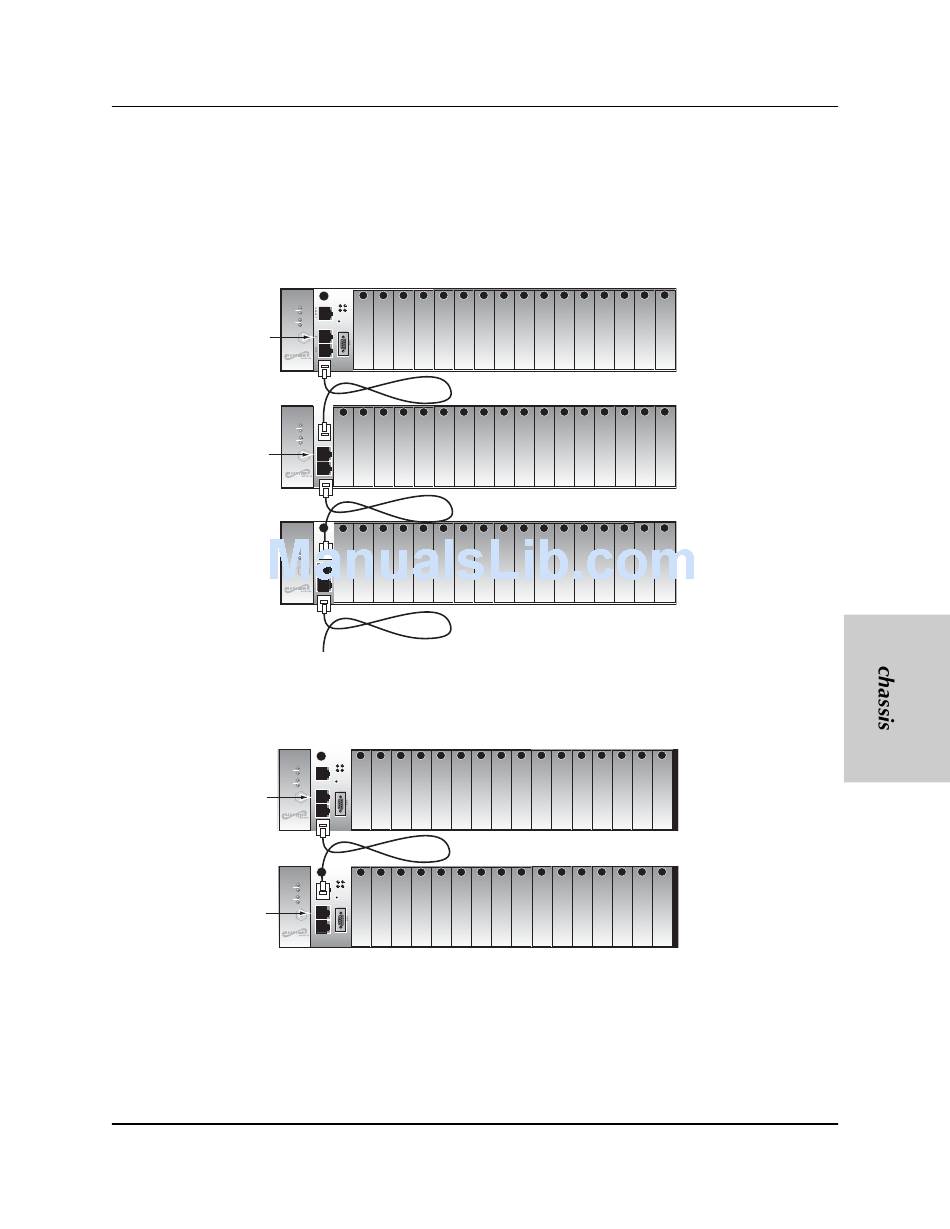

The management module cascade option allows the network administrator to
connect up to eight (8) CPSMC18xx-xxx chassis into one manageable stack,
providing a single management source for up to 135 conversion devices.
To create the cascade option, the CPSMM-200 Dual Slot Master Management
Module is installed in the first chassis in the series. The CPSMM-210 Single-Slot
Expansion management module is installed in each subsequent chassis.
Media
Conversion
Center
The CPSMM-200
1
2
Management Module is
ESD ESD
Gnd. Gnd.
installed in the first
Term. Term.
chassis in the series
CPSMC1800 CPSMC1800
Media
Conversion
Center
The CPSMM-210
Management Module is
ESD ESD
Gnd. Gnd.
installed in each
Term. Term.
subsequent chassis
CPSMC1800 CPSMC1800
Media
Conversion
Center
1
2
ESD ESD
Gnd. Gnd.
Term. Term.
CPSMC1800 CPSMC1800
An alternative setup involves installing two CPSMM-200 Dual-Slot Master
Management Modules into two adjacent chassis for redundant management.
Media
Conversion
Center
The CPSMM-200
1
2
Management Module is
ESD ESD
Gnd. Gnd.
installed in the first Term. Term.
chassis in the series
CPSMC1800 CPSMC1800
Media
Conversion
Center
Another CPSMM-200
1
2
Managment Module is
ESD ESD
Gnd. Gnd.
installed in the next
Term. Term.
chassis as a backup
CPSMC1800 CPSMC1800
In this set-up, the two CPSMM-200 management modules auto-negotiate so that
one module is the primary while the other is in stand-by mode. If the primary
module fails, the stand-by module automatically takes over and manages the
network.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
TX PWR
Power
In Use
RX LNK
Power
RESET
In Use
Power
1
In Use RESET
Power
2
Pwr
In Use
Power
In Use
RESET
Power
In Use Pwr
TX PWR
Power
In Use RX LNK
Power
RESET
In Use
TX PWR
Power
In Use RX LNK
Power
RESET
In Use
CPSMC18xx-xxx PointSystem ™ Chassis
