Introduction

1.1

Description

The Transition Networks CPSMC18xx-xxx 18-Slot PointSystem™ chassis is a 19-
inch, rack-mountable chassis for selected Transition Networks media converter
slide-in-modules.
connect various copper and fiber-optic network media over protocols that include
Ethernet, Fast Ethernet, DS3/E3, and OC-12 and many others. The CPSMC18xx-xxx
provides installation space for up to 18 single-slot media converter slide-in-modules
in the front of the unit.
Power and In Use LEDs (located on the front panel of the CPSMC18xx-xxx) indicate
the status of the installed power supply module(s) and optional fan module.
Wearing a wrist guard that is attached to the chassis via the ESD (electrostatic
discharge) banana jack will help suppress electrostatic discharge that may result in
damage to the chassis, slide-in-modules, and/or power supply modules.
With an installed PointSystem™ management module (P/N CPSMM-120 or -200),
the CPSMC18xx-xxx can be managed and monitored via:
•
•
•
•
The management modules also make it possible to control up to eight (8) cascaded
CPSMC18xx-xxx chassis fully populated with media converter slide-in-modules.
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
The CPSMC18xx-xxx allows the network administrator to
Power Supply LEDs Installed Slide-In-Module
Management Module
Conversion
Center PS
PWR
TX PWR
PWR LKS LKS
LKF
Power
1
RXF LKM LKM
In Use
RX LNK RXC LKC
TX TX
TX
Power
2
RESET
In Use
ESD
RX RX
Gnd. RX
TX TX
Term.
RX
RX
MCCM10
MGMT MASTER CETTF100
CPSMC1800 CPSMC1800 CFMFF100 CFMFF100
ESD Jack
CPSMC1800
An SNMP application such as Transition Networks FocalPoint™
management software installed at a remote Network Management Station
(NMS).
A remote Web browser.
A command-line interface (CLI) at an attached terminal.
A command-line-interface (CLI) at a remote Telnet connection.

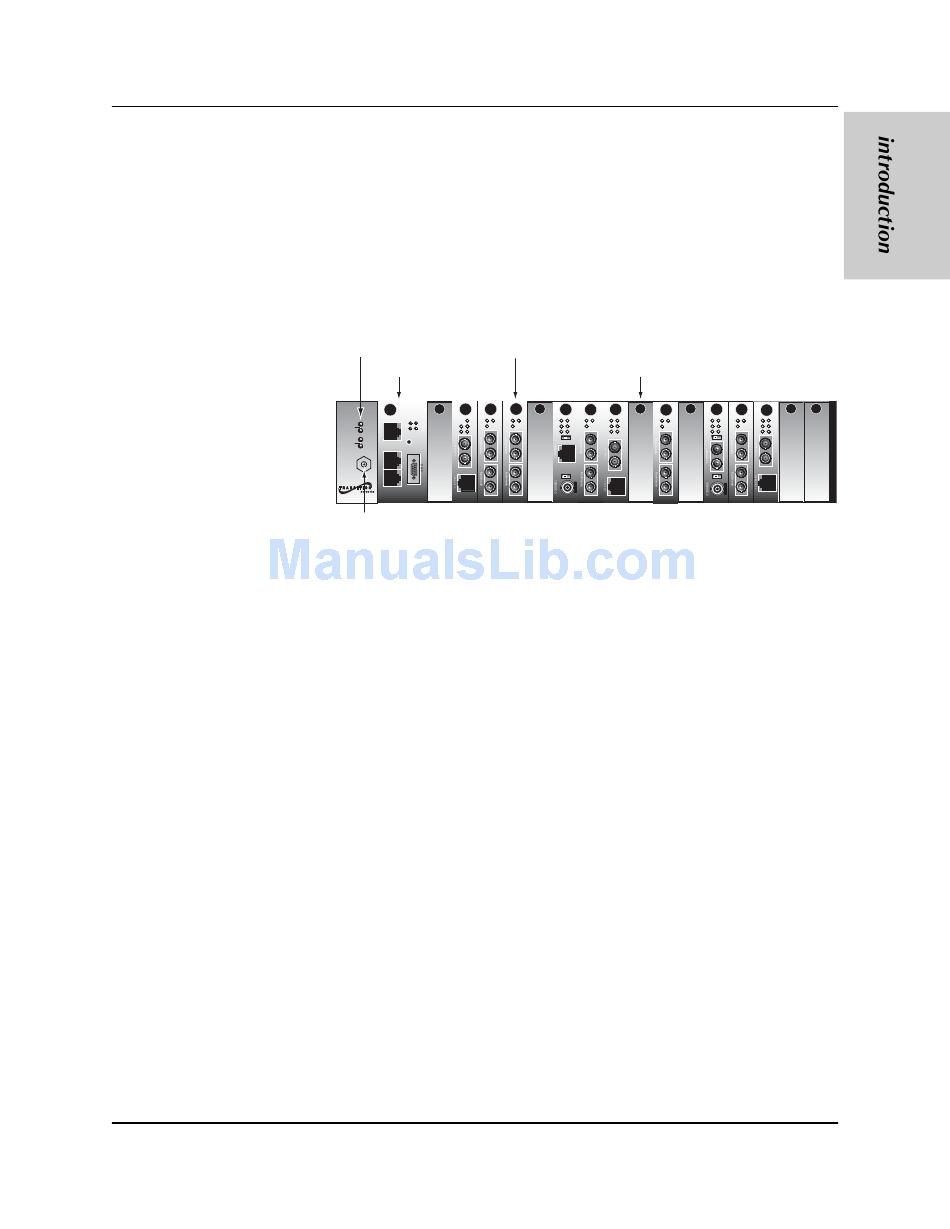

CPSMC18xx-xxx PointSystem™ Chassis
Open Slot
PWR PWR PWR
PWR
LA LKS SPD PWR LKS
LNK
RXF LKM FRX FLNK LKM
RXC COL CRX CLNK
TX TX
Link Alert
E D
TX
RX RX
TX TX
RX
50½
0
RX RX
CECF100 CFMFF100 CFMFF100
CFETF110
PWR
PWR
LA LKS SPD PWR
LNK
RXF LKM FRX FLNK
RXC COL CRX CLNK
TX
Link Alert
E D TX
RX
RX
TX
50½
0
RX
CETCF100
CFMFF100 CFETF100
5
