option provides the means to power the chassis from two independent power supplies.
Part Number
Description
CPSMC0200-221
Dual-Slot Point System chassis with two power supplies (one
grounded and one ungrounded). The chassis provides Last Gasp
trap generation.
CPSMC0200-226
Dual-Slot Point System chassis with two power supplies (one
grounded and one ungrounded).
Optional Accessories (sold separately)
Part Number
Description
SPS-1872-SA
Optional External Power Supply; 18-60VDC Stand-Alone
Output: 12.6VDC, 1.0 A
WMBP
Optional Wall Mount Bracket; Length: 5.0 in.
WMBV
Optional Vertical Mount Bracket: 5.0 in.
WMBD
Optional DIN Rail Mount Bracket: 5.0 in.
User's Guide
CPSMC0200-22x
Dual-Slot PointSystem™ Chassis
The Transition Networks CPSMC0200-
22x series dual-slot PointSystem™
chassis is designed for installation of
two selectable Transition Networks
PointSystem™ media converter slide-
in-modules. The redundant power
(127 mm)
(127 mm)
(127 mm)
Installation . . . . . . . . . . . . . . . . . .2
Technical Specifications . . . . . . . .4
Troubleshooting . . . . . . . . . . . . . .5
Compliance Information . . . . . . . .6
Contact Us . . . . . . . . . . . . . . . . . .7
Advertisement
Table of Contents
Related Manuals for Transition Networks PointSystem CPSMC0200-221
Summary of Contents for Transition Networks PointSystem CPSMC0200-221

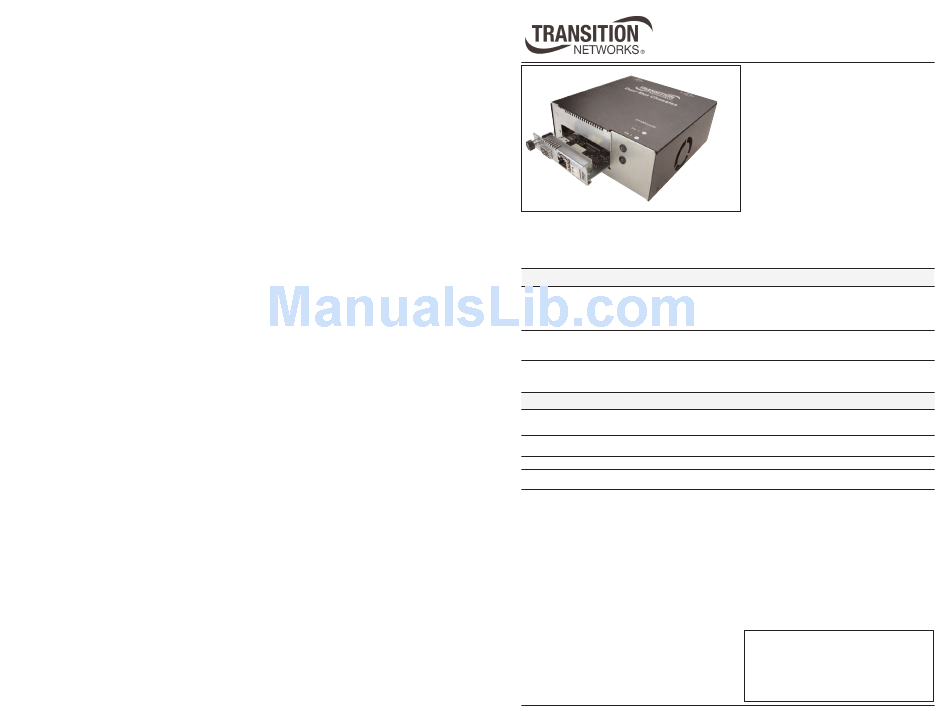

- Page 1 The redundant power option provides the means to power the chassis from two independent power supplies. Part Number Description CPSMC0200-221 Dual-Slot Point System chassis with two power supplies (one grounded and one ungrounded). The chassis provides Last Gasp trap generation.
-
Page 2: Installation
SPS1872-SA user manual at Transition Networks.com. Last Gasp Option (CPSMC0200-221 models only) The CPSMC0200-221 models feature the Last Gasp option, which enables the device to send an SNMP trap in the event of a power failure, alerting the management console that the device has failed. -
Page 3: Technical Specifications
CPSMC0200-22x Installation -- Continued Grounding the Media Converter The dual-slot chassis comes equipped with grounding lugs located on the back panel. They require a grounding conductor wire terminated with a two-hole, compression- type, grounding connector. The grounding wire -- which must be a copper conductor - - is not included with the chassis and must be provided by the customer/installer. -
Page 4: Troubleshooting
Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: CPSMC0200-22x Serues Dual-Slot PointSystem™ Chassis Part Numbers: CPSMC0200-221, CPSMC0200-226 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CPSMC0200-2x0 to which this declaration refers is in conformity with the following standards: EN 55022:1998 Class A & B; FCC... -
Page 5: Compliance Information
Compliance Information CISPR/EN55022 Class A & B CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A & B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
