Summary of Contents for Transition Networks POINTSYSTEM CPSMC0800-100

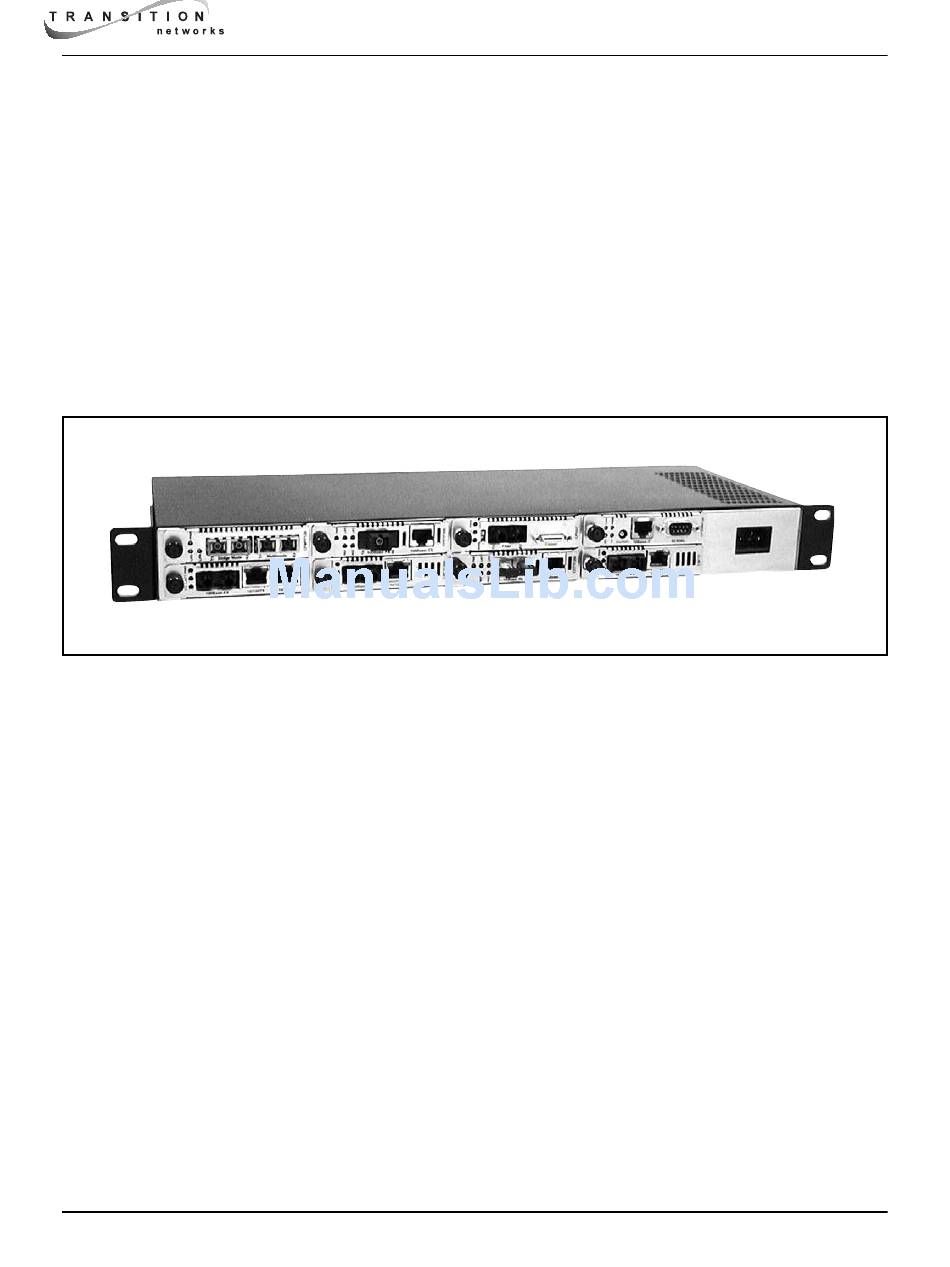

- Page 1 Transition Networks CPSMC08xx-100 8-Slot PointSystem™ Chassis User’s Guide revision B CPSMC0800-100 AC-powered CPSMC0810-100 DC-powered...
-
Page 2: Compliance Information
© 2003 - 2004 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means – graphic, electronic, or mechanical – without written permission from Transition Networks. Printed in the U.S.A. -
Page 3: Table Of Contents
Table of Contents Introduction ........4 Description . -
Page 4: Introduction
Introduction Description The Transition Networks PointSystem™ CPSMC08xx-100 is a 19-inch, rack- mountable chassis for selected Transition Networks media converter slide-in- modules. The chassis allows the network administrator to connect various copper and fiber-optic network media over protocols that include Ethernet, Fast Ethernet, DS3/E3, and OC-12. -
Page 5: Unpacking The Cpsmc08Xx-100 Equipment
Unpacking the CPSMC08xx-100 Equipment Use the following list to verify the shipment: Item 8-Slot chassis with AC power supply 8-Slot chassis with DC power supply PointSystem™ chassis face plates (5) Power Cord FocalPoint™ Software Disk (included with the management modules) User’s Guide The following items are optional accessories for the CPSMC08xx-100 8-slot PointSystem™... -
Page 6: Slide-In-Modules
Slide-in-Modules Media Converter Slide-in-Modules Transition Networks media converter slide-in-modules, installed in slots at the front of the chassis, allow the network administrator to connect various copper and fiber- optic network media over protocols that include Ethernet, Fast Ethernet, DS3/E3, and OC-12 as well as many others (see www.transition.com for a complete listing.) NOTE: Refer to the user’s guide that comes with each media converter slide-in-... -
Page 7: Installing Media Converter Slide-In-Modules
2.1.3 Installing the Media Converter Slide-in-Modules CAUTION: precautions when installing the media converter slide-in-module(s) into the chassis. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter slide-in-module(s). NOTE: The media converter slide-in-modules can be installed in any installation slot, in any order. -
Page 8: Replacing Media Converter Slide-In-Modules
2.2.4 Replacing the Media Converter Slide-in-Modules CAUTION: Wear a grounding device and observe electrostatic discharge precautions when replacing media converter slide-in-module(s). Failure to observe this caution could result in damage to, and subsequent failure of, the media converter slide-in-module(s). NOTE: The media converter slide-in-modules can be hot-swapped. To replace a media converter slide-in-module: 1. -
Page 9: Management Modules
Management Modules Optional network management is provided by SNMP software embedded in Transition Networks PointSystem the CPSMC08xx-100 chassis. Transition Networks provides two such modules: • CPSMM-120 Single-Slot Master Management Module. • CPSMM-200 Dual-Slot Master Management Module. Along with an additional expansion module: •... -
Page 10: Installing The Management Modules
Failure to observe this caution could result in damage to, and subsequent failure of, the management module. NOTE: Transition Networks recommends installing the management module into the left-most installation slots to keep the management cables separate from the media converter cables. -
Page 11: Replacing The Management Modules
2.2.3 Replacing the Management Modules CAUTION: Wear a grounding device and observe electrostatic discharge precautions when replacing media converter slide-in-module(s). Failure to observe this caution could result in damage to, and subsequent failure of, the management module(s). NOTE: The management modules can be replaced while the chassis remains powered. -
Page 12: Powering The Cpsmc08Xx-100
Powering the CPSMC08xx-100 The CPSMC08xx-100 chassis can be powered through an AC or DC power supply. An optional auxiliary power supply, with instant fail over protection, is also available. NOTE: The CPSMC08xx-100 chassis does not have an ON/OFF switch. • Power up the chassis by connecting the power supply. -
Page 13: Dc Power Supply
3.1.2 DC Power Supply • This product is intended to be used in a restricted access location. Proper earthing (grounding) is required to ensure safe operation. Grounding terminals are provided (section 4.1.3) for proper grounding of the device as per customer installation requirements and local electrical codes. -
Page 14: Auxiliary Power Supply
(Both and AC and a DC external power converter are available from Transition Networks.) Instant Fail Over Protection The CPSMC08xx-100 has instant fail over protection when both the primary and auxiliary power supplies are connected to external power sources. -
Page 15: Dc Auxiliary Power Supply
3.2.2 DC Auxiliary Power Supply • This product is intended to be used in a restricted access location. Proper earthing (grounding) is required to ensure safe operation. Grounding terminals are provided (section 4.1.3) for proper grounding of the device as per customer installation requirements and local electrical codes. -
Page 16: Table-Top Installation
CPSMC08xx-100 Chassis Installing the CPSMC08xx-100 Chassis The CPSMC08xx-100 can be installed in a standard 19-inch rack or on a table, shelf, or other stable surface. CAUTION: Install the chassis so that the air flow around it is not restricted. 4.1.1 Table-Top Installation The CPSMC08xx-100 chassis is shipped with nine (9) rubber feet for optional installation on a table or other flat, stable surface in a well-ventilated area. - Page 17 To install the CPSMC08xx-100 chassis into a standard 19-inch rack: 1. Determine the preferred alignment of the chassis in the rack. NOTE: Installation bracket mounting screws are provided. Rack mount screws and clip nuts are NOT provided. 2. Locate six (6) installation bracket mounting screws (provided) for each chassis to be installed.
-
Page 18: Grounding Lugs
4.1.3 Grounding Lugs The CPSMC08xx-100 comes equipped with grounding lugs, which are provided for a grounding conductor wire terminated with a two-hole, compression-type, grounding connector. The grounding wire -- which must be a copper conductor -- is not included with the chassis and must be provided by the customer/installer. The electrical conducting path from the chassis must: •... -
Page 19: Cascade Option
Cascade Option The management module cascade option allows the network administrator to connect up to eight (8) CPSMC08xx-100 chassis into one manageable stack, providing a single management source for up to 55 installed media converter devices. To create the cascade option, the CPSMM-200 Dual Slot Master Management Module is installed in the first chassis in the series. - Page 20 To cascade two or more CPSMC08xx-100 chassis: 1. Locate one (1) Transition Networks management module cascade cable (with RJ-45 connectors installed at both ends) (P/N 6026) for each set of two (2) chassis to be cascaded. NOTE: Transition Networks management module cascade cables are one (1) meter long.
-
Page 21: Connecting The Slide-In-Modules To The Network
Connecting the Slide-in-Modules to the Network Once the CPSMC08xx-100 chassis has been installed, the media converter slide-in- modules may be connected to the network. CAUTION: Connect input/output network cables ONLY to media converter slide- in-module connectors within the same network protocol (such as Ethernet-to- Ethernet, Fast Ethernet-to-Fast Ethernet, ATM-to-ATM). -
Page 22: Network Management
CPSMC08xx-100 chassis from an attached terminal or from a remote, networked computer. The firmware includes the Transition Networks Command Line Interface (CLI), a telnet server, a Web browser, and an SNMP (Simple Network Management Protocol) agent. - Page 23 CPSMC08xx-100 chassis via a remote Network Management Station (NMS) in one of two ways: 1. Using the Transition Networks FocalPoint™ graphical user interface. 2. Using a remote Telnet connection. Use an RJ-45 network cable to attach a terminal (via a network hub or switch) to the RJ-45 Ethernet port on the management module as shown.
-
Page 24: Troubleshooting
Troubleshooting 1. Are ANY of the POWER LEDs on any of the slide-in-modules illuminated; AND/OR are the fans operating? • The chassis is receiving power. Proceed to the next step. • Ensure all power supply cables for proper connection. • Ensure the AC receptacle on the wall is supplying power. -
Page 25: Technical Specifications
Technical Specifications For use with Transition Networks Model CPSMC08xx-100 or equivalent. Dimensions Shipping Weight AC Power Supply Power Input: Power Output: DC Power Supply Power Input: Power Output: MTBF (Mean Time Before Failure) without fans with three (3) fans Environment... -
Page 26: Cable Specifications
Cable Specifications Null Modem Cable The Null Modem Cable is used for connecting a terminal or terminal emulator to the management module’s DB-9 connector to access the command-line interface. The table below shows the pin assignments for the DB9 cable. Function Carrier Detect Receive Data... -
Page 27: Coax Cable
COAX Cable Coaxial cable media is used for circuits such as DS3, E1 and 10Base-2 Ethernet. The impedance of the coaxial cable is determined by the interface type, for example: • 75 ohm for DS3. • 50 ohm for 10Base-2 Ethernet. Special attention should be given to the grounding requirements of coaxial cable circuits. -
Page 28: Contact Us
1-800-260-1312 International: 00-1-952-941-7600 Transition Now Chat live via the Web with a Transition Networks Technical Support Specialist. Log onto www.transition.com and click the Transition Now link. Web-Based Seminars Transition Networks provides 12-16 seminars per month via live web-based training. Log onto www.transition.com and click the Learning Center link. -
Page 29: Warranty
The customer must pay for the non-compliant product(s) return transportation costs to Transition Networks for evaluation of said product(s) for repair or replacement. Transition Networks will pay for the shipping of the repaired or replaced in-warranty product(s) back to the customer (any and all customs charges, tariffs, or/and taxes are the customer's responsibility). - Page 30 Networks for a fee will carry a 180-day limited warranty. All warranty claims are subject to the restrictions and conventions set forth by this document. Transition Networks reserves the right to charge for all testing and shipping incurred, if after testing, a return is classified as "No Problem Found."...
